L-22X

An impressive design with a comfortable grip

Description

The L-22X is a welcome addition to our cabled scanners product range. The 2D image scanner has a modern design, scans at a speed of 100 fps and is designed to balance perfectly in your hand. As a result the scanner delivers a comfortable scan experience.

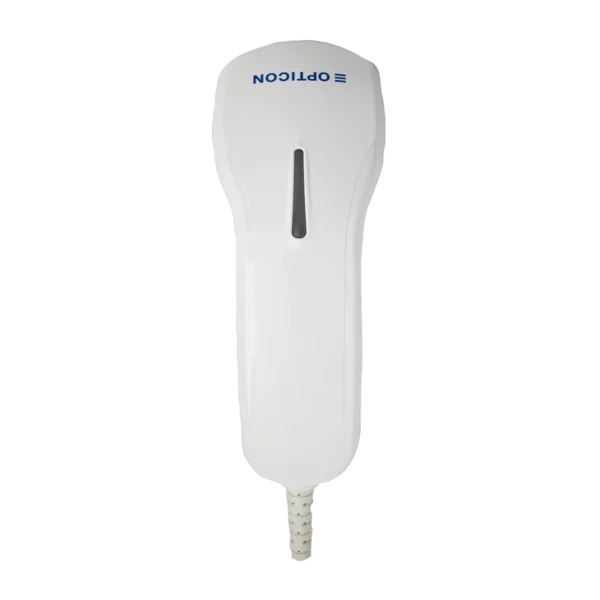

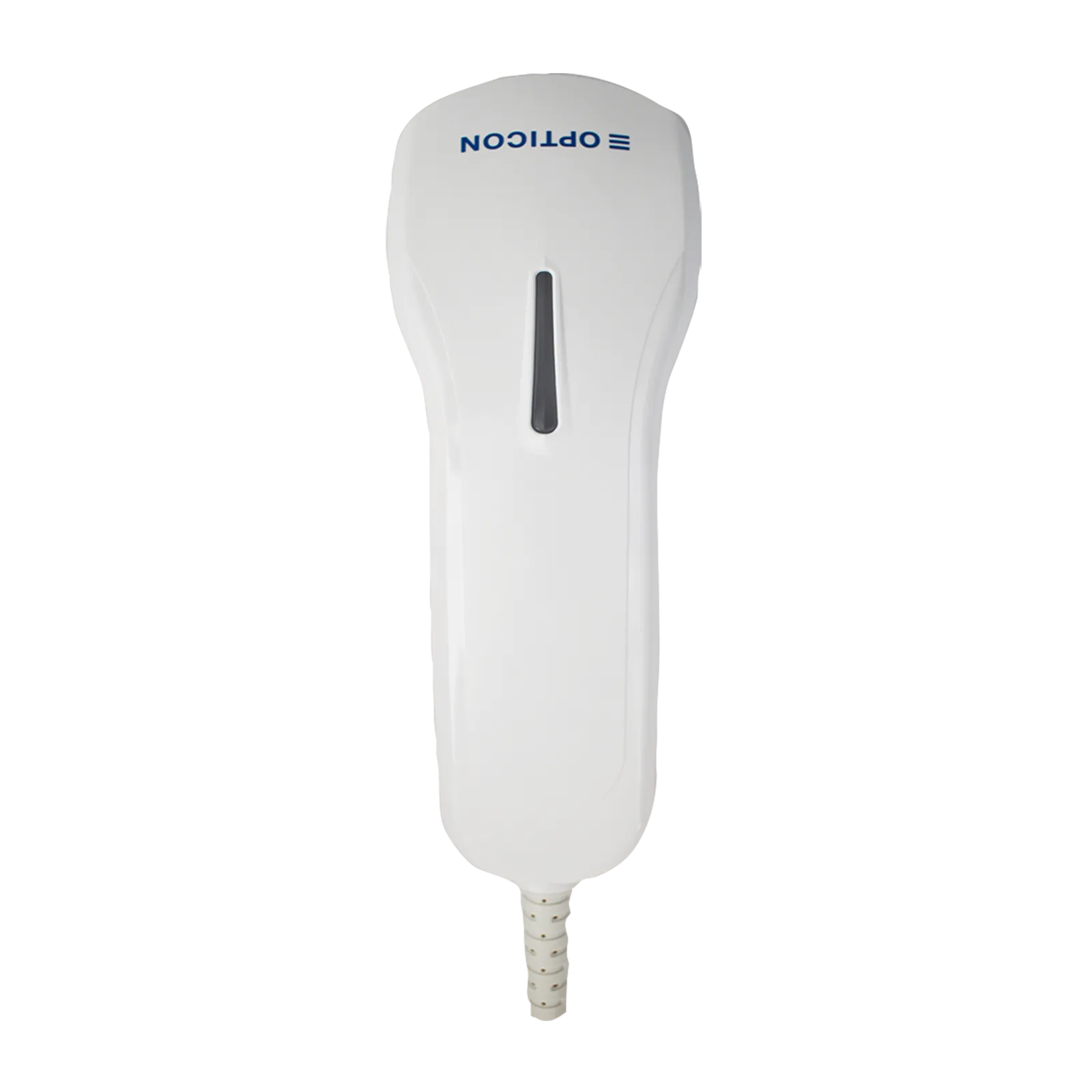

The L-22X is a fast 2D imager that scans at a fast speed of 100 fps. The scanner is lightweight and ergonomically designed so it balances perfectly in your hand. Furthermore, the cabled scanner comes with USB or RS-232 and in either black or white. The black or white combined with the sleek design will make sure that the scanner will look good on any counter or service desk.

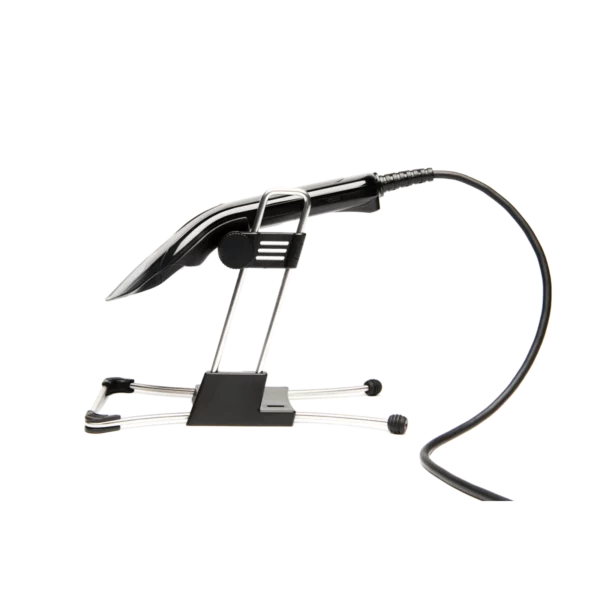

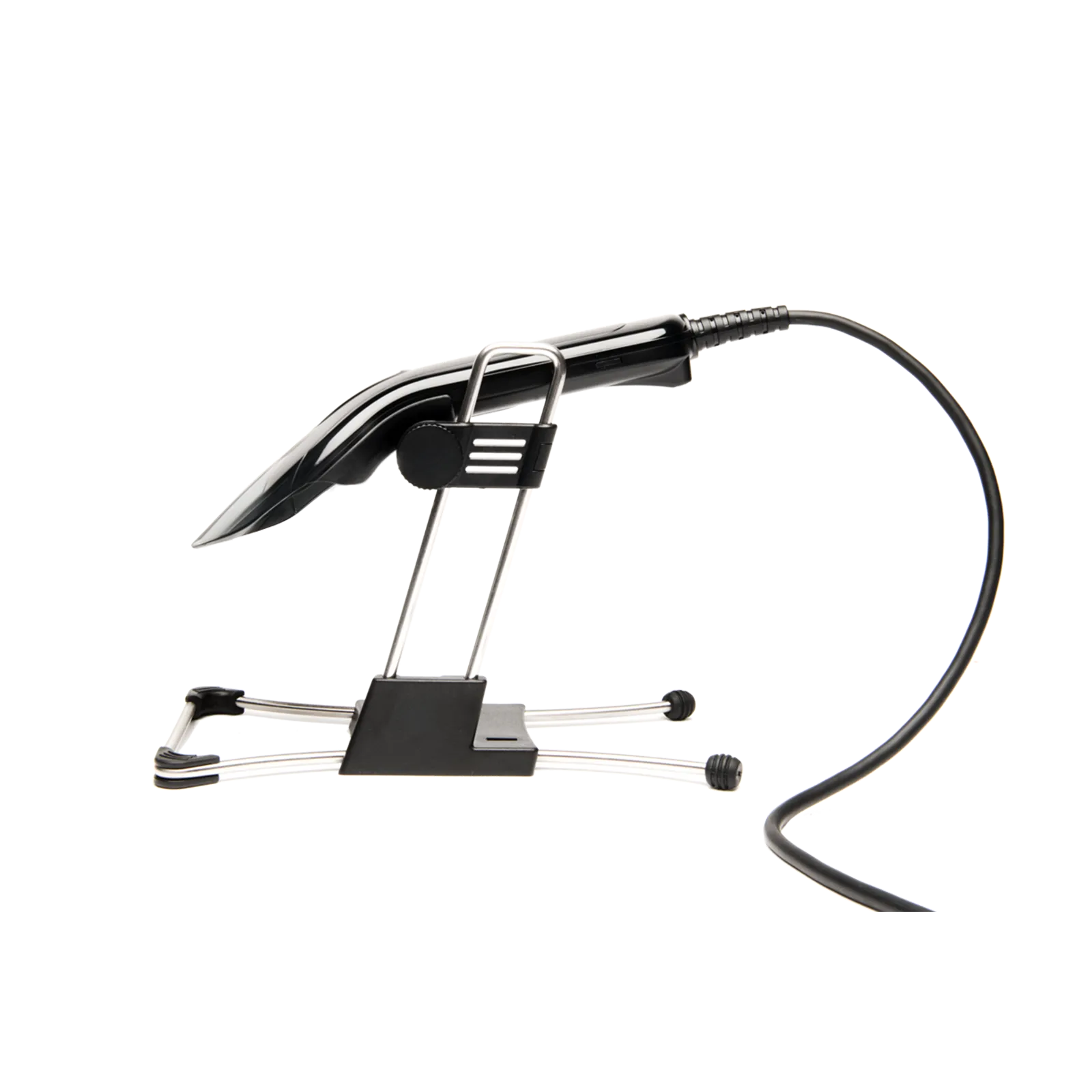

In addition, the device is delivered with a stand that activates the auto-trigger enabling hands free scanning action. Moreover the device is sealed up to IP 42 and is resistance to drop of 1.5 meters onto a concrete floor.

The L-22X should be your next cabled scanner and here is why:

  • 1D & 2D scanning at 100 fps
  • Ergonomic design
  • Auto trigger modus
  • Delivered with stand

The L-22X is a cabled scanner that scans both 1D and 2D at a fast speed. Therefore this scanner is very suitable for retail and service tasks, like a check-out counter or on a service desk. This scanner is also used in some postal appliances, warehouses and healthcare business processes.

Additional information

Form factor

Connection

Reading type

Communication interface

,

RS232

DB9 pin with external power supply

USB

ver. 2.0, HID/VCP, USB-A connector

Light source

Aiming green LED, warm white illumination LED

Scan method

CMOS area sensor, 640 x 480 pixels

Scan rate

Up to 100 fps

Drop test

1.8 m / 6 ft drop onto concrete surface

IP rating

Dimensions (WxHxD)

165.3 x 62.2 x 31.4 mm / 6.51 x 2.45 x 1.24 in

Dimensions stand (WxHxD)

98.9 x 130.5 x 173.8 mm / 3.89 x 5.14 x 6.84 in

Cable length

2.0 m

Weight body

Ca. 77 g / 2.7 oz (excl. cable)

Weight stand

Ca. 120 g / 4.2 oz (excl. cable)

Product compliance

CE, FCC, VCCI Class B, RoHS, IEC61000-4-2, EN55032, EN55024 (EN61000-6-1) Class B

Enclosed

Stand

Opticon L-22X Stand demo

The L-22X, a 2D image scanner that has a modern design, scans at a speed of 100 fps and is designed to balance perfectly in your hand. As a result, the scanner delivers a comfortable scan experience.



Watch the video to see how easy it is to set up the stand for the L-22.
