NLV-4001

CCD Linear USB or RS232 300 sps

Where to buy

Description

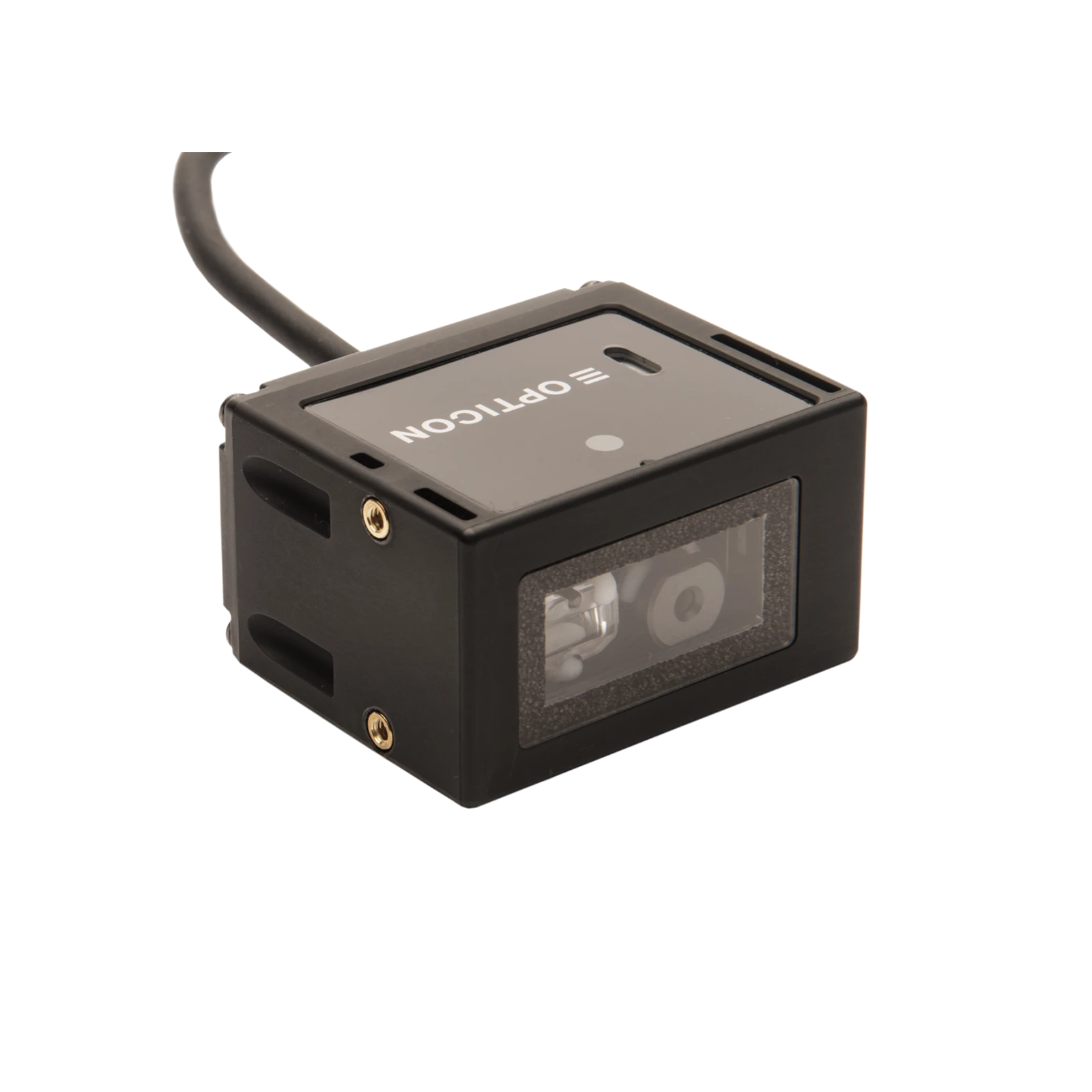

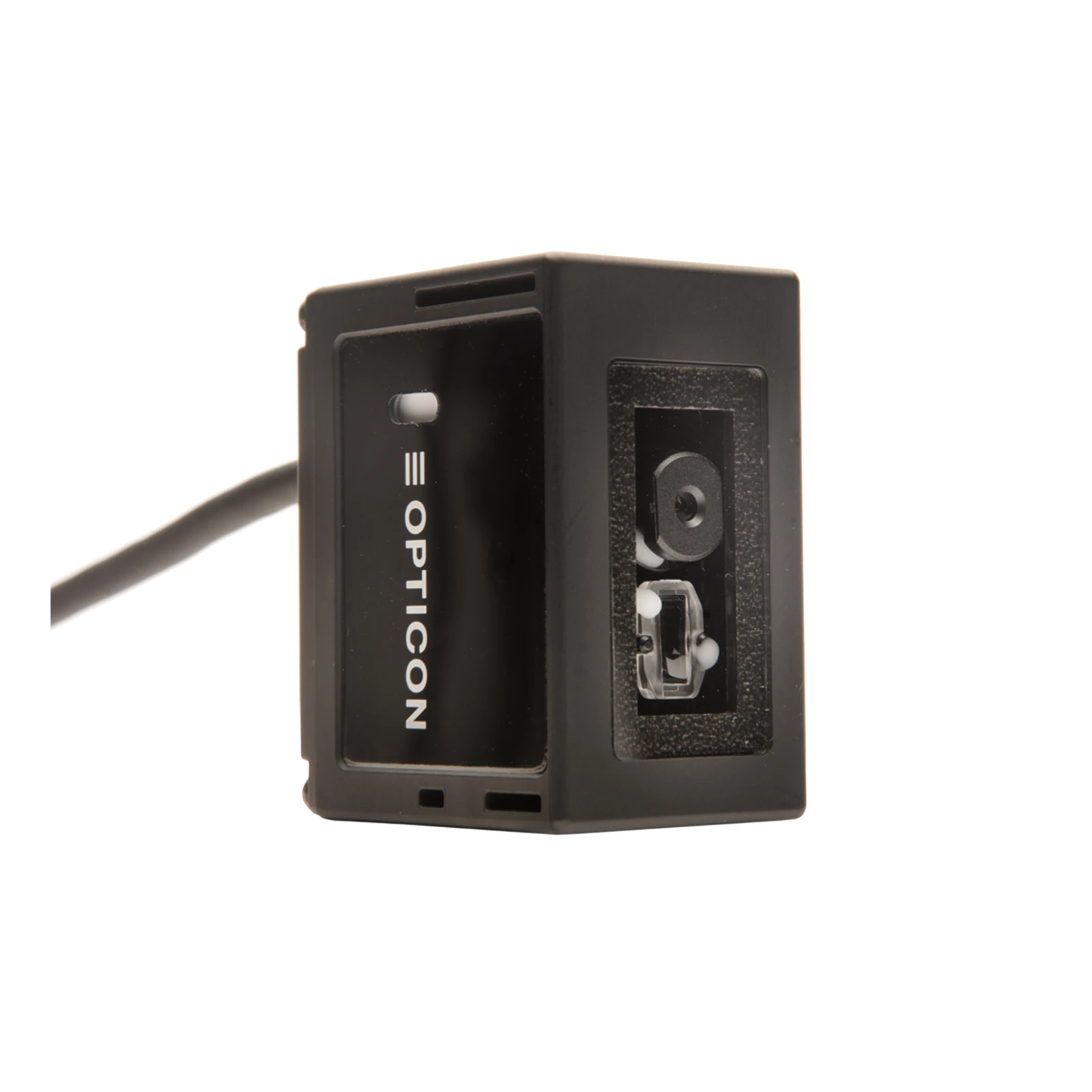

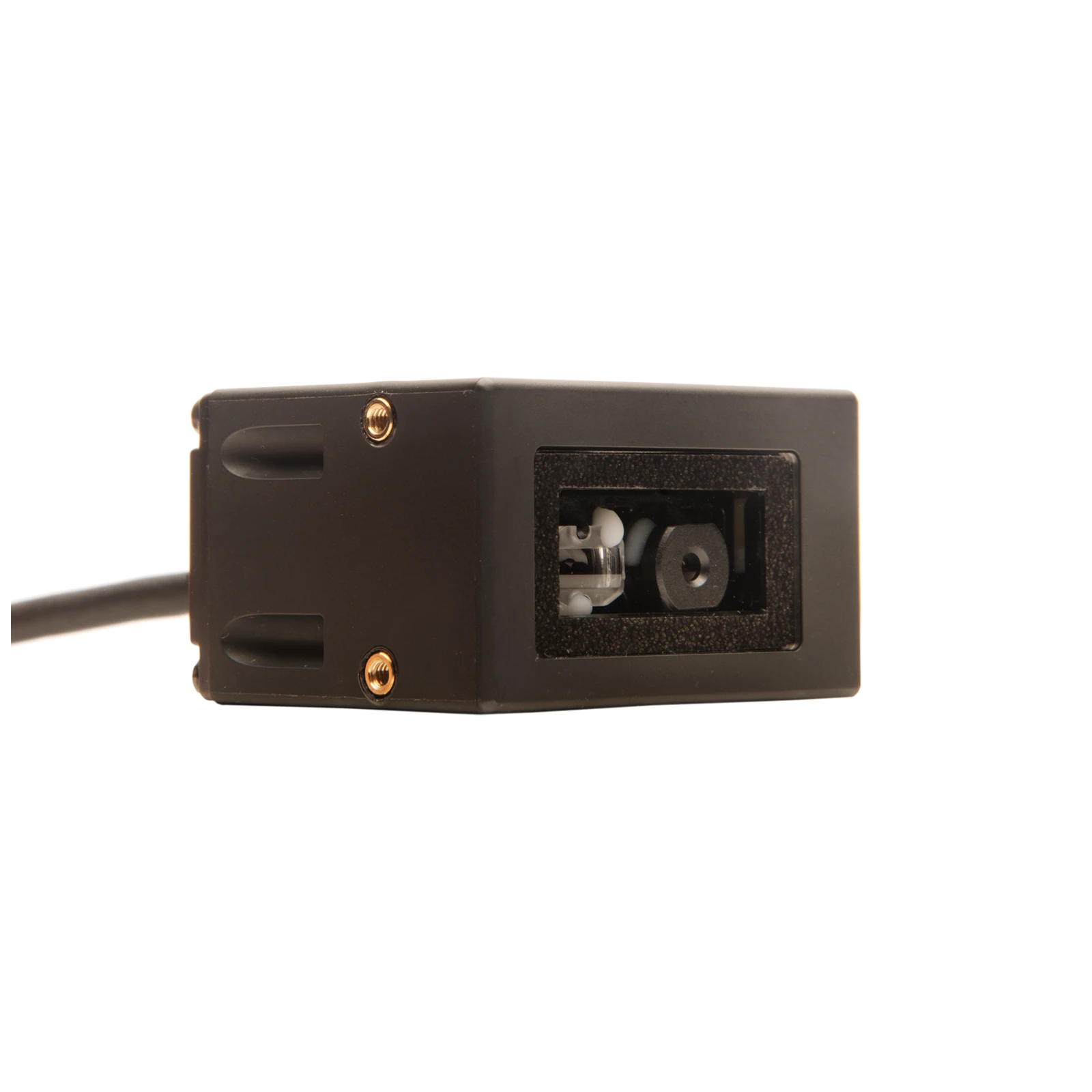

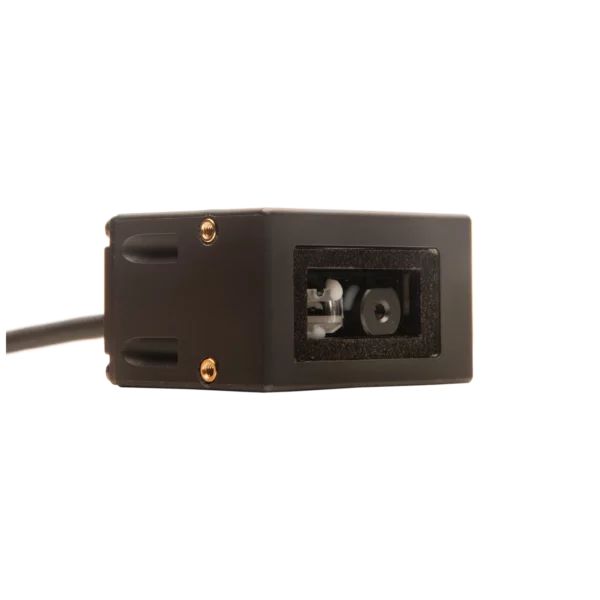

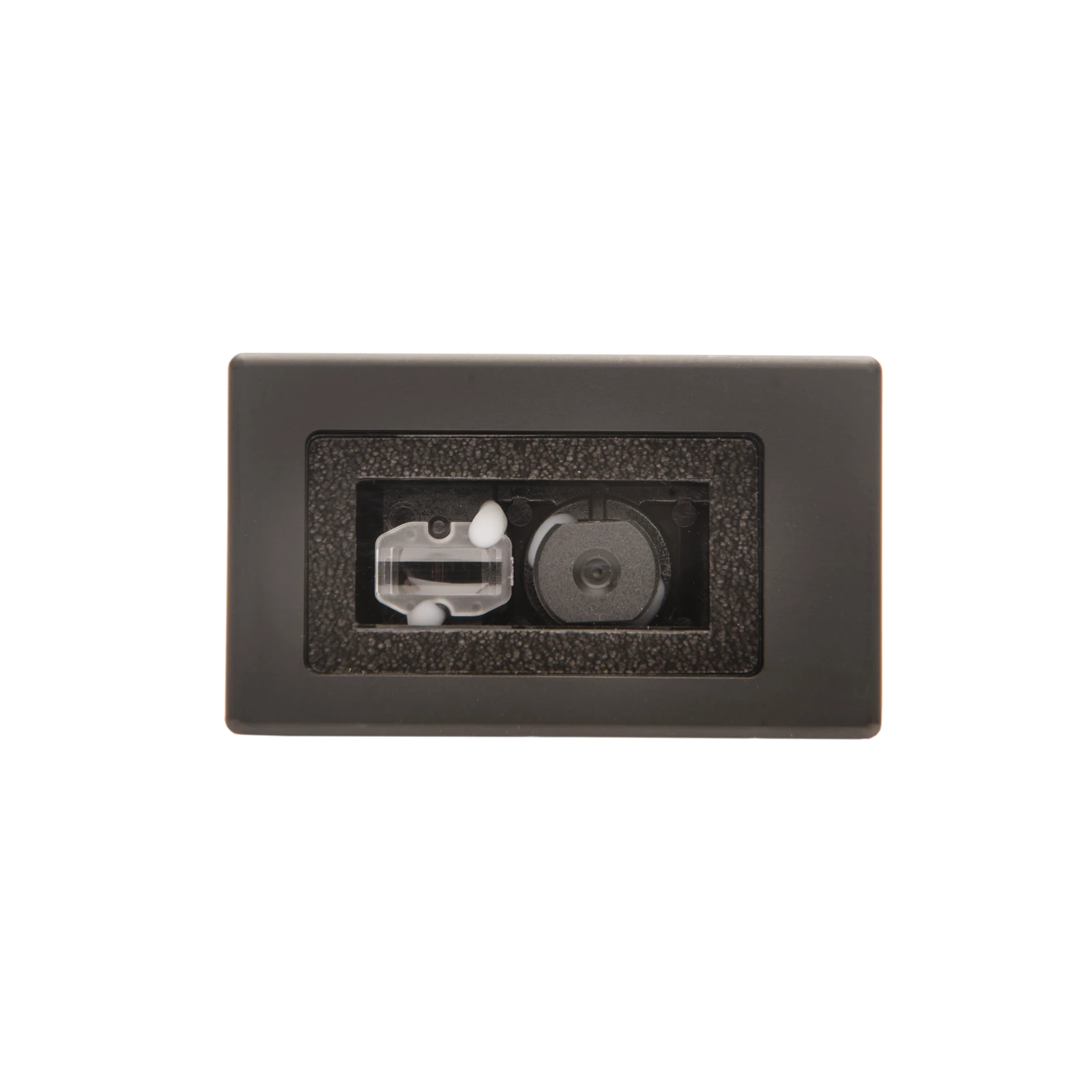

The NLV-4001 is our latest development in the NLV series. This small 1D CCD barcode scanner is easily integrated and scans at a fast speed. The fix position scanner is perfect for the most demanding applications and the scanner is also very resistant with an IP-65 rating.

Which product is right for me?

Not sure if this fixed mount scanner is the right product for me? Use our product selector.

Features of the NLV-4001

Some features why the NLV-4001 should be in your next ODM or OEM project:

  • Fixed mount CCD barcode scanner that’s reliable, durable and affordable
  • Enhanced decoding algorithms for ultra-fast (300 scans/second) barcode scanning
  • Single red LED aiming line helps to quickly find the appropriate scanning position
  • Reads 1D barcodes from LCD screens and mobile phones
  • Capable of scanning negative bar codes (white bars on black spaces)
  • Complete unit with integrated decoder
  • IP65 rating against dust and moisture
  • Communication interface: USB or RS232 (no connector)
  • Backed by a two year warranty

This fixed mount scanner is ideal in situations that require 1D scanning at a fast speed. Our existing customers use this scanner in retail P.O.S., self service solutions like a kiosk, parking lot ticket machines and in medical or pharmaceutical analysis machines.

Additional information

Form factor

Reading type

Communication interface

,

RS232

No connector

USB

VCP, HID, USB-A connector

Light source

624 nm visible red LED

Scan method

CCD linear

Scan rate

300 scans / second

Drop test

0.75 m / 2.5 ft drop onto concrete surface

IP rating

Electrostatic discharge protection

8 kV contact discharge / 15kV air discharge (non-destructive)

Dimensions (WxHxD)

41.1 x 24 x 33 mm / 1.62 x 0.94 x 1.3 in

Weight body

Ca. 50 g / 1.7 oz (incl. RS232C cable), Ca. 55 g / 1.86 oz (incl. USB cable)

Product compliance

CE, FCC, VCCI, RoHS, IEC62471, EN55022, EN55024, FCC Part 15 Subpart B Class B, EN61000-6-1
