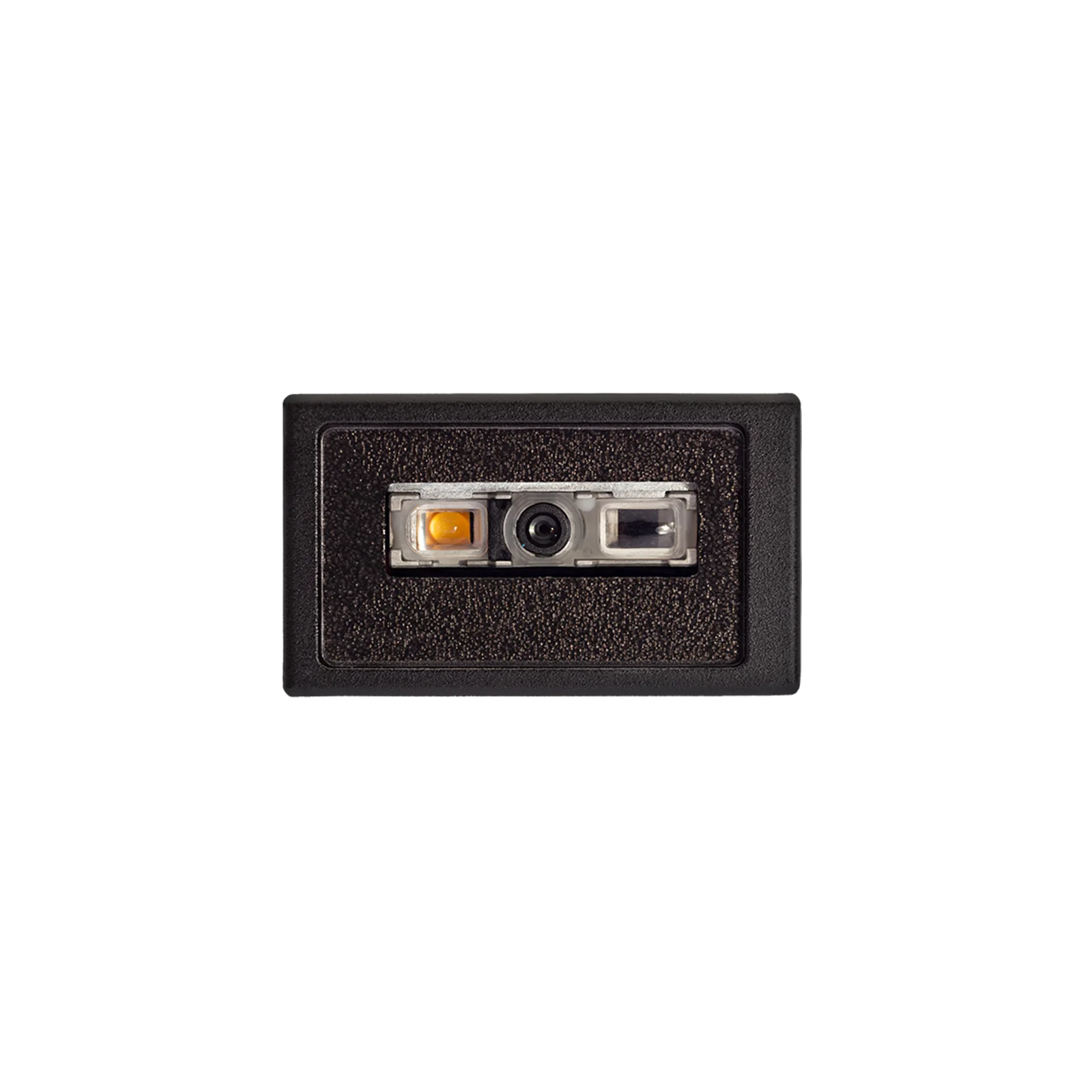

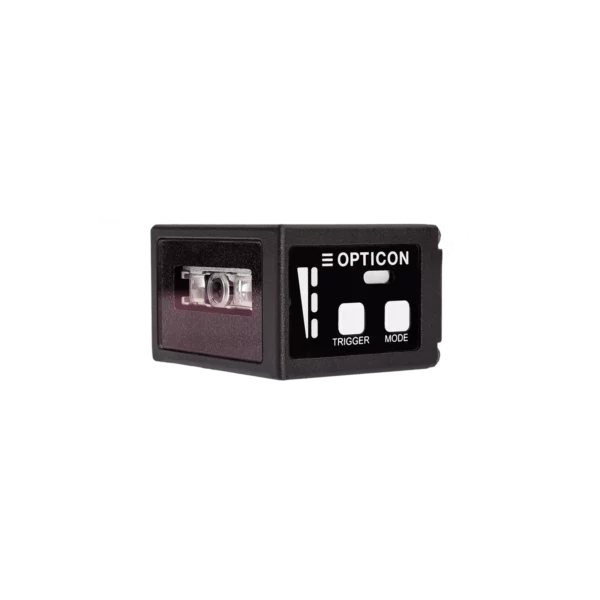

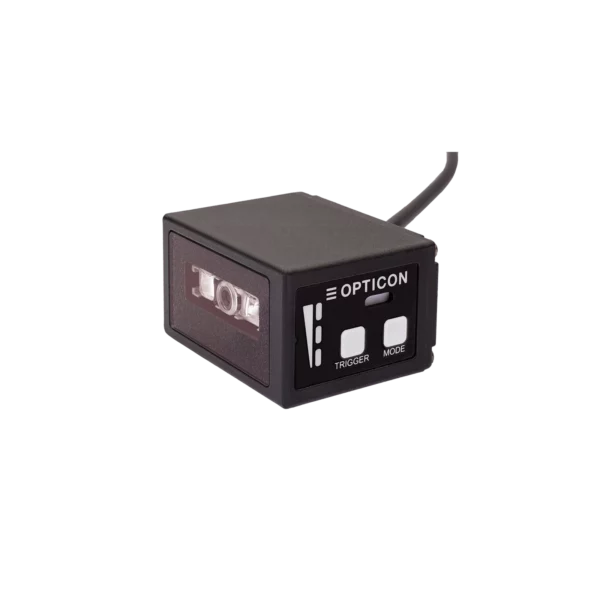

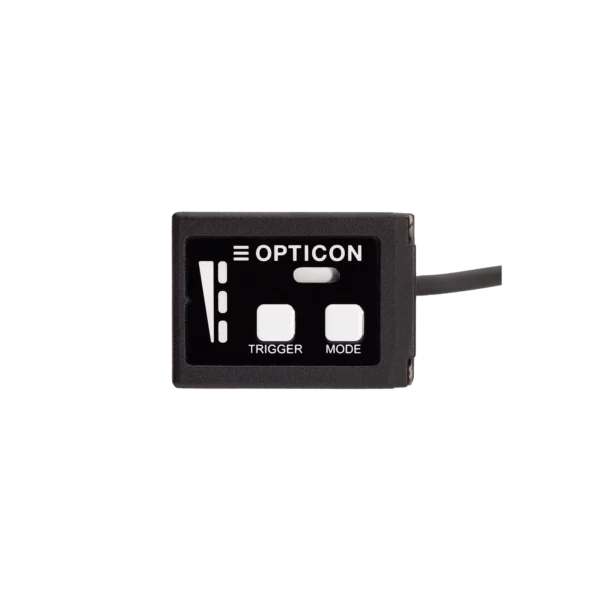

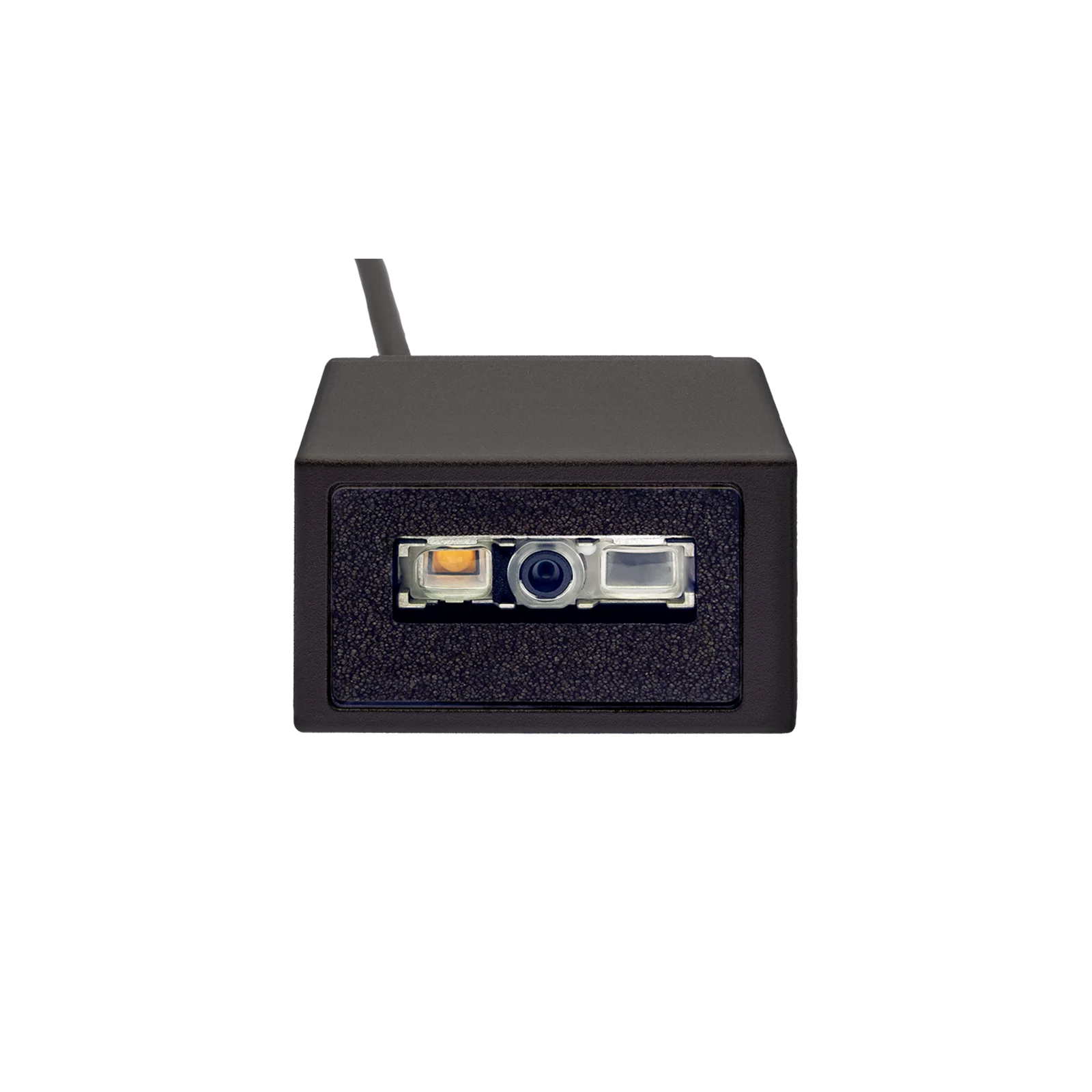

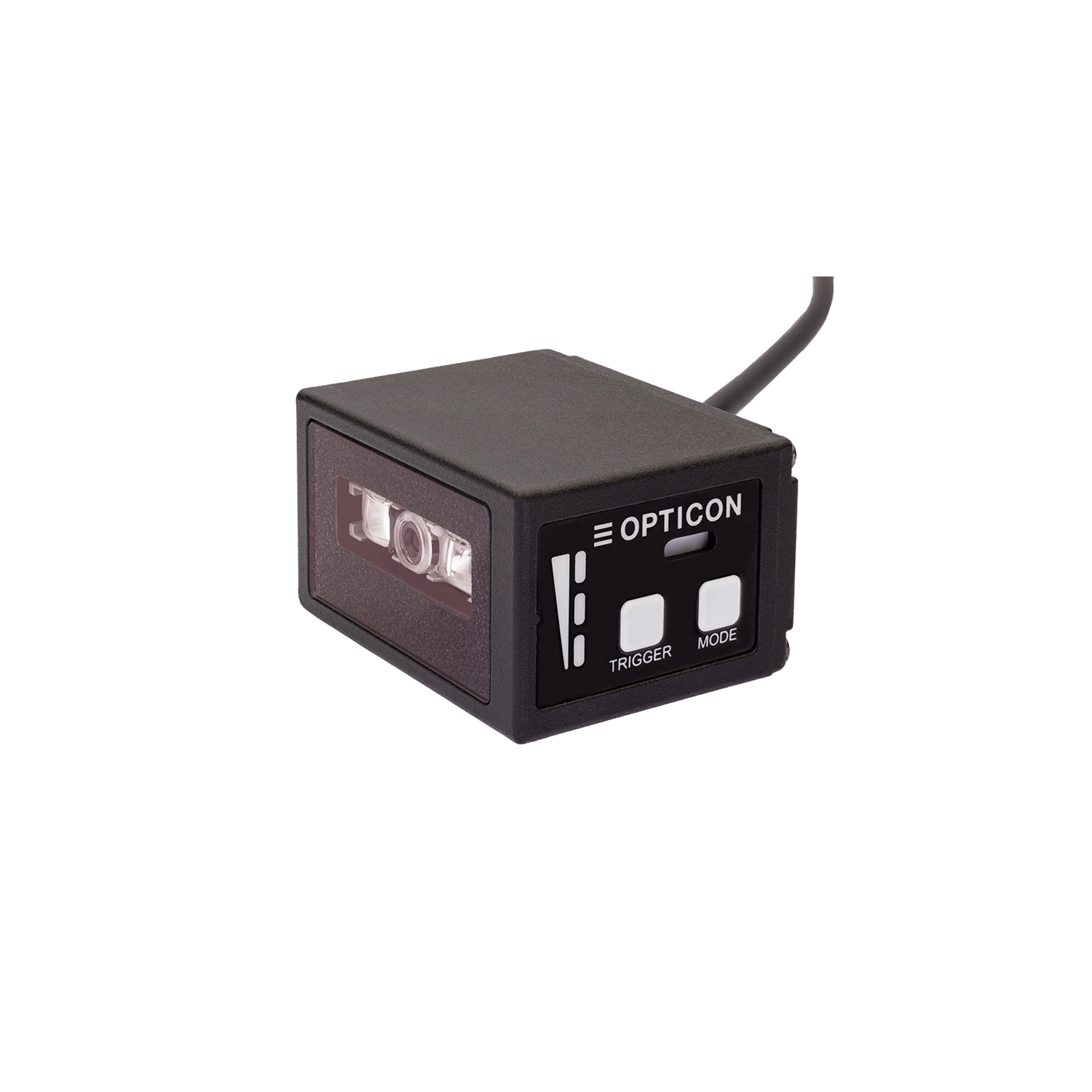

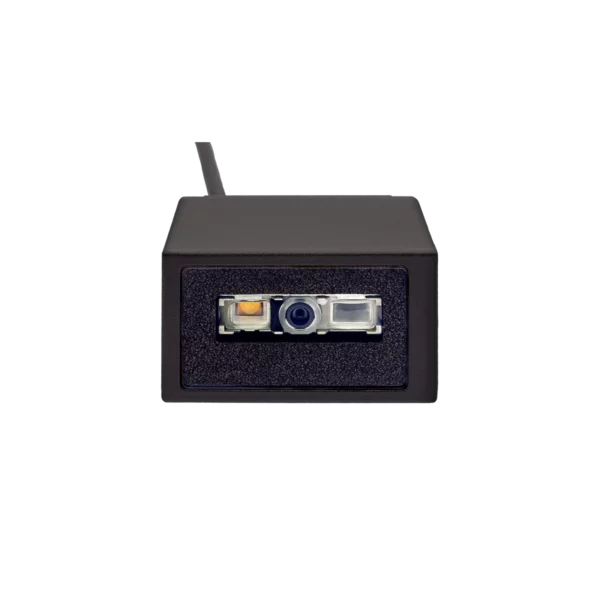

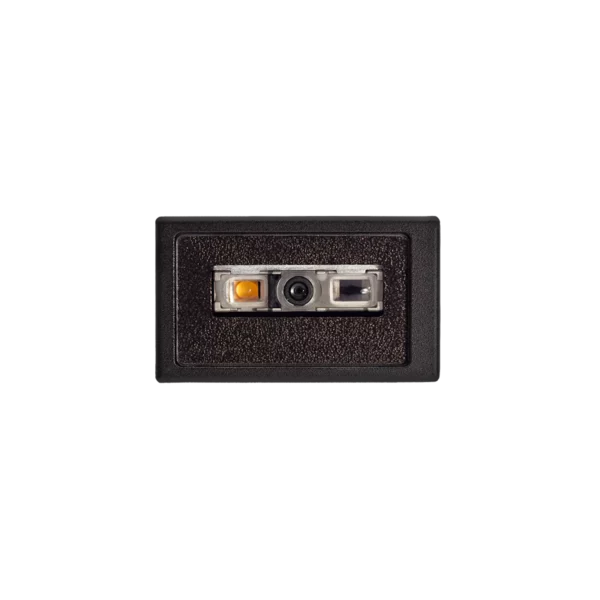

NLV-5201

2D Imager, USB and RS232, 100 fps

Description

The NLV-5201 is our latest development in the NLV series. This small 2D CMOS imager is easily integrated and scans at a fast rate no matter the density you require. Further the product comes in a standard range, high density and ultra high density version to fit your needs. The fixed position scanner is perfect for the most demanding applications and the scanner is also very resistant with an IP65 rating. The installed tuning function helps to easily program your settings by simply pressing the key. The 3-colors LED is a convenient assistant in this process.

Which product is right for me?

Not sure if this fixed mount scanner is the right product for me? Use our product selector.

Features of the NLV-5201

Some features why this fixed mount should be in your next ODM or OEM project:

  • 100 frames per second
  • Custom configuration capabilities
  • Improved scanning of curved, wide, poorly printed and damaged barcodes
  • Exceptional motion tolerance for moving applications
  • Green bar LED aim function providing laser-free aiming
  • Rugged; IP65

Also interested in our other engines? Click here!

This fixed mount scanner is ideal in situations that require 2D scanning at a fast speed. Stationary scanners are the easiest way to integrate a scanner component into your product or business application. The NLV-5201 performs excellent with moving objects, curved, wide, poorly printed and damaged barcodes. We often see our product used for access control, parking, ticketing and in manufacturing environment.

Additional information

Form factor

Reading type

Communication interface

,

Light source

aiming single green LED, warm white illumination LED

Scan method

CMOS area sensor, 640 x 480 pixels

Scan rate

up to 100 fps

Drop test

0.75 m / 2.5 ft drop onto concrete surface

IP rating

Vibration test

10 – 100 Hz with 2G for 60 min per cycle in each X, Y and Z direction

Electrostatic discharge protection

6 kV contact discharge / 15 kV air discharge (non-destructive)

Dimensions (WxHxD)

41.1 x 24.0 x 33.0 mm / 1.62 x 0.94 x 1.3 in

Weight body

Ca. 125 g / 4.2 oz (excl. cable)

Product compliance

CE, FCC Class B, VCCI Class B, RoHS, IEC 62471, EN55032 Class B, EN55024 Class B

Models

Lens type: SR-Standard Range (113 mm), HD-high density (63 mm), UHD-Ultra high density (43 mm)

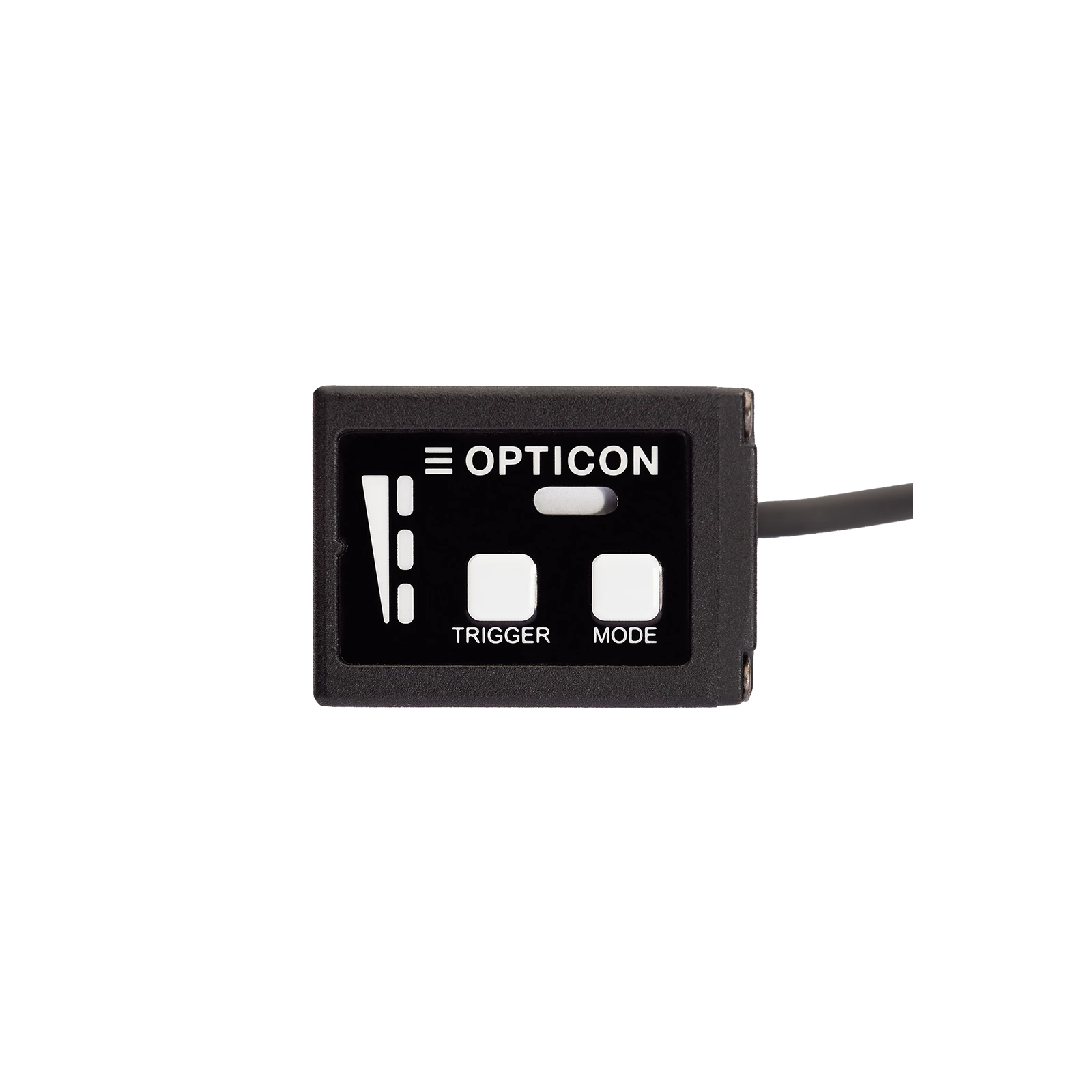

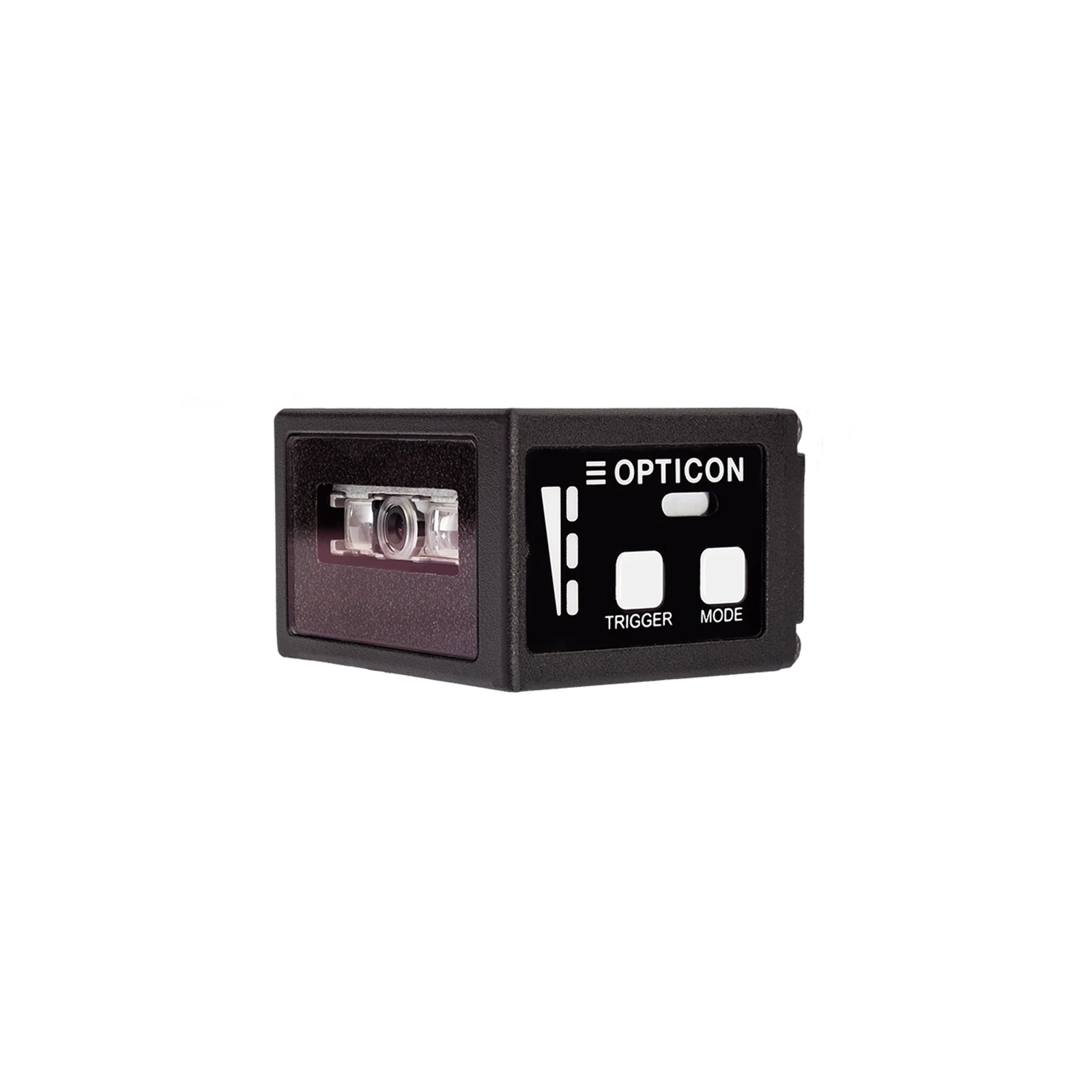

The Opticon NLV-5201 Fixed Mount Scanner

This small 2D Imager is easily integrated and scans at a fast speed. The fixed position scanner is perfect for the most demanding applications and the scanner is also very resistant with an IP65 rating.



This fixed mount scanner is ideal in situations that require 2D scanning at a fast speed. Stationary scanners are the easiest way to integrate a scanner component into your product or business application. The NLV-5201 performs excellent with moving objects, curved, wide, poorly printed, and damaged barcodes.
