OPI-3601

Comfortable grip and reliable

Where to buy

Description

The OPI-3601 is a versatile and reliable 2D handheld scanner that performs exactly how you want a scanner to perform. The high end technique inside assures barcode reading on almost  all surfaces, may it be phones, paper or poorly printed barcodes. You can rely on Opticon to deliver.

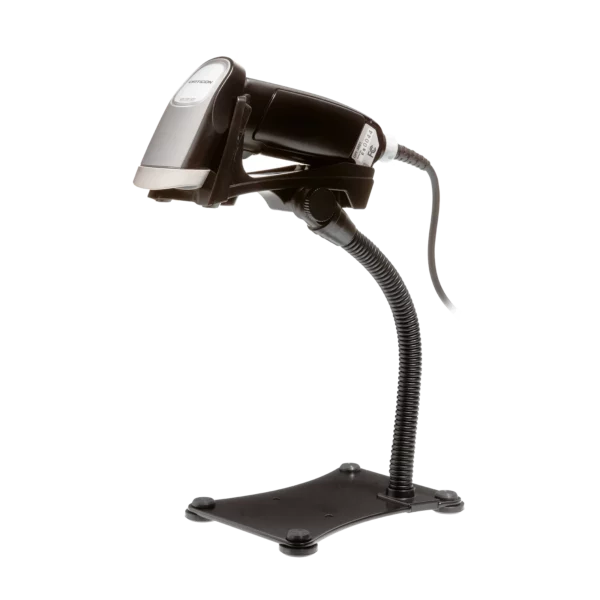

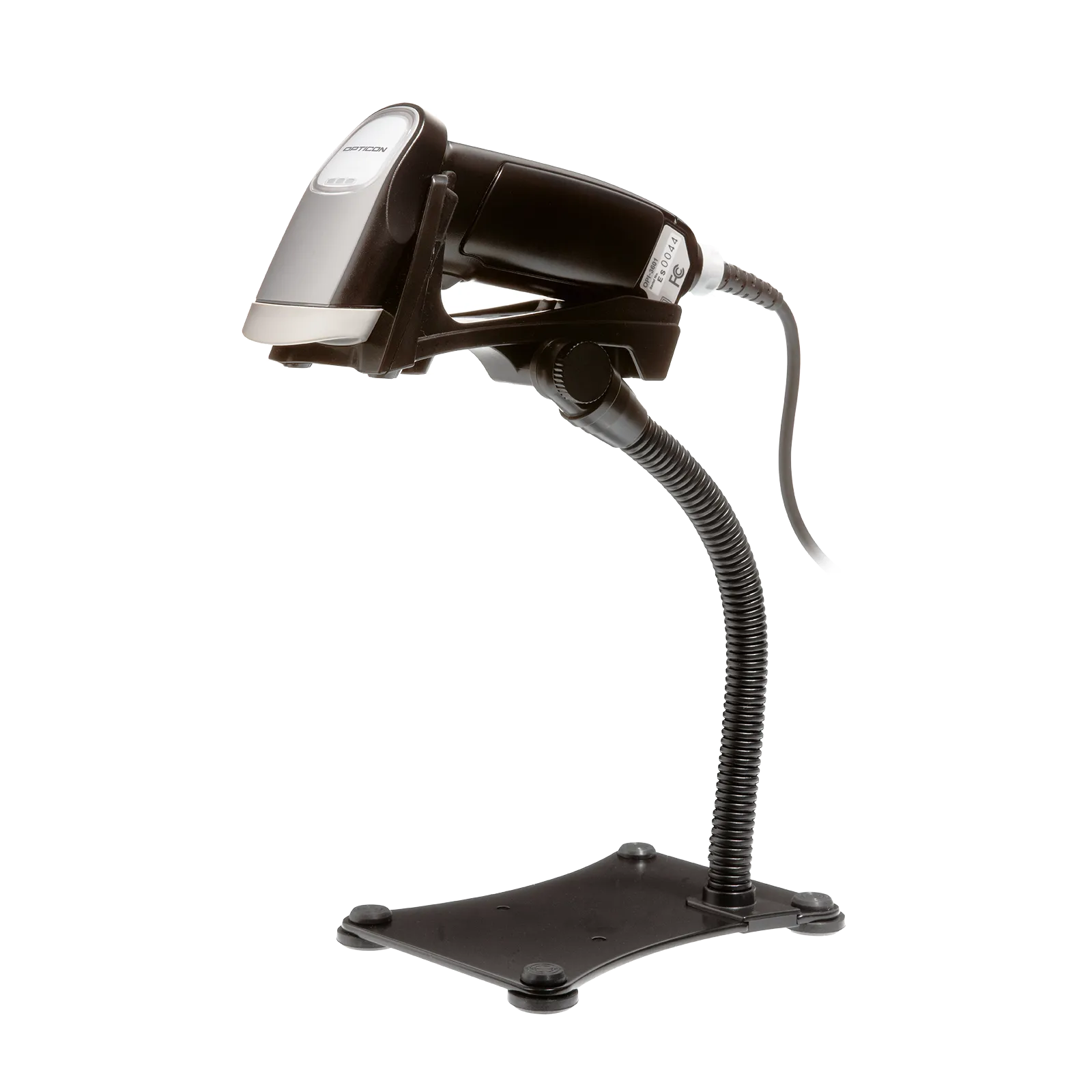

With a high quality 2D scanner, the pistol design and enhanced motion tolerance, the OPI-3601 proofs to be an excellent choice for anyone that is looking for a good handheld scanner.  the OPI-3601 allows faster scanning and the bright LED provides visual feedback making it easy to see the result of your scan action. The complete kit consists of not only the scanner but also the complementary stand and starter guide. With this stand the auto trigger is engaged, enabling hands free scanning for the user. Thirdly, the scanner can easily be plugged into the computer through the provided USB cable, it is plug and scan.

The handheld scanner does not require any technical know-how to set it up and the set-up only takes a few minutes, which makes the OPI-3601 a quick scanner that is reliable.

A few highlights why the OPI-3601 should be in your hands:

  • Auto-trigger option for hands free scanning.
  • 1D and 2D scanning
  • Lightweight
  • Plug and play

The OPI-3601 is often used in service settings; healthcare for wristband scanning, retail for scanning products and scanning e-tickets from mobile phones for loyalty programs. Due to stand, that complements the auto trigger, it is often used to scan without hands. Furthermore, the stand can be flexibly adjusted to the users desire.

Additional information

Form factor

Connection

Reading type

Communication interface

,

USB

Ver 2.0, HID/VCP, USB-A connector

RS232

DB9 connector with external power supply

Light source

Green aiming LED, red illumination LEDs

Scan method

CMOS area sensor, 752 x 480 pixels, gray scale

Scan rate

Up to 60 fps

Drop test

1.5 m / 5 ft drop onto concrete surface

IP rating

Dimension (WxHxD)

56 x 148.6 x 108.1 mm / 2.20 x 5.85 x 4.26 in

Dimensions stand (WxHxD)

106 x 296 x 146 mm / 4.17 x 11.65 x 5.75 in (excl. scanner)

Weight body

Ca. 85 g / 3 oz (excl. cable)

Weight stand

Ca. 323 g / 12 oz

Product compliance

CE, FCC, VCCI, RoHS, IEC62471-1, EN55022, EN55024

Get a Free Quick Scan

Let us help you identify the right solution. In a short session, we’ll dive into your specific business challenge and provide tailored advice to help you move forward. If a free test unit can support your decision, we’ll gladly explore the possibilities. Just fill out the form to get started!

Get started

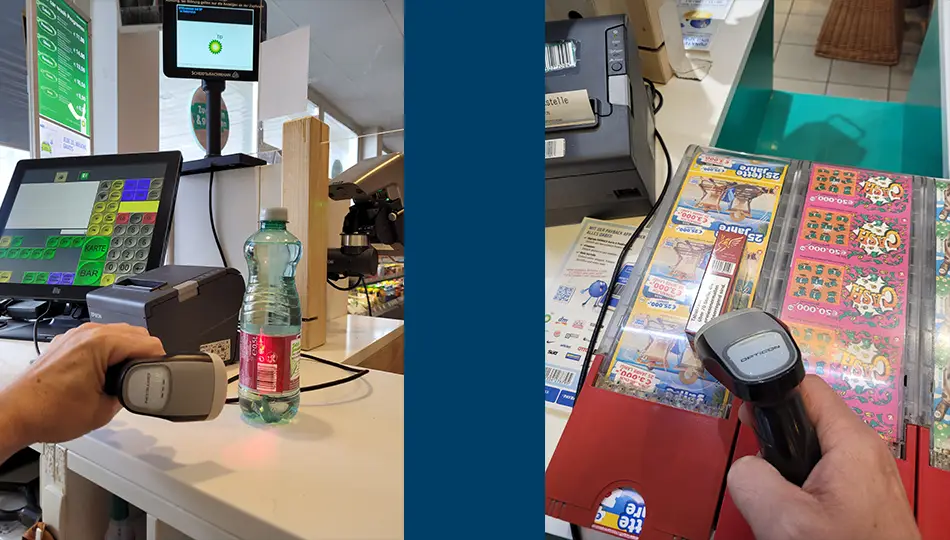

OPI-3601: Compact Design, Smart Performance, Proven at BP Austria

“With the introduction of the bp loyalty programme (customer card programme) at that time, a scanner that can read from the smartphone was necessary. Therefore, the corporate headquarters made an internal recommendation for the OPI-3601, which was then introduced at the Austrian stations.



Since the OPH-1005 was already in use for ongoing inventory work, especially at the end of the year and at bistro stations, the changeover to the checkout scanner was very easy. The OPI-3601 is particularly interesting for our stations because of its compact design, ergonomic handling and its ability to read both 1D and 2D barcodes – even from the customer’s smartphone display.”



Helmut Knauer – Operating Support Specialist
bp Europa SE Zweigniederlassung bp Austria
