OPN-4000

Compact lightweight companion scanner

Description

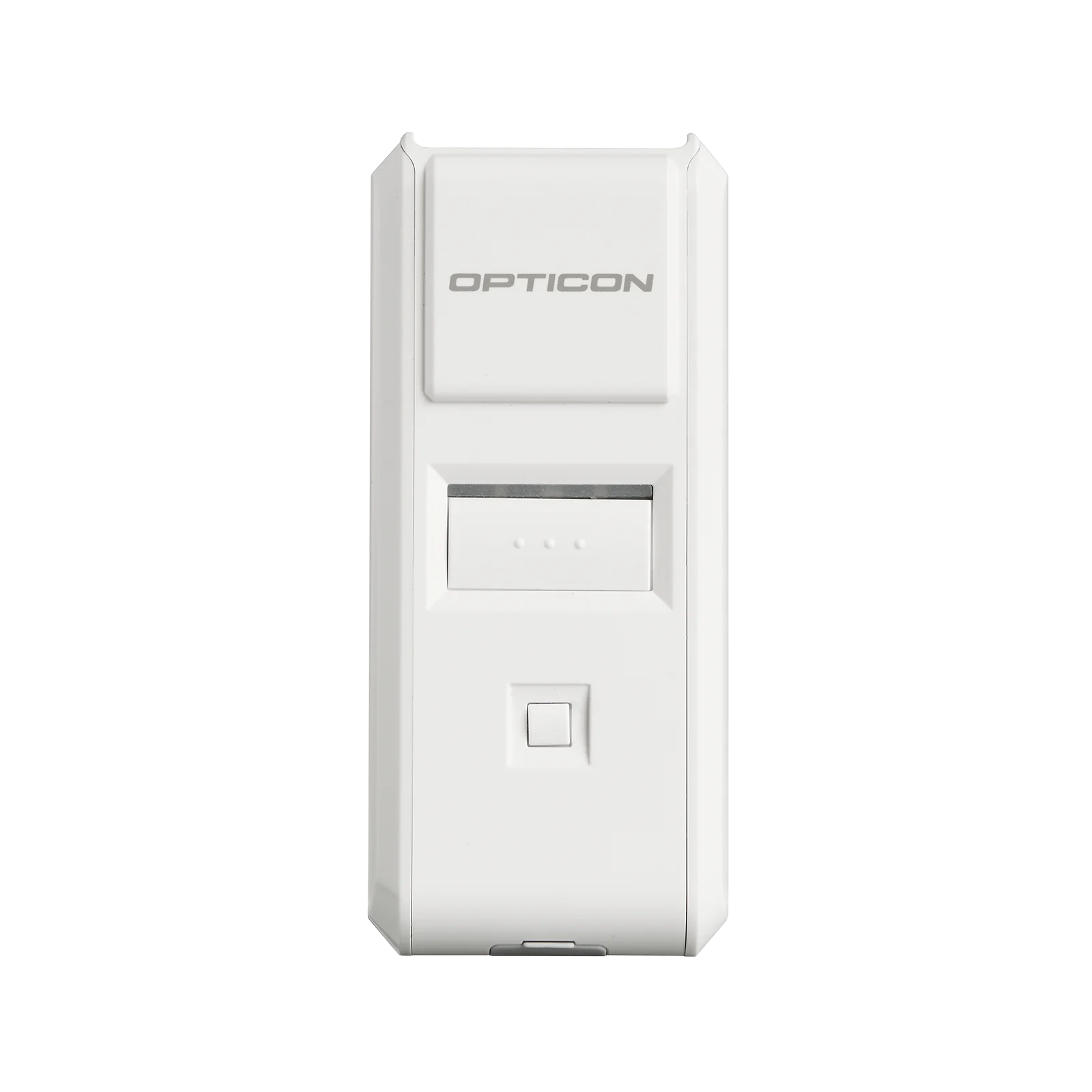

The OPN-4000 is a compact lightweight companion barcode scanner that is easy to take with you and can connect to other devices through Bluetooth. The clean white design and the compact dimensions make this product look and feel state of the art. And rightfully so, as the CCD engine is powerful and the data transfer is fast.

This device is a CCD scanner with a very intuitive interface, is lightweight, and fits in the palm of your hand. Bluetooth enables the device for real-time data transfer. The scanner comes in two versions: version I and version n. The n is purely the OPN-4000 in all its glory, the I is the OPN-4000 with a special addition; It is Apple MFi certified. This means that it can connect to Apple products like the iPhone, iPod, and iPad. When no Bluetooth connection can be made the OPN-4000 will store the data on the device until there is a connection again or when plugged in with a USB-cable.

Using the scanner is straightforward. No special training is needed as users only need to press a trigger key to operate and a reset key to control mistakes.

A few highlights why the OPN-4000 should be in your hands:

  • CCD scanning
  • Apple MFi certified
  • Bluetooth connection
  • Lightweight

The OPN-4000 enables organizations to integrate barcode scanning in their business process or service with a simple and to the point companion. Some of the uses include Sales and service, retail point-of-sale, inventory management, asset tracking, visitor registration, and inventory. Clearly a wide audience for such a versatile product.

Additional information

Form factor

Connection

Reading type

Communication interface

,

Bluetooth

Ver. 2.1, SPP, HID, 1 to 1 connection, master /
slave mode, authentication and encryption

USB

Mini USB

Light source

1 red LED

Scan method

CCD linear image sensor, 1500 pixels

Drop test

1.5 m / 5 ft drop onto concrete surface

IP rating

Dimensions (WxHxD)

36 x 83 x 21.5 mm / 1.42 x 3.27 x 0.85 in

Weight body

Ca. 53 g / 1.87 oz (incl. battery)

Enclosed

USB cable, Neck strap

Companion Barcode Scanners used for access control, inventory management and more

Our companion barcode scanners are designed to be intuitive and user-friendly. After a quick set-up, the companion scanner is ready to scan. The largest benefits of the companion scanners are the mobility factor and the ability to be paired with any device through Bluetooth. In this video, our area manager Harry Tönis, explains how the companion scanners work and where they are used.



Do you need some guidelines on how to use the firmware for the OPN series; watch this video https://youtu.be/4hMFrsu0mN0
