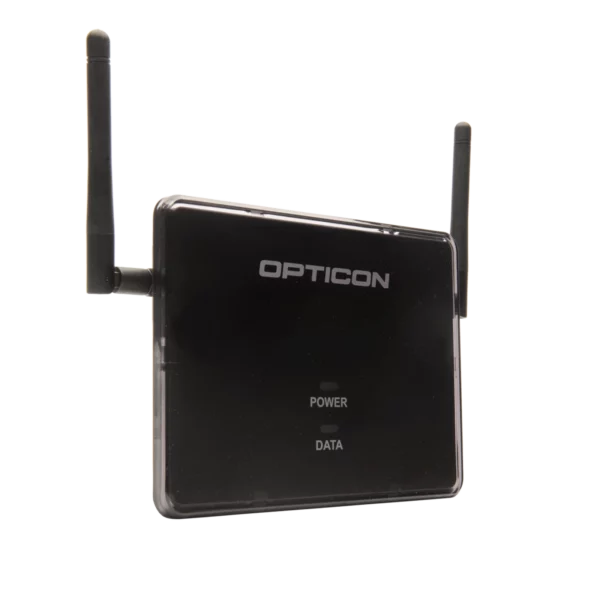

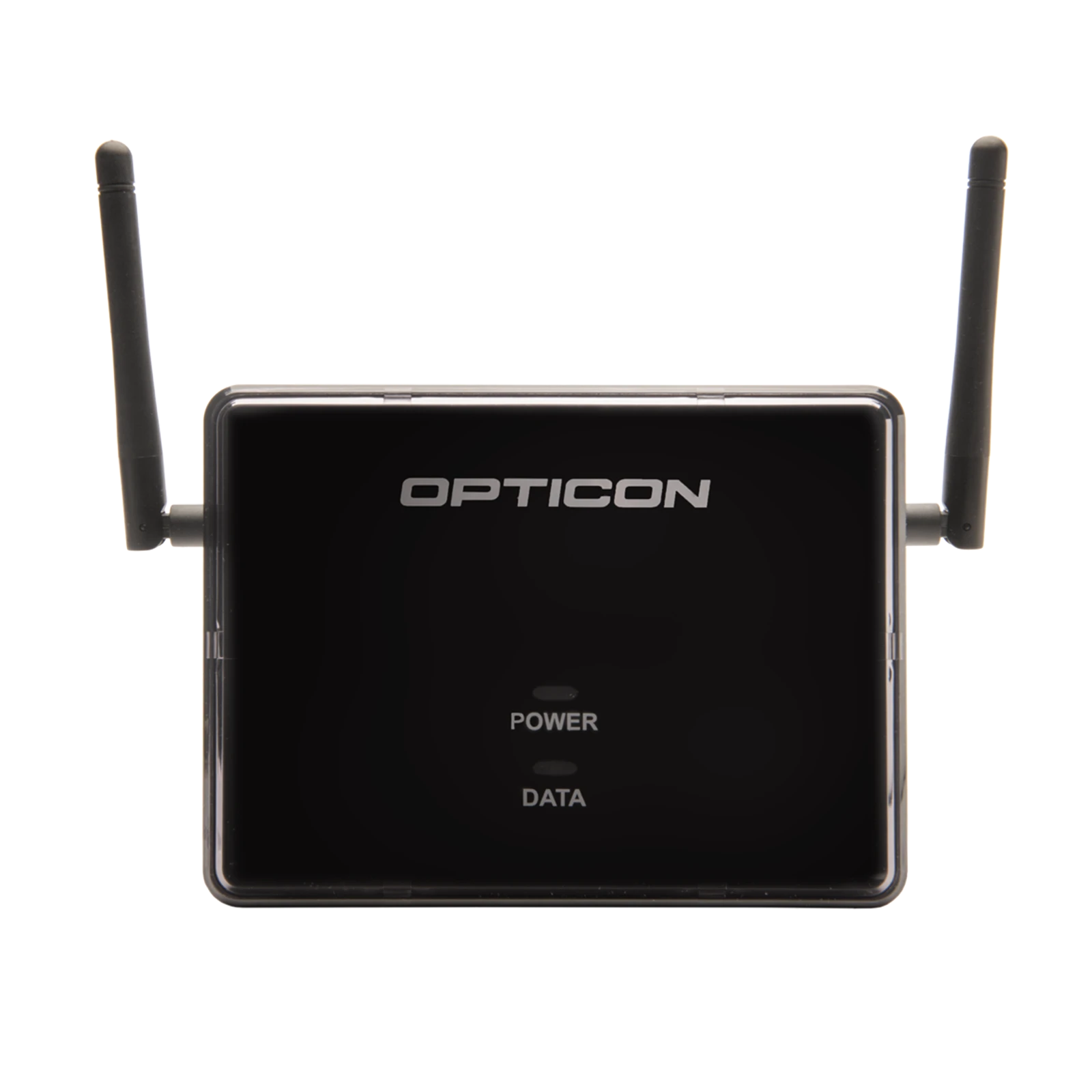

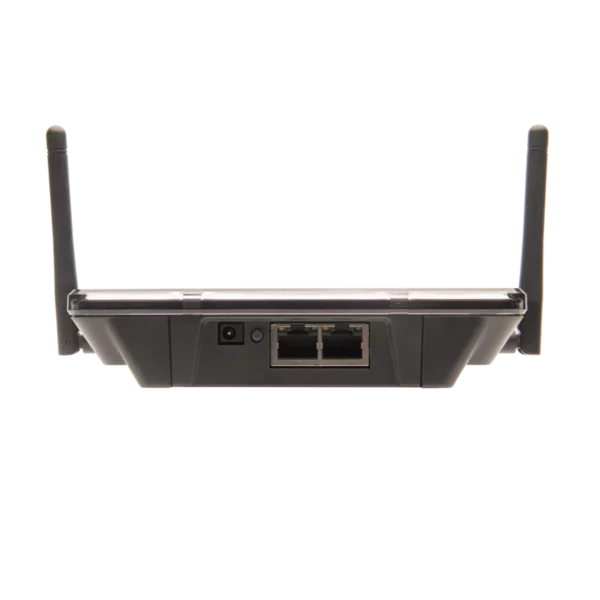

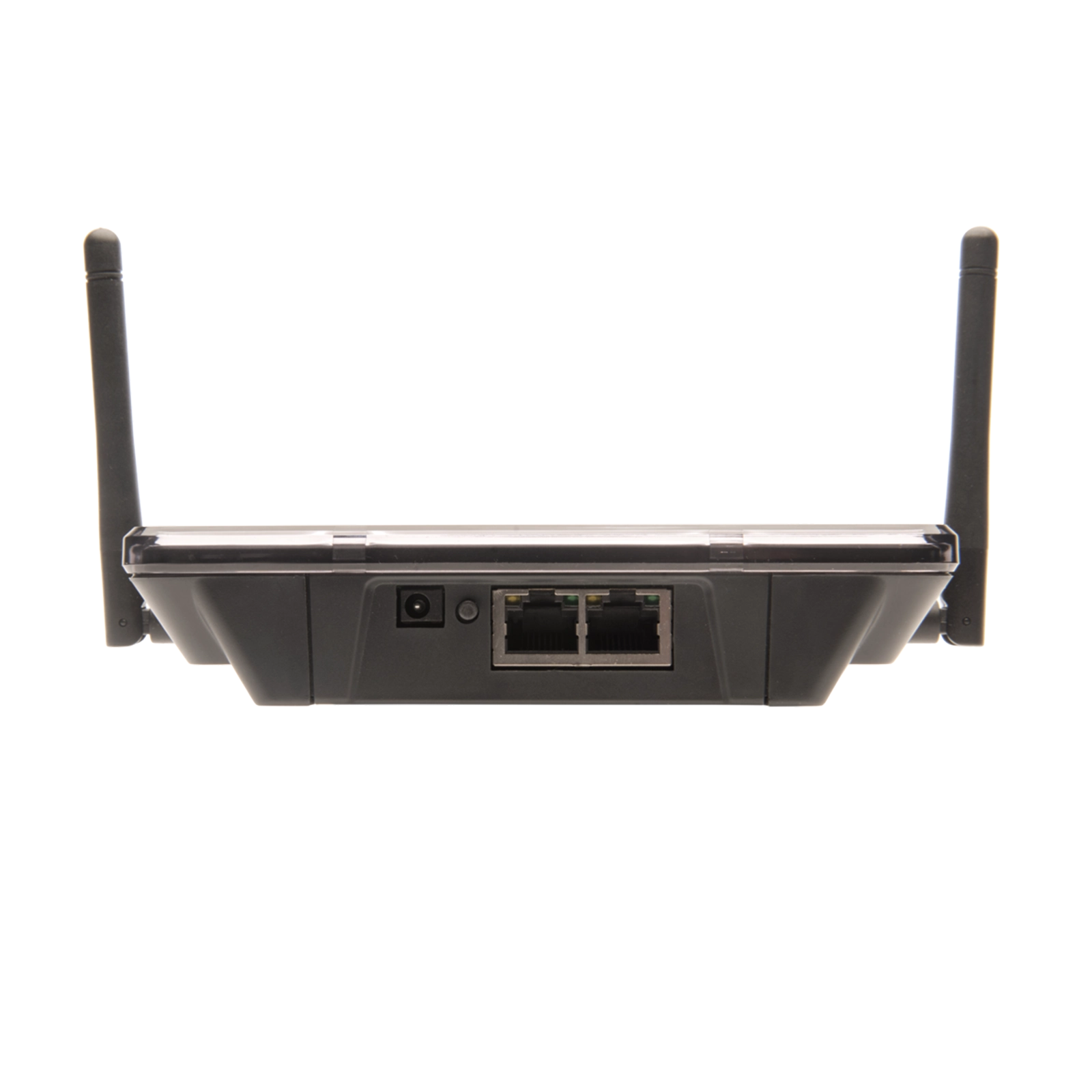

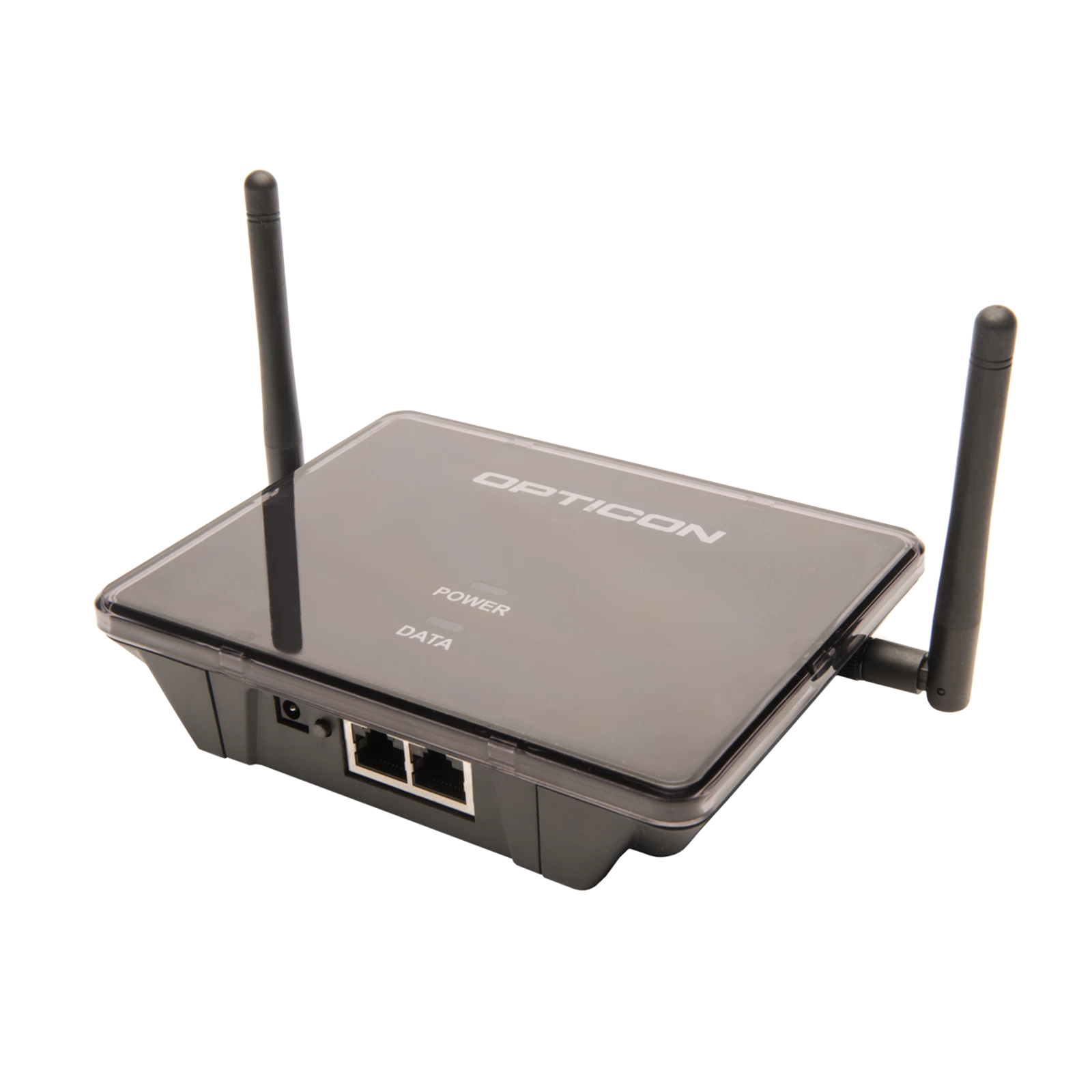

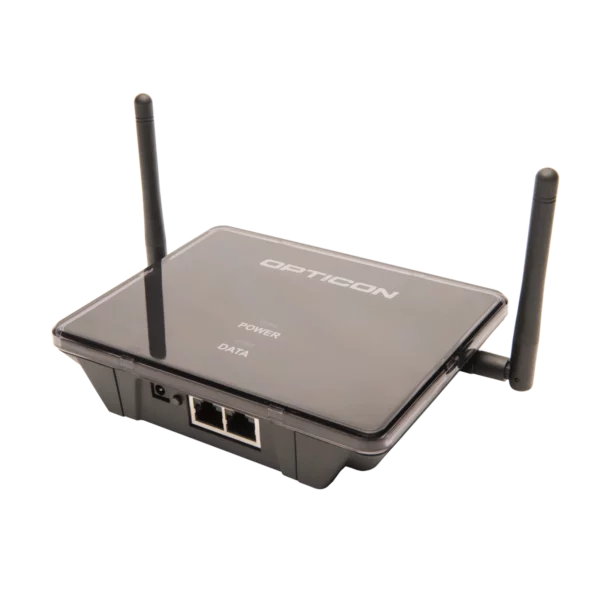

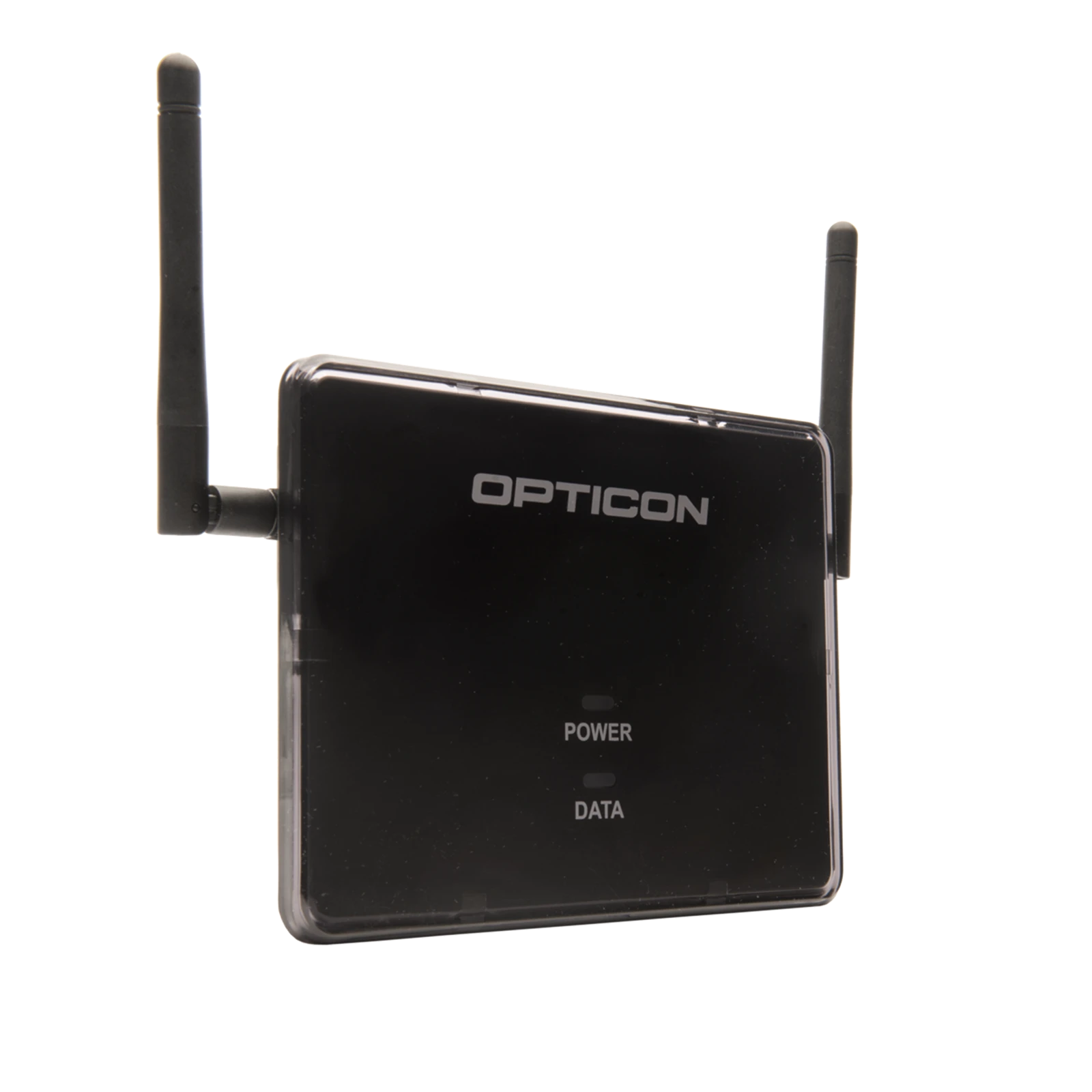

EBS-40

Base Station

Description

From small retail to multi-store business, implementation of the base station is very simple. All Electronic Shelf labels are connected to the same network and content management system, which is connected to the back-office system. One EBS-40 base station can load 2,500 Electronic Shelf Labels per station and has a 25-meter indoor radius (100 meters open-field).

The base station provides a connection between the Electronic Shelf Label server and the Electronic Shelf labels so you can easily update them whenever you want.

For complete specifications, see the datasheet.



Additional information

Ethernet

10 Mbit/sec & 100 Mbit/sec, half duplex & full duplex

Band

2.4 GHz, 16 channels (2405-2480 MHz)

Transfer speed

250 Kbits/sec (>10.000 complete image updates per hour with 2” ESL)

Max. load

Up to 2,500 ESLs per base station (with EE-201 and default ESL settings)

Range

typical 25 meter indoor; 100 meter open-field

Protocol

IEEE 802.15.4 based

Encryption

None (default): 256-bit AES encryption (on request)

Dimensions (WxHxD)

145.1 x 110.1 x 32.4 mm / 5.71 x 4.33 x 1.28 in (without antennas)

Weight

Ca. 250 g / 8.8 oz (incl. antennas)

Product compliance

FCC, RoHS, EN60950-1, IEC60950-1, EN55022, EN55024, CE, REACh, Anatel
