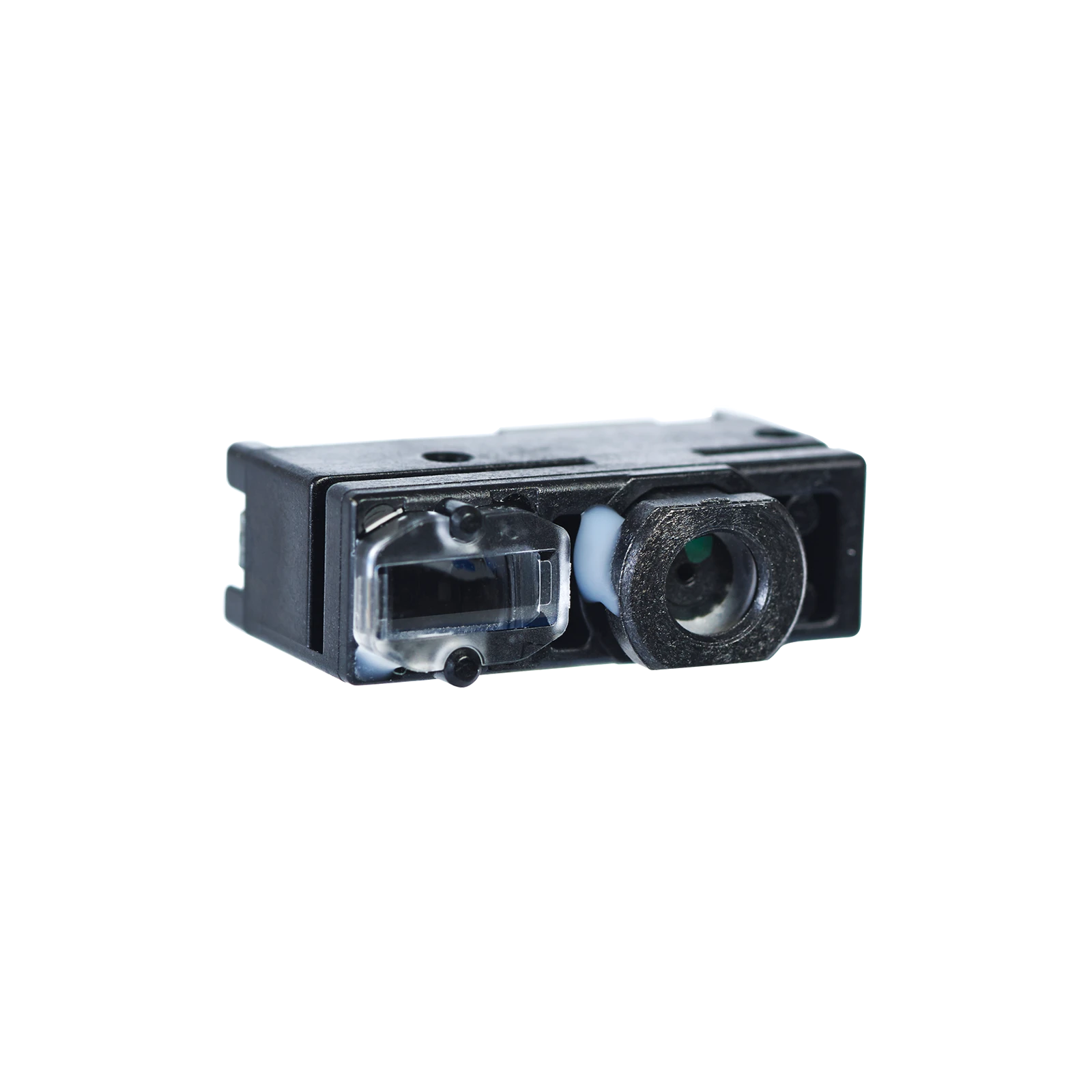

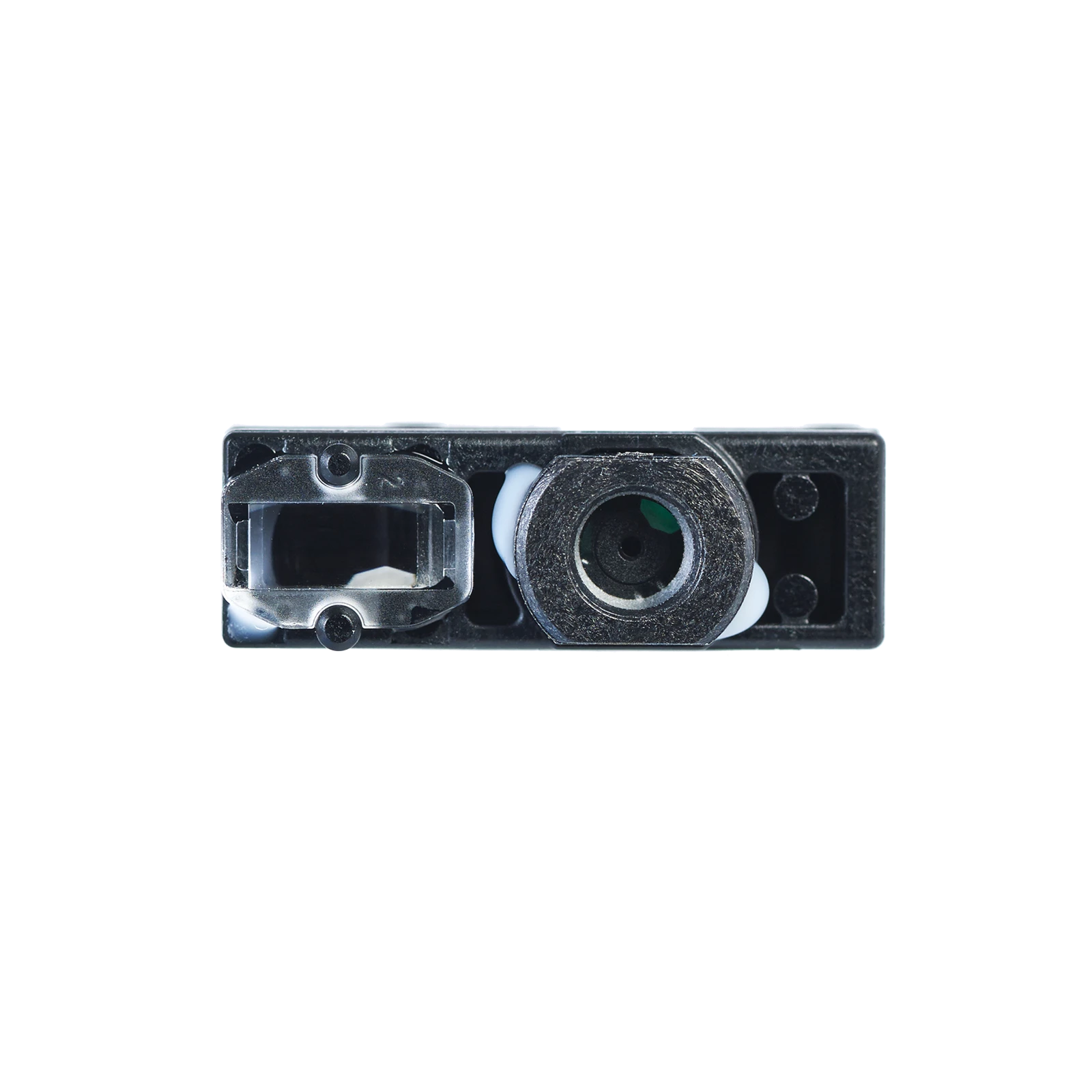

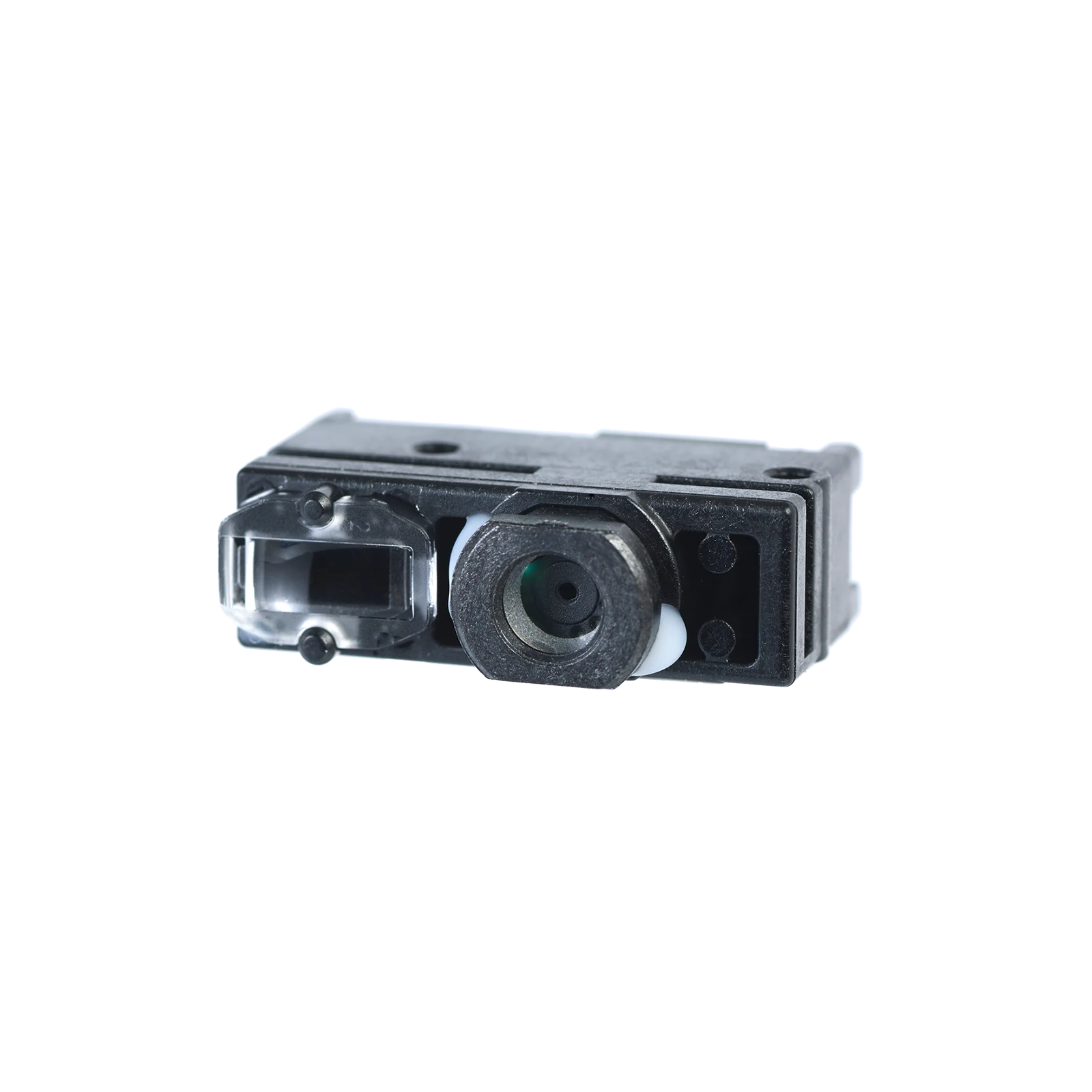

MDC-200

CCD Linear, small form factor, 300 sps

Description

The MDC-200 is a flat CCD scanner that is also equipped with an integrated decoder. This scan engine scans at a fast rate of 300 scans per second. Due to this high scanning rate and its compact design, this scan engine is a popular choice for customers that look to integrate a scan engine in their OEM or ODM project.

Excellent choice

Opticon’s CCD scanners scan nearly all existing 1D barcodes. This engine integrates a CCD scanner with a decoder that communicates the scanned results through a 12 pin FFC connector, suitable for both RS-232C and USB. The engine has a maximum current consumption of 120mA, making this a good choice when a battery powers the engine for a long lasting operating time.  The engine has a compact design with dimensions measuring (WxHxD): 22.8 x 7.5 x 15 mm and with 2.6 grams it is also lightweight.

Development board

For the testing and evaluating of this scan engine we have a development board, the MEK-3100. This separately sold development kit enables you to evaluate the scan engine without the need to develop any electronics or cables. Take a look at the kit here.

In conclusion, this engine is fast, has a low power usage and a compact design making it a popular choice for various markets. For more detailed information please read the leaflet. This leaflet contains all technical specifications, if you have questions or you require more information, please feel free to contact us.

Features

The MDC-200 has some outstanding core features, to summarize:

  • 300 scans per second
  • Low energy usage
  • Compact design
  • Integrated decoder

Existing customers use the MDC-200 in ODM or OEM projects that require a fast 1D scanner with reliable results. For example; healthcare, ticketing, logistics and postal are markets that use this engine. The engine is popular in these markets because of the compact design, low power usage and high scan rate.

Additional information

Form factor

Reading type

Light source

1 red LED

Scan method

CCD linear sensor

Scan rate

300 scans / second

Drop test

Packed in dummy case 1.8 m / 6 ft drop onto concrete surface

Dimensions (WxHxD)

22.8 x 7.5 x 15 mm / 0.90 x 0.30 x 0.59 in

Weight body

Ca. 2.6 g / 0.09 oz

Product compliance

RoHS, IEC62471

Sold separately

MEK-3100 development board (With power supply, RS232 cable, USB cable, PCBs)
