MDL-2001

Laser, Small form factor, 100 sps

Description

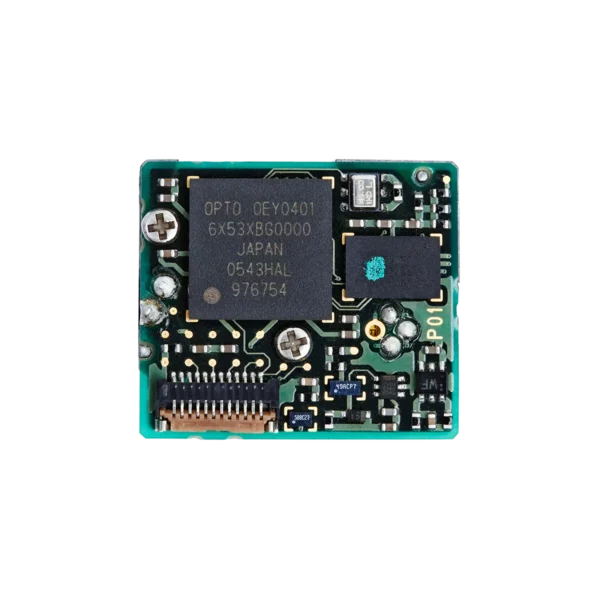

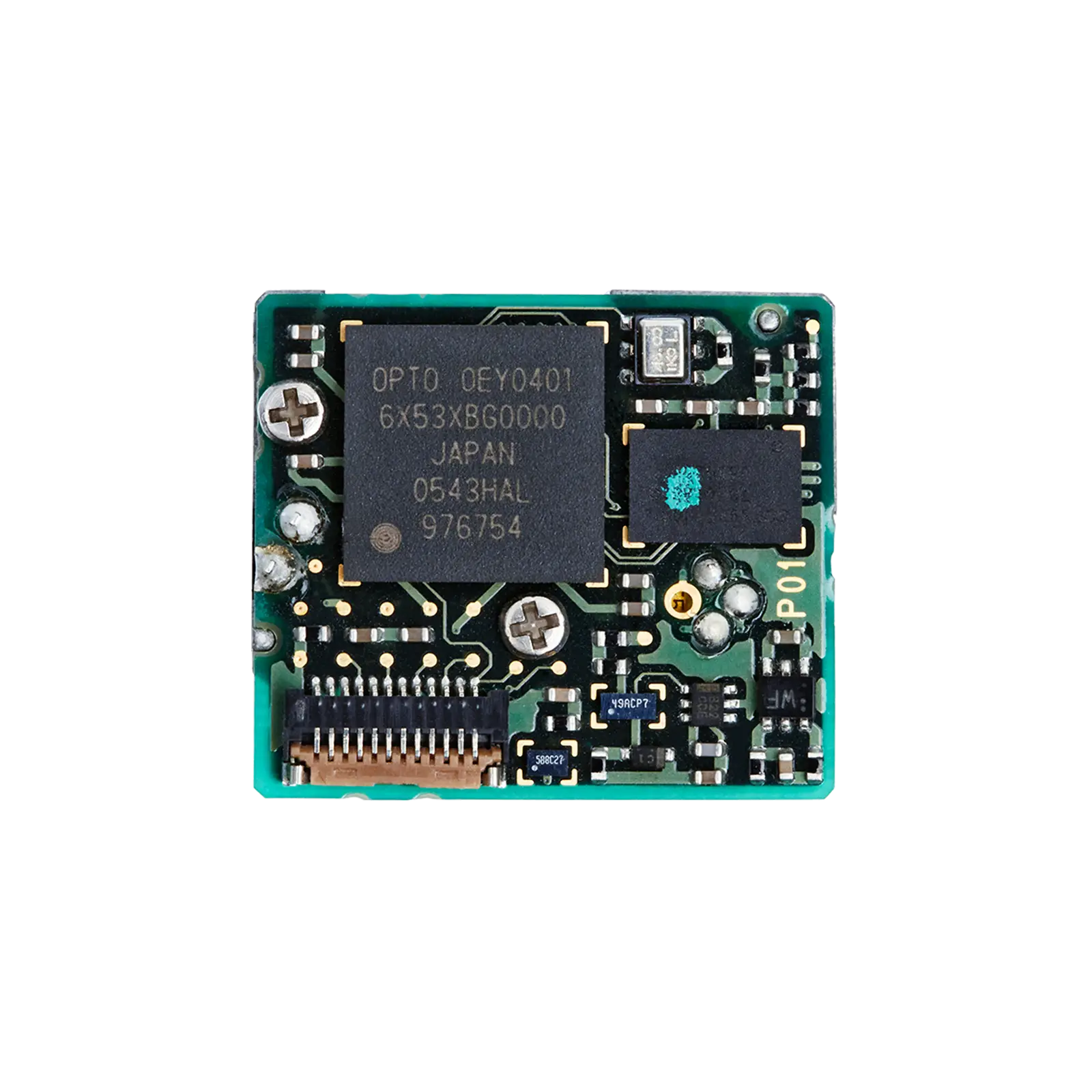

The MDL-2001 is a very reliable laser scanner that runs at 100 scans per second. It is a small scanner with compact dimensions making it a scan engine that is easy to integrate. It has an integrated decoder onboard that can directly decode the scan results.

Powerful engine

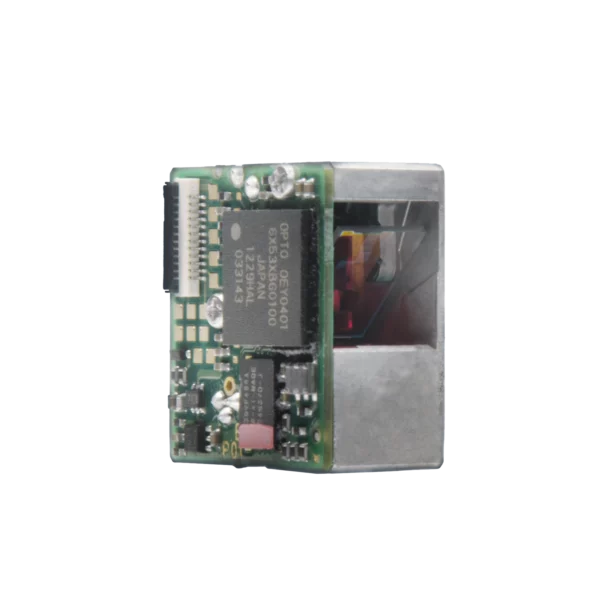

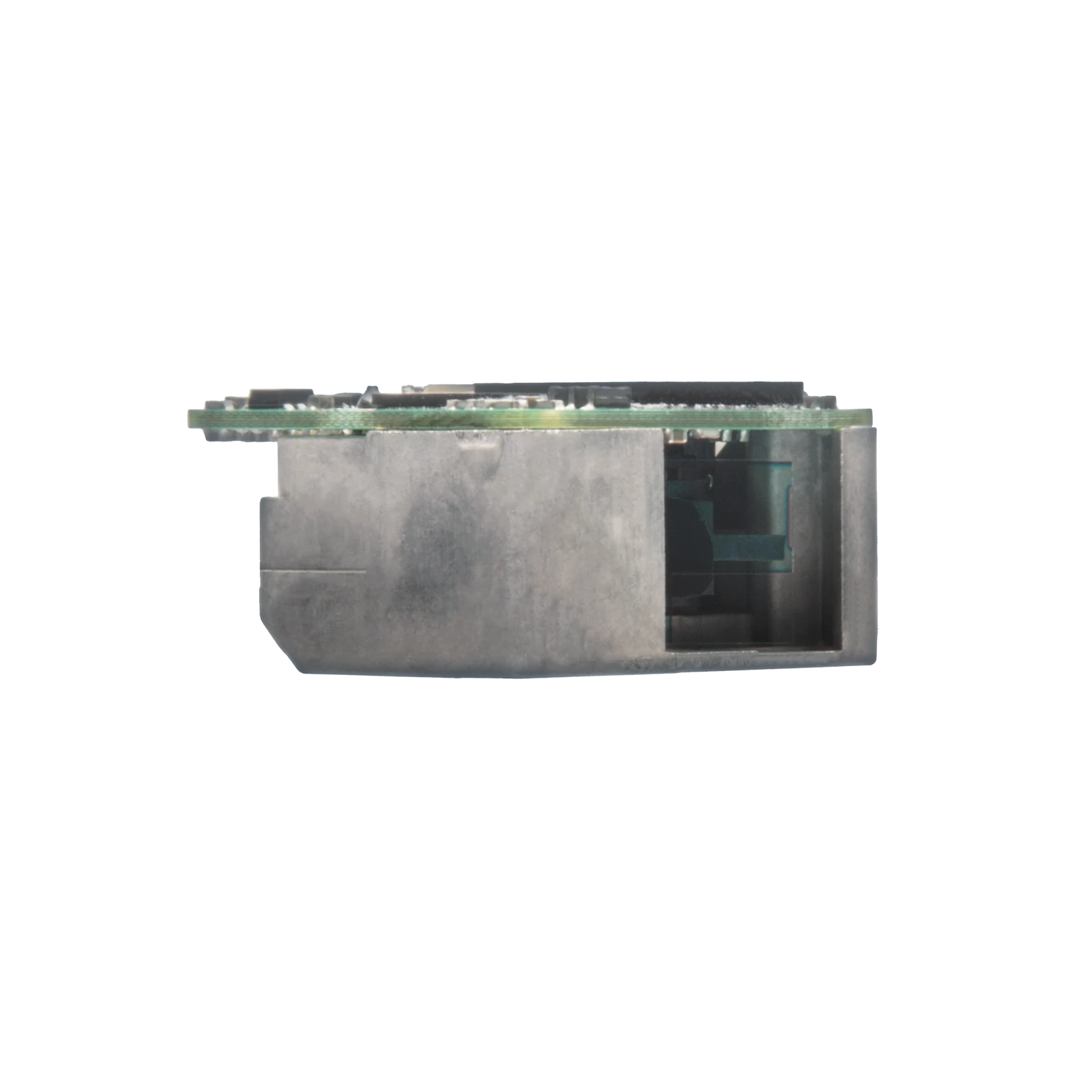

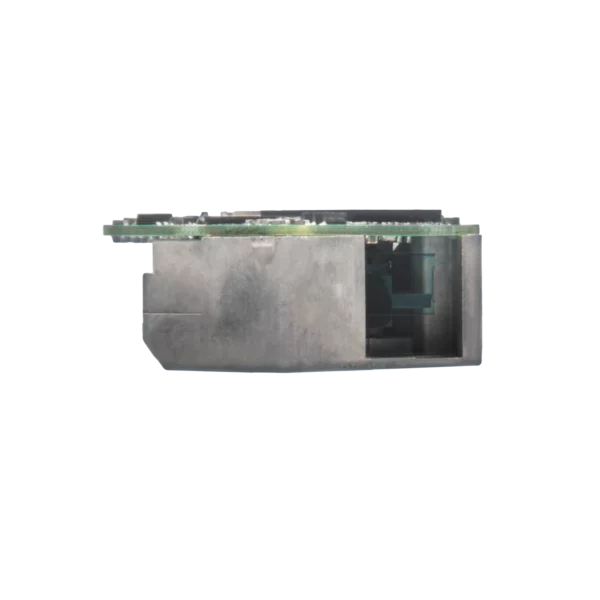

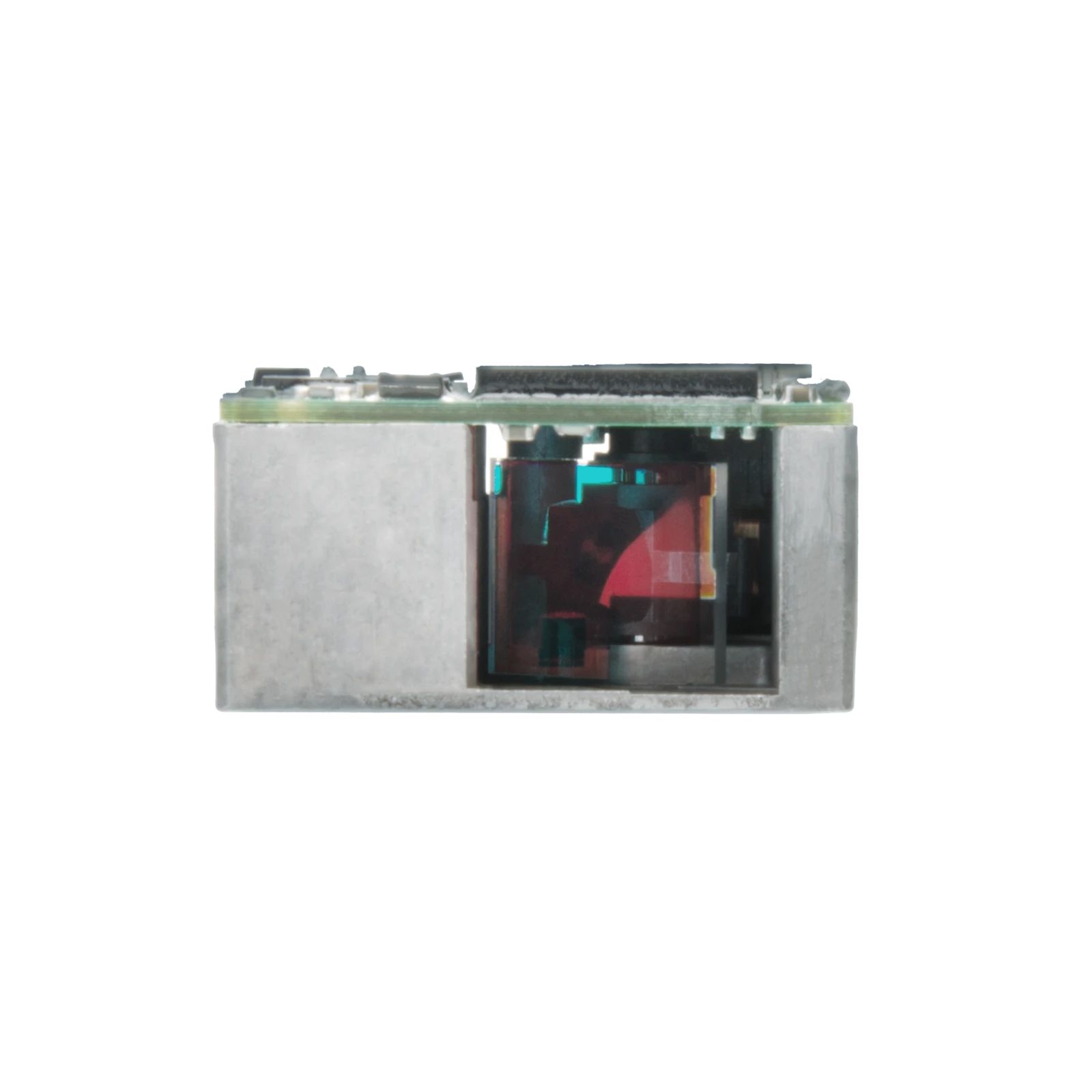

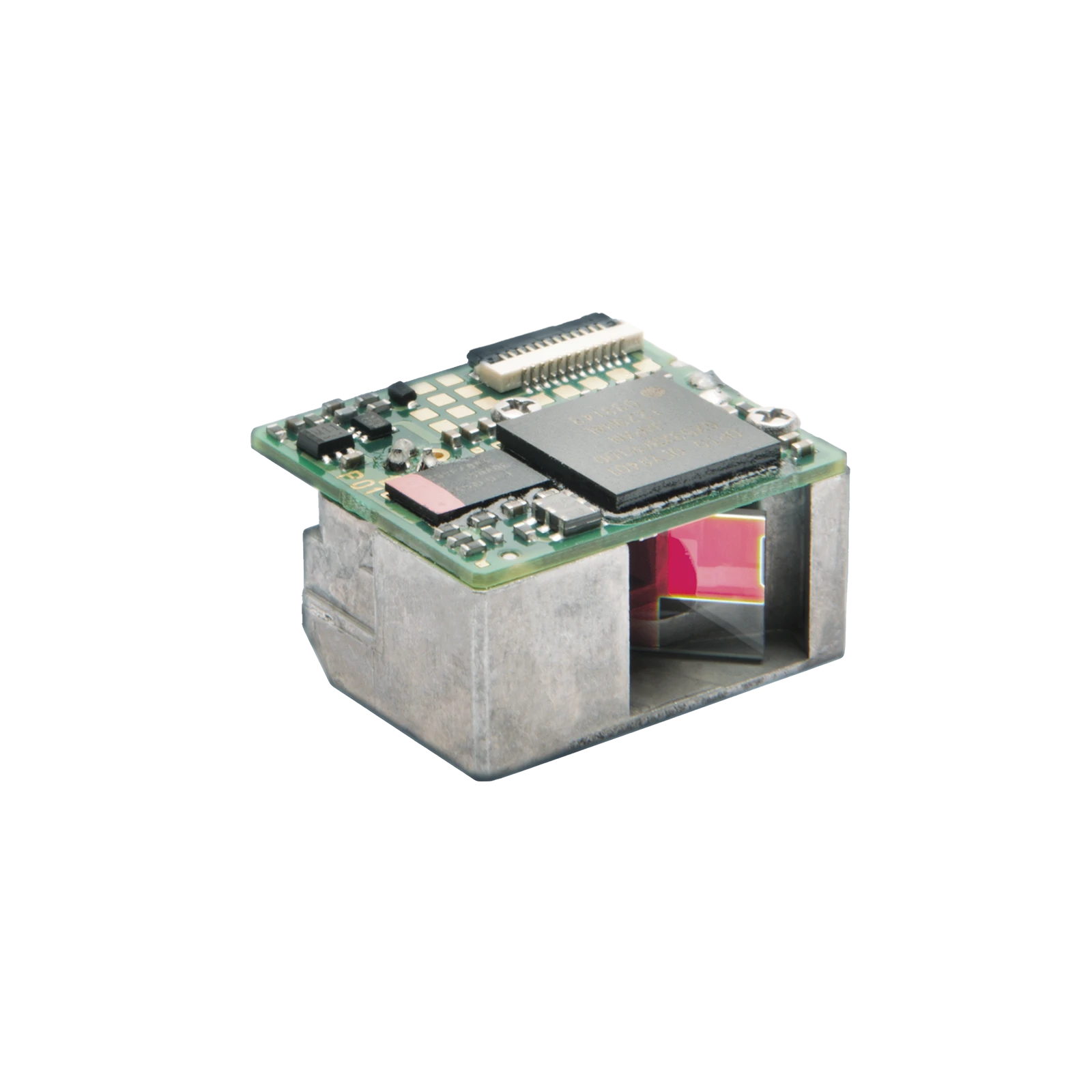

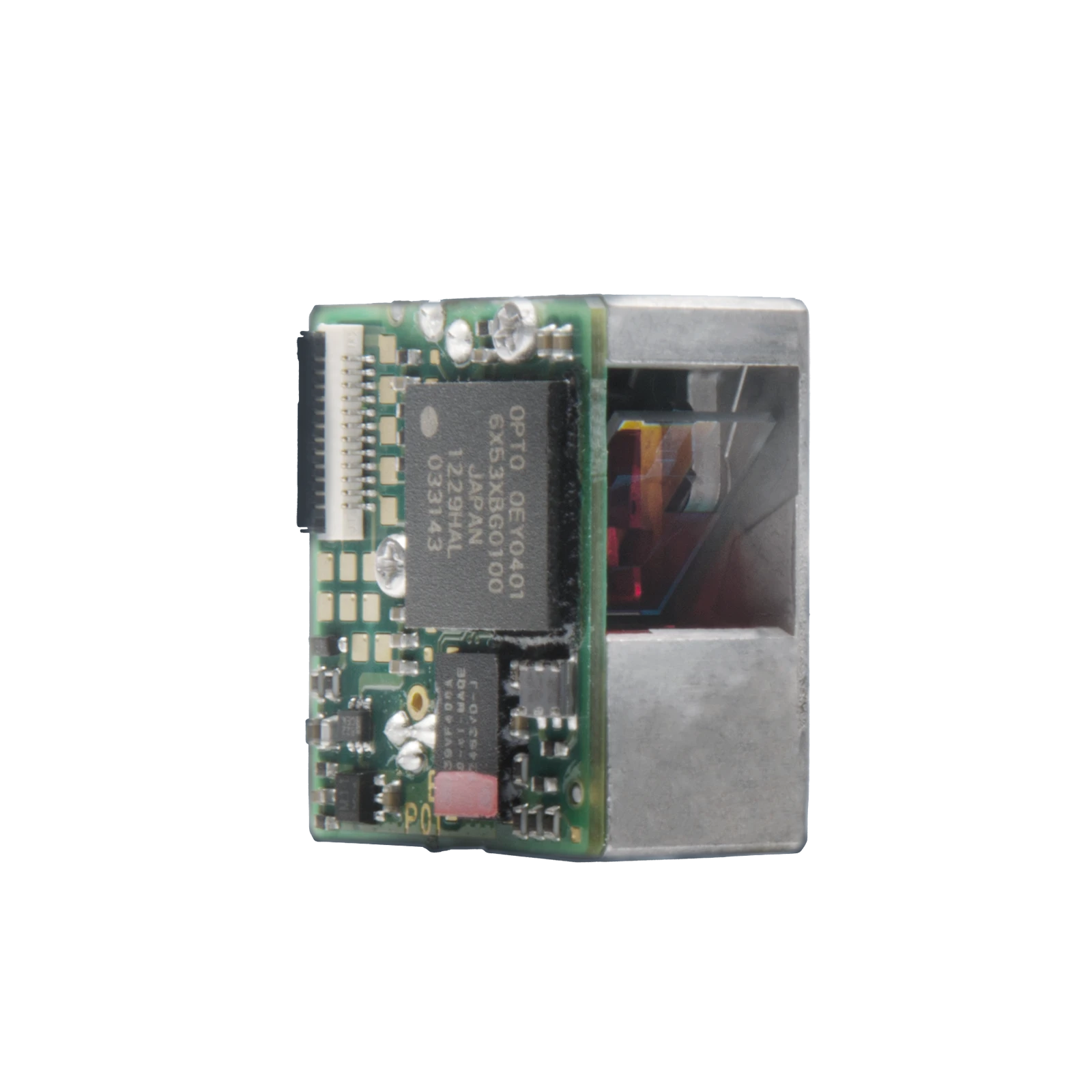

The MDL-2001 is a powerful, bi-directional laser scanner that provides clear visual feedback of the laser line. The scanning speed is 100 scans per second and it can scan all 1D barcodes. The engine is small and the design is a cubical shape that measures 20.4 x 11.2 x 18.0 mm, with such a compact shape you can easily integrate this engine in your product. The communication goes through a 12 pin FFC connector.

Development board

For the testing and evaluating of this scan engine we have a development board, the MEK-3100. This separately sold development kit enables you to evaluate the scan engine without the need to develop any electronics or cables. Take a look at the kit here.

The engine is easily integrated into your next product and this engine is proven as a reliable laser engine made by Opticon. If you would like to read all the specs and details, please look in the leaflet in the download section.

Features of the MDL-2001

A few highlights that make the MDL-2001 the best engine we have made so far:

  • Compact engine
  • powerful laser scanner
  • Build-in decoder
  • Very reliable

Current customers use the MDL-2001 in all kinds of integrated products and devices that need a reliable result. Because MDL-2001 is versatile in its appliance it can be integrated into any product that needs proficient scanning. The integration of any engine or module in a product requires some technical expertise. The engine is often used in parking ticket machines, access control, industrial environment, and many more.

Additional information

Form factor

Reading type

Light source

650 mn visible laser diode

Scan method

Bi-directional scanning

Scan rate

100 scans / seconds

Drop test

Packed in dummy case 1.8 m / 6 ft drop onto concrete surface

MTBF

30,000 hours except laser diode (10.000 hours) and except mirror scan unit (10,000 hours)

Dimensions (WxHxD)

20.4 x 11.2 x 18.0 mm / 0.80 x 0.44 x 0.71 in

Weight body

Ca. 4.7 g / 0.17 oz

Product compliance

RoHS, JIS-C-6802 Class 2, FDA CDRH Class II

Sold separately

MEK-3100 development board (With power supply, RS232 cable, USB cable, PCBs)
