F-70

CCD Linear, RS232, 700 sps

Description

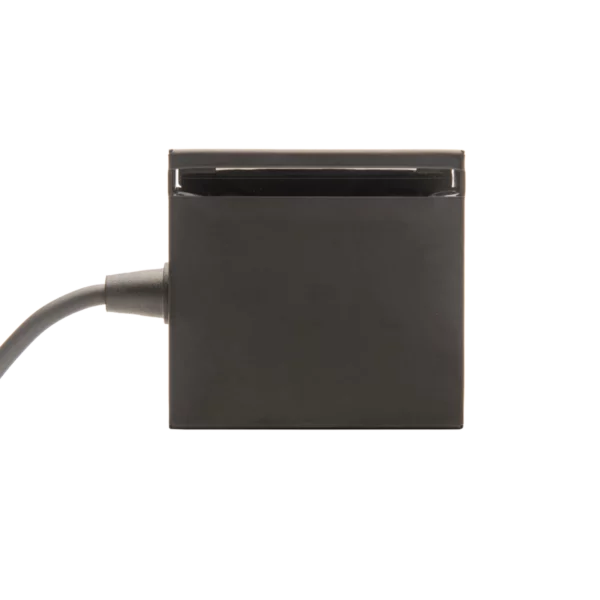

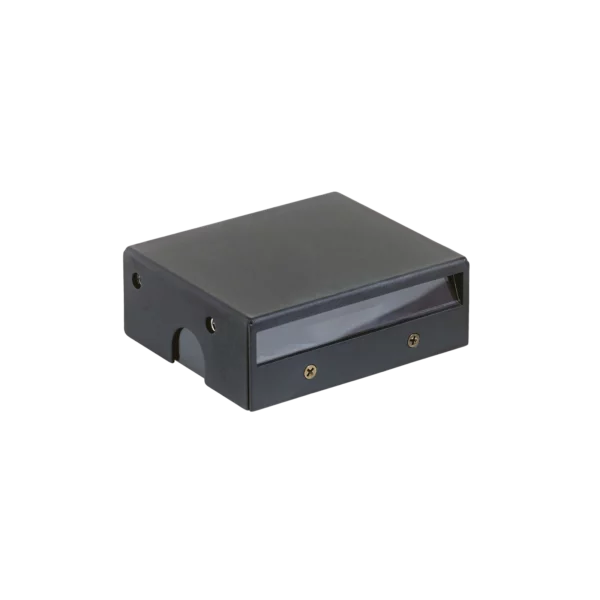

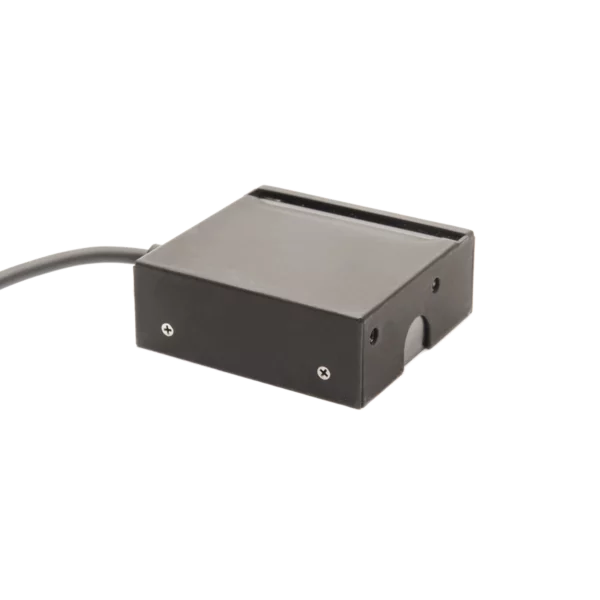

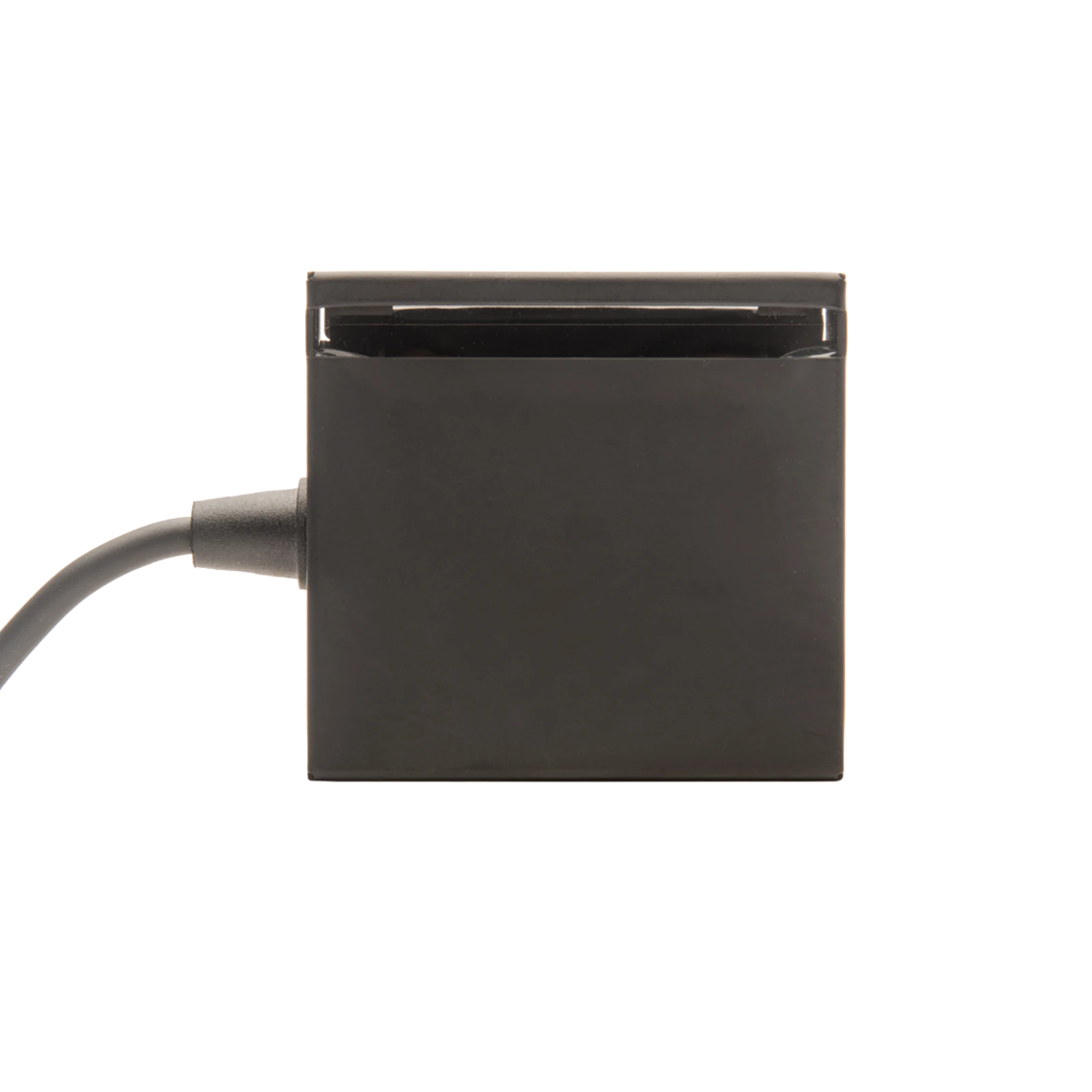

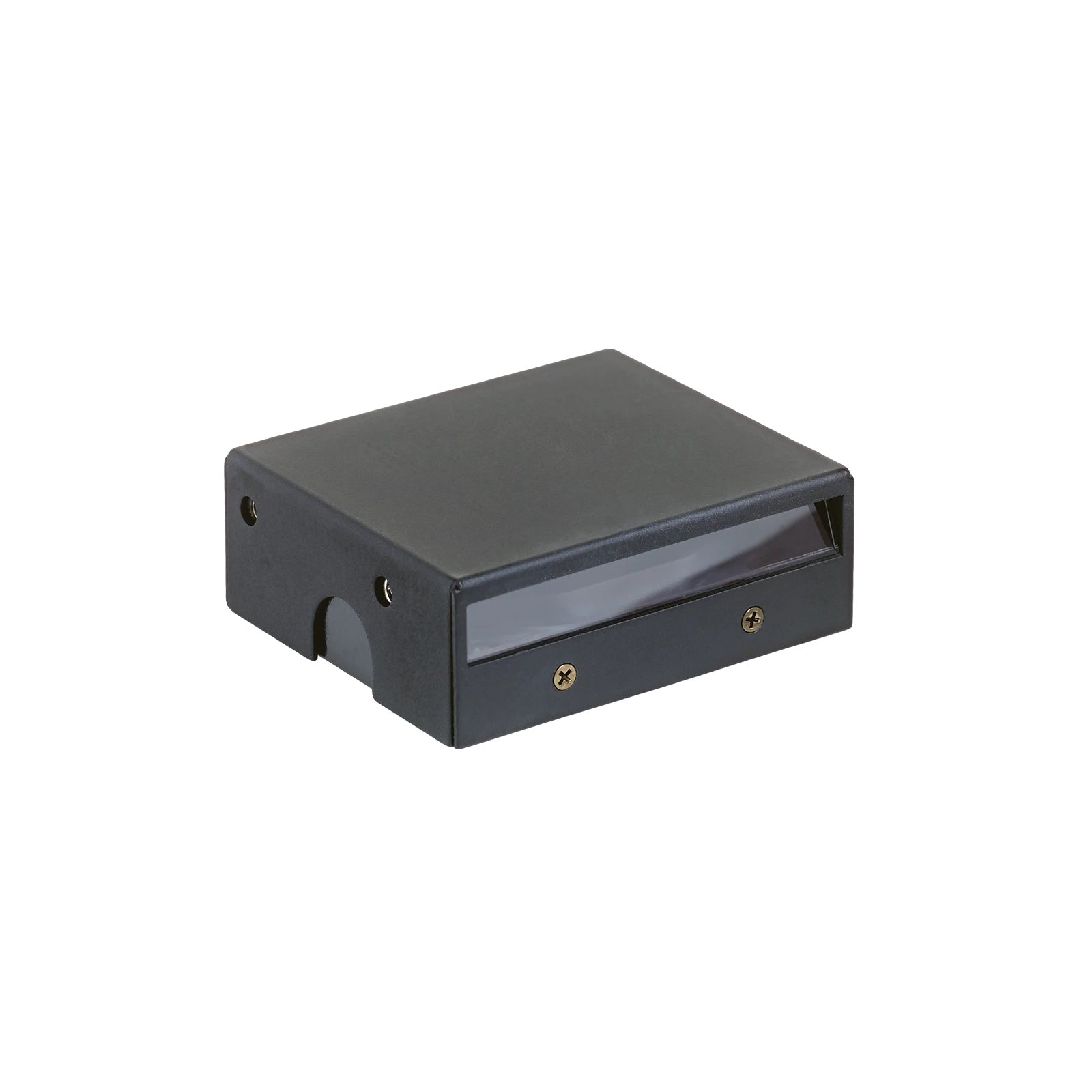

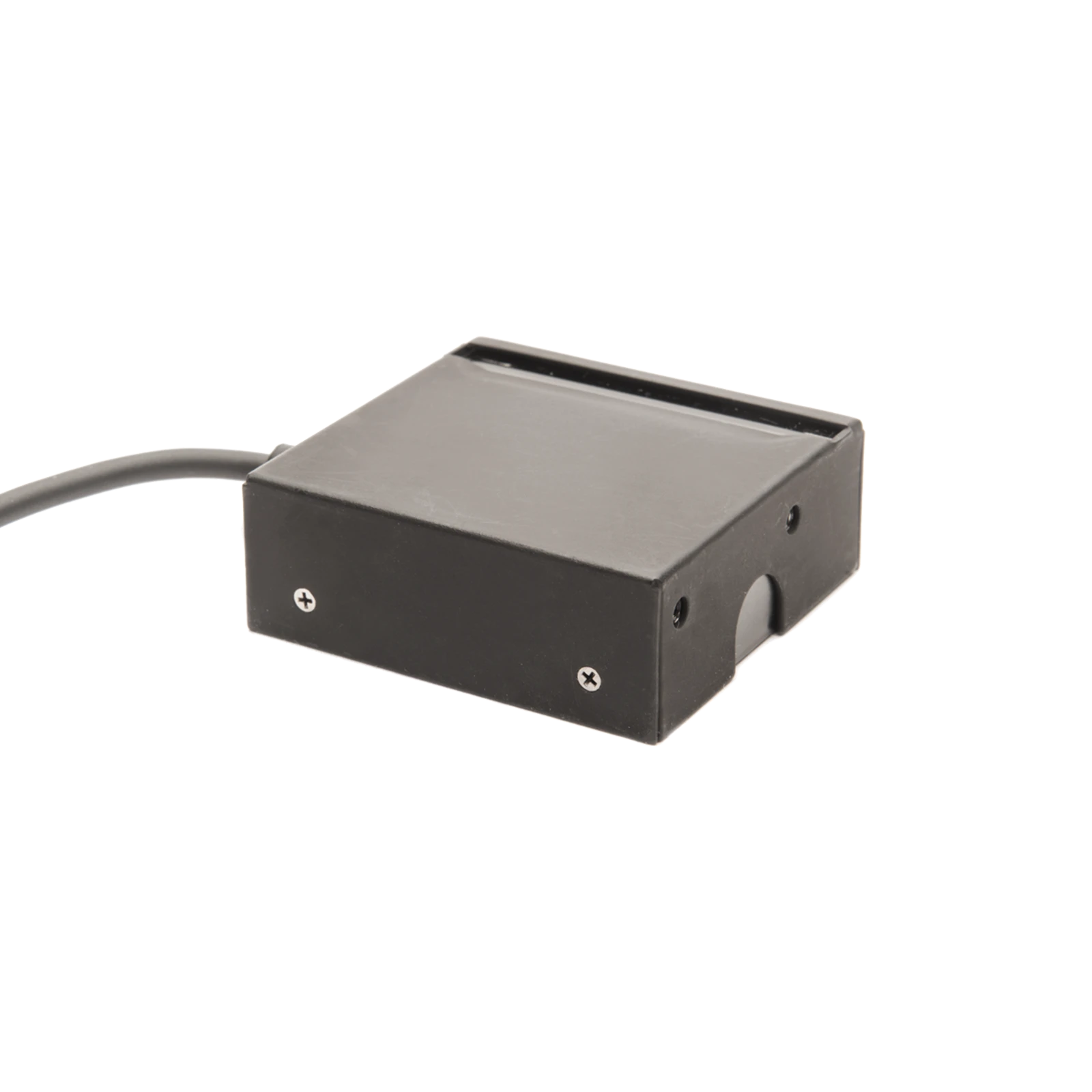

The F-70 is a high speed 1D CCD scanner that is easy to integrate because of its small size. It scans at a whooping speed of 700 scans per second. It is a close-range CCD stationary scanner that is available with either a front-view (I) or side-view (L) case. The rugged sheet metal enclosure protects the optics and electronics from dirt and other environmental hazards. The scanner is available in RS232. This makes it easy to incorporate the scanner into your design. It offers a wide variety of configurable options for easy integration in your business process.

Which product is right for me?

Not sure if this fixed mount scanner is the right product for me? Use our product selector.

Features of the F-70

The F-70 has some unique features that makes it an excellent choice:

  • Metal sheet protection against environmental hazards
  • Best cost-to-performance ratio in fixed mount CCD scanners
  • Extremely fast at 700 scans per second
  • Packaged in a compact, durable metal housing
  • Complete unit with integrated decoder
  • Easily adapts into a wide variety of OEM and fixed mount scanning applications
  • Two models available: I – the scan window is in the front and L – the scan window on the side
  • Compact size and weight
  • Communication interface: RS232
  • Two year warranty

This fixed mount scanner is ideal in situations that require 1D scanning at a high speed. Our existing customers use the F-70 in retail P.O.S., self service solutions like a kiosk, parking lot ticket machines and it is frequently used in medical or pharmaceutical analysis machines. It is clear that this scanner is applicable in a wide range of markets.

Additional information

Form factor

Reading type

Communication interface

RS232

DB25 F connector with external power supply

Light source

660 nm red LED

Scan method

CCD linear sensor

Scan rate

700 scans / second

Drop test

0.6 m / 2 ft drop onto concrete surface

IP rating

Vibration test

10 – 100 Hz with 2G for 3 hours

Electrostatic discharge protection

15 kV (non-destructive)

Dimensions (WxHxD)

I-type: 55 x 47 x 20 mm / 2.17 x 1.85 x 0.79 in
L-type: 52 x 55 x 20 mm / 2.05 x 1.85 x 0.79 in

Weight body

I-type: Ca. 100 g / 3.5 oz (excl. cable)
L-type: Ca. 110 g / 3.9 oz (excl. cable)

Product compliance

CE, FCC, RoHS, EN60950-1, IEC60950-01, IEC60825-1, EN55022, EN55024

Models

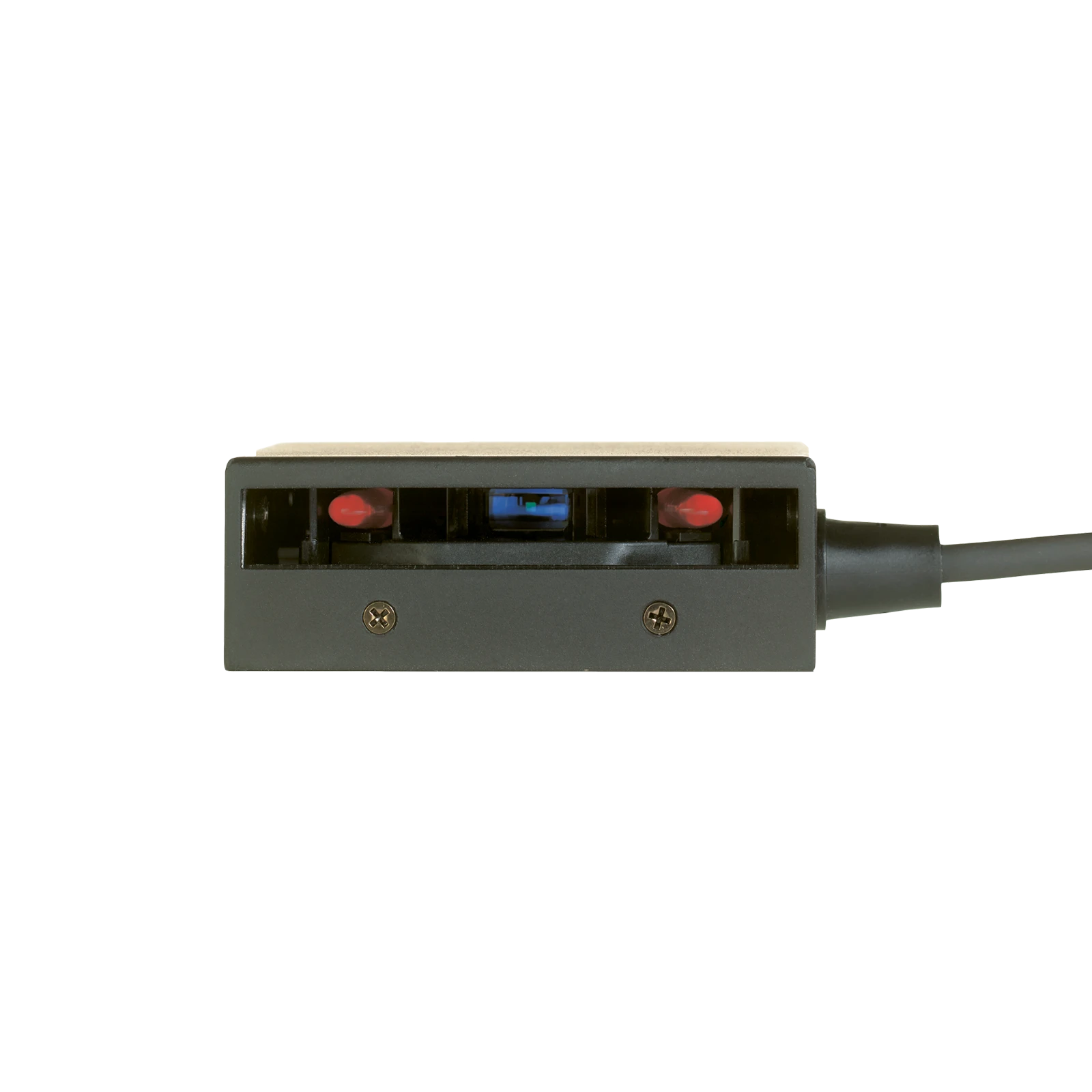

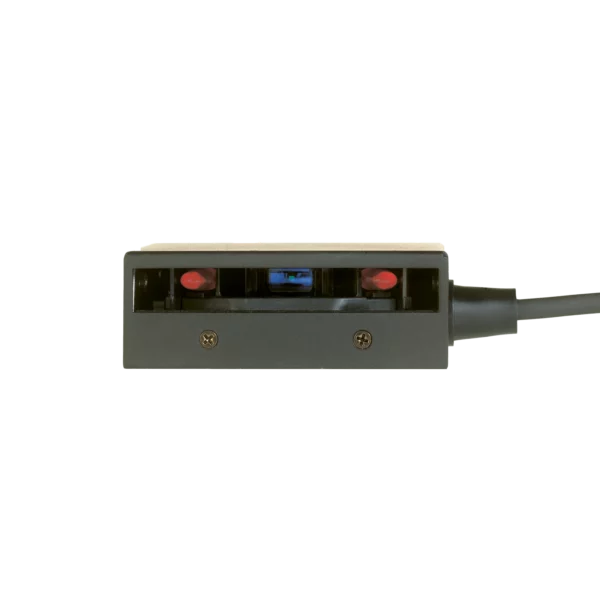

I-type front view

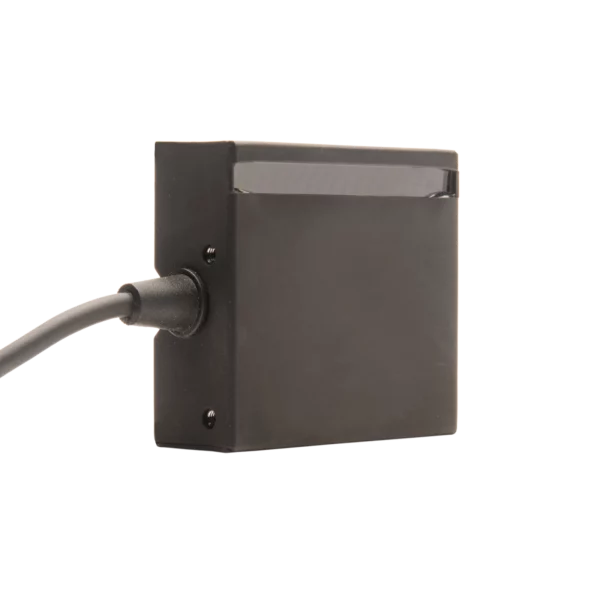

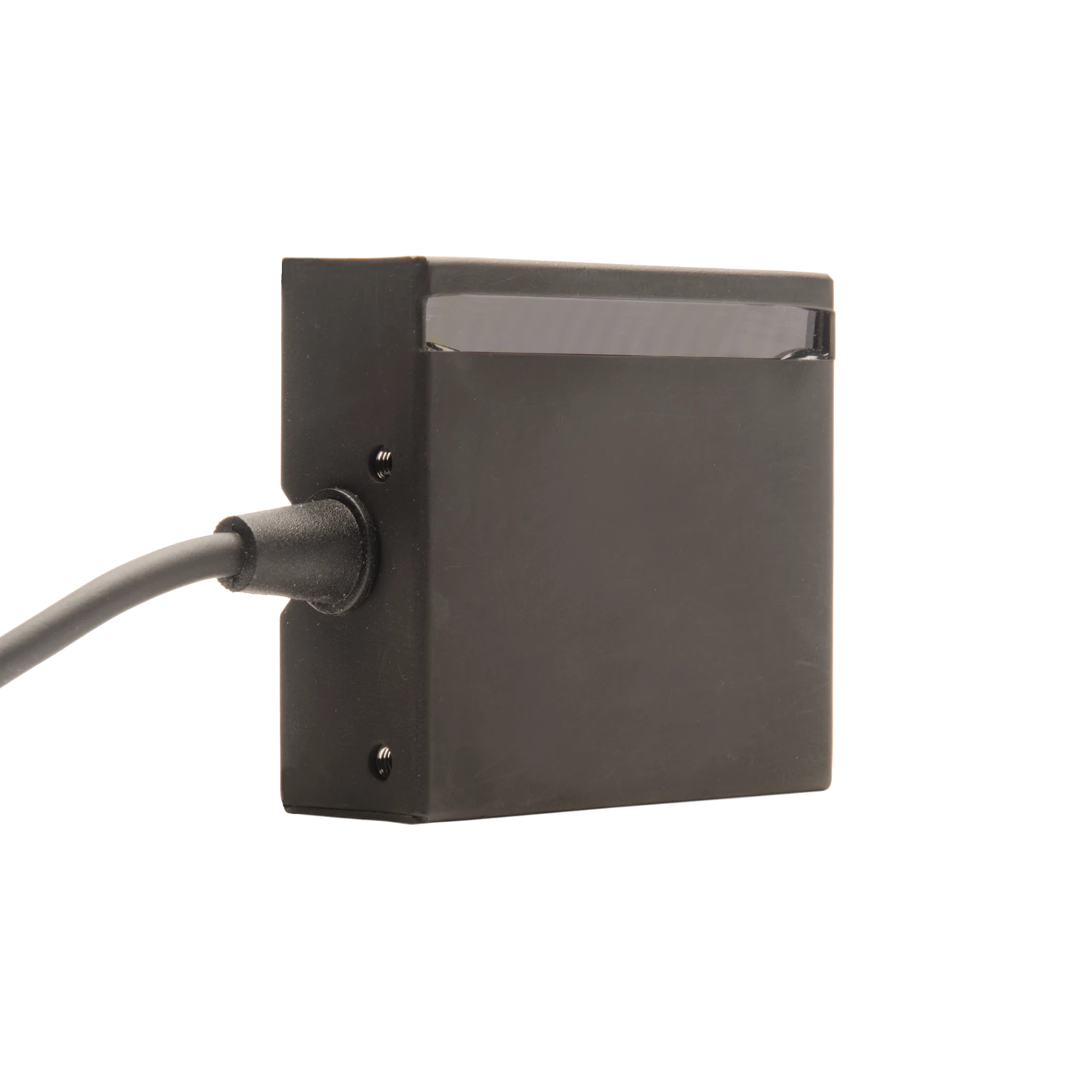

L-type side view
