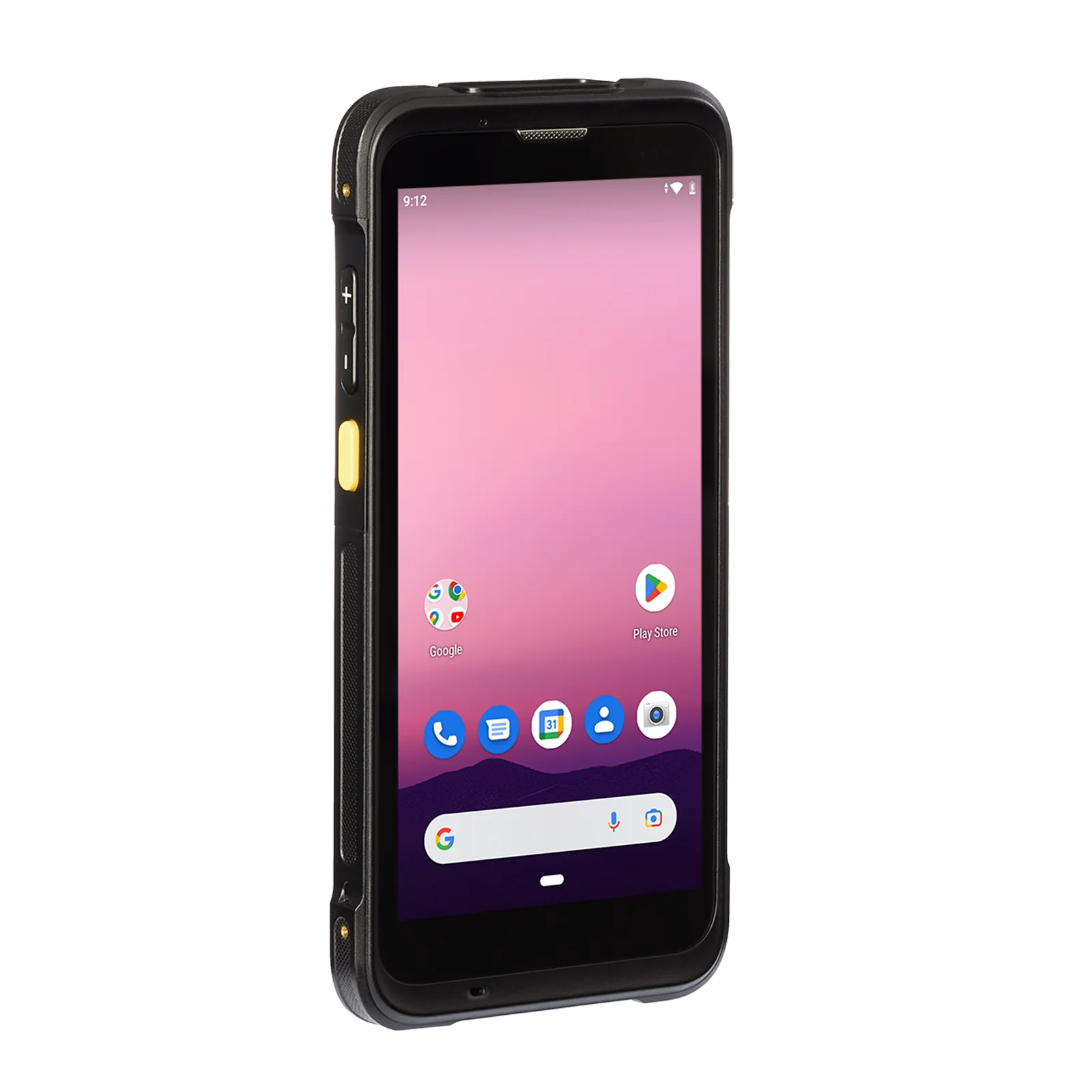

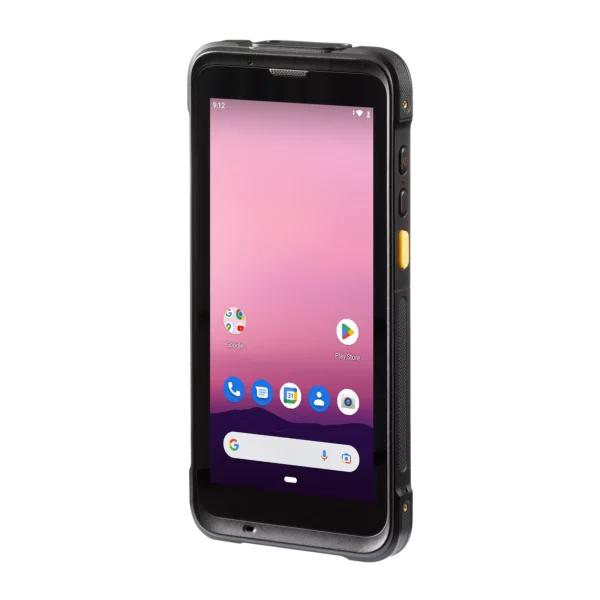

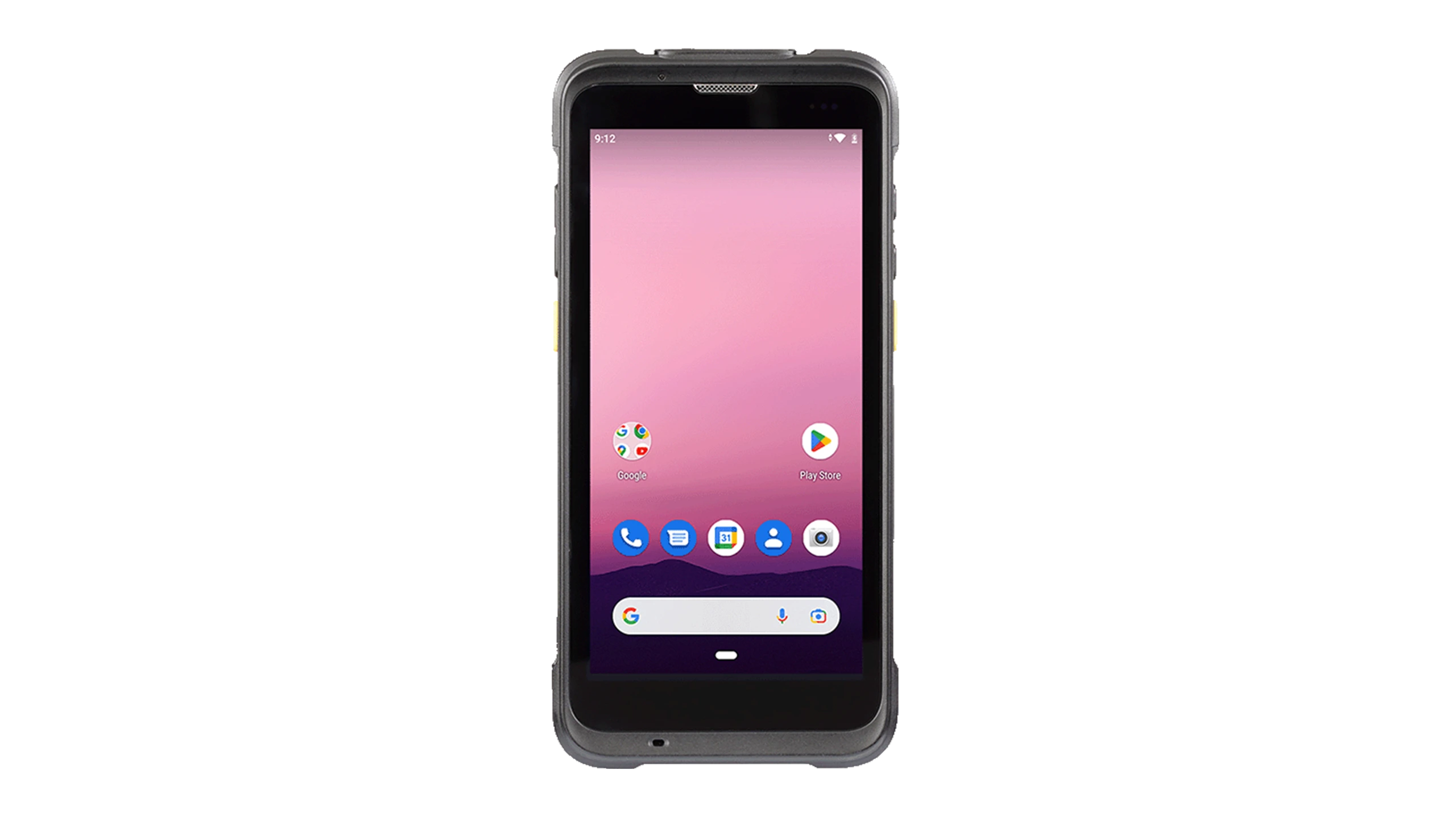

H-35

The ideal partner for today’s mobile workforce

Description

As the Android platform quickly develops, we at Opticon work simultaneously to provide our customers with the top of the line mobile computers. Proceeding a successful launch of the H-33, Opticon now offers our newest mobile computer with Android 11 capabilities, the H-35.

Opticon’s Android devices are the ideal solution for today’s modern mobile workforce, by integrating barcode scanning, analytics, and service solutions for industries such as logistics, postal services, healthcare, merchandising, and transportation. The H-35 is equipped with a powerful Opticon 2D imager barcode scanner, Bluetooth 5.1 and NFC supported.

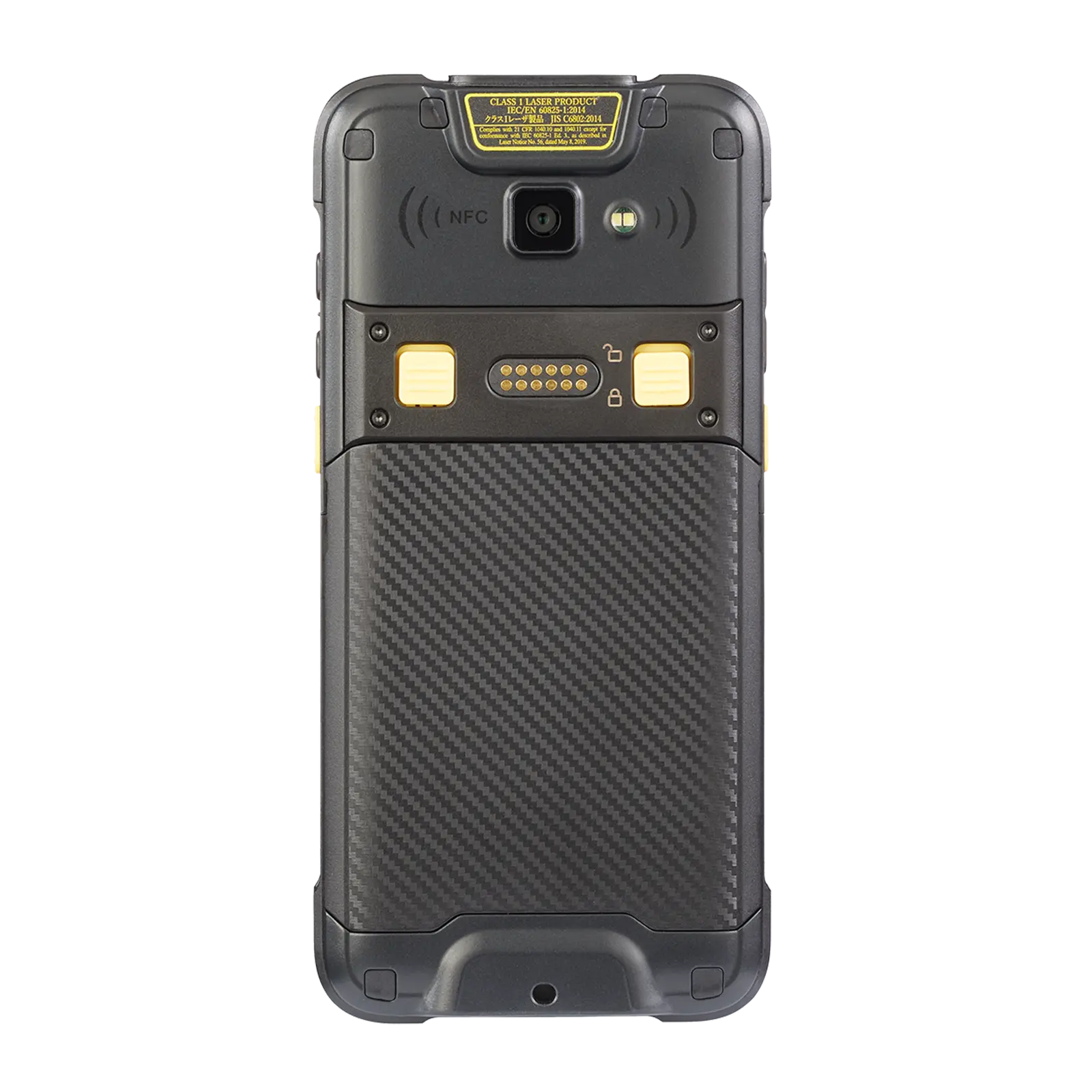

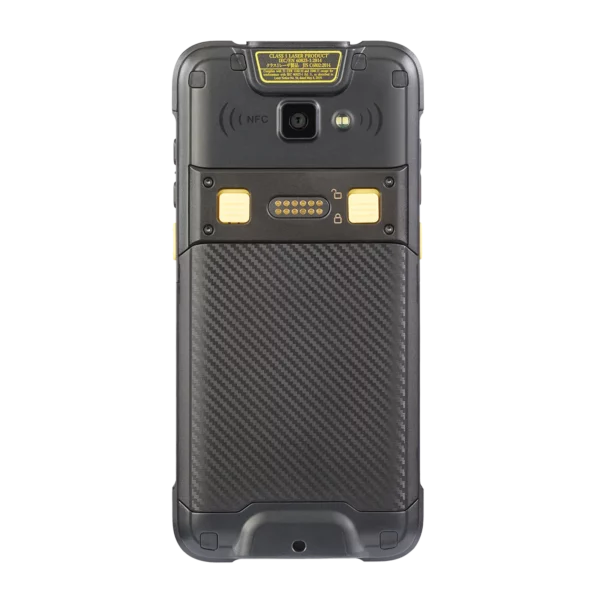

The rugged H-35 comes with a 13 MP rear-facing camera with autofocus and LED flash, high capacity battery life for workers on the go, and a high-end scanner with Opticon’s superior barcode scanning technologies. The H-35 is dust and water-resistant, it is built to withstand the toughest work environments with its rugged design and IP65 rating. The 5.5 inch Gorilla Glass touch screen also protects the devices from scratches and shattering. With the option of an additional rugged rubber boot, the device can even withstand a drop up to 2.4m.

Reliable

Opticon provides full and immediate support via your local office for all of our devices. With the H-35, you are investing in a fully supported product, which includes a two-year warranty. To extend the durability of mobile computers, a bumper accessory is available and much more. Included is a software development kit so you can customize your product according to your wishes.

Accessories

Opticon offers a load of optional accessories to fit your needs. There is also a version available (conditions apply) that features a ToF (time-of-flight) camera, which measures the dimensions of your parcel. Contact your local office for more information.

Features

A few highlights that makes H-35 your reliable partner:

  • Android 11
  • 4G/Wi-Fi supported rugged design

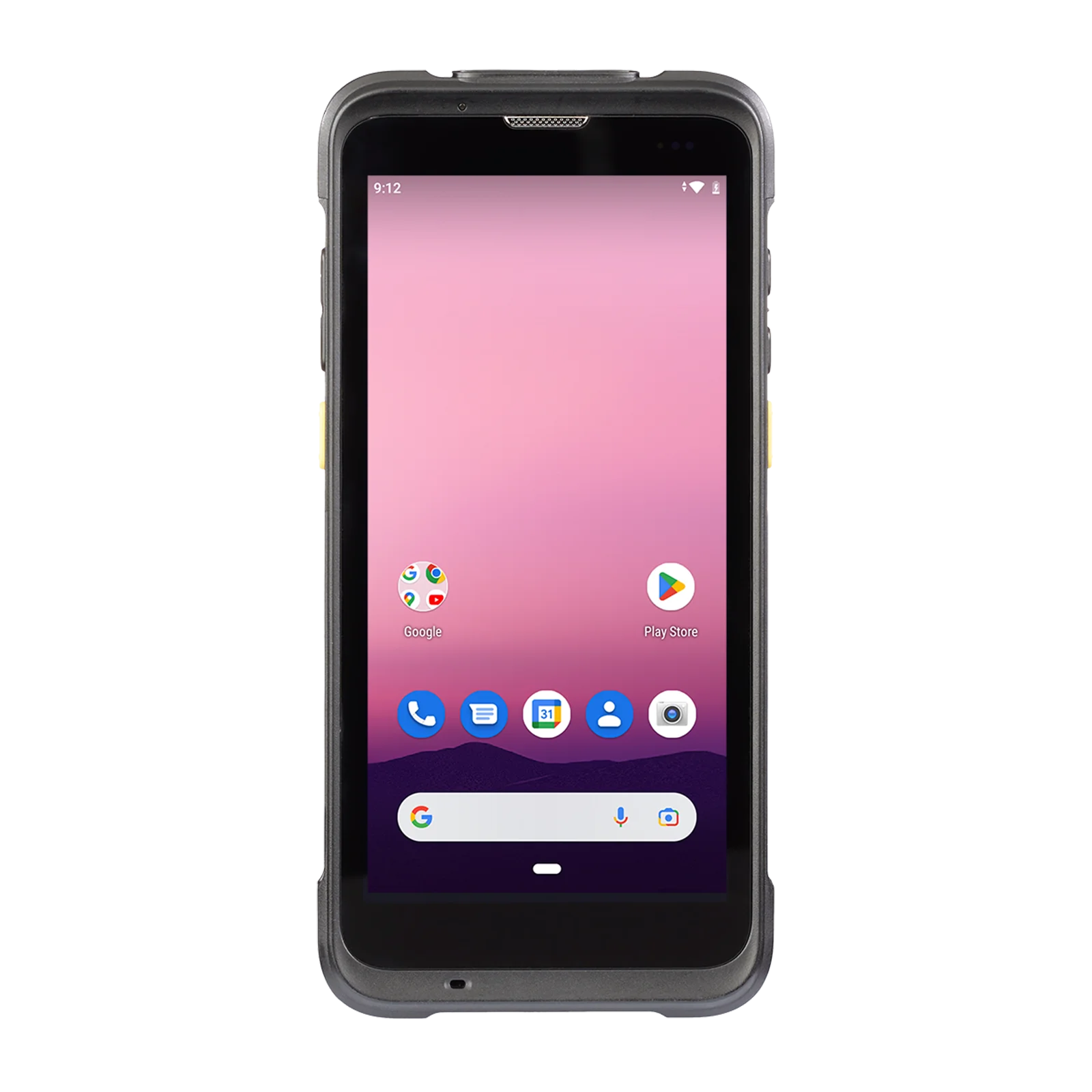

  • 5.5 inch full color FHD touch screen
  • 64 GB memory
  • 13 MP camera with auto focus and LED flash

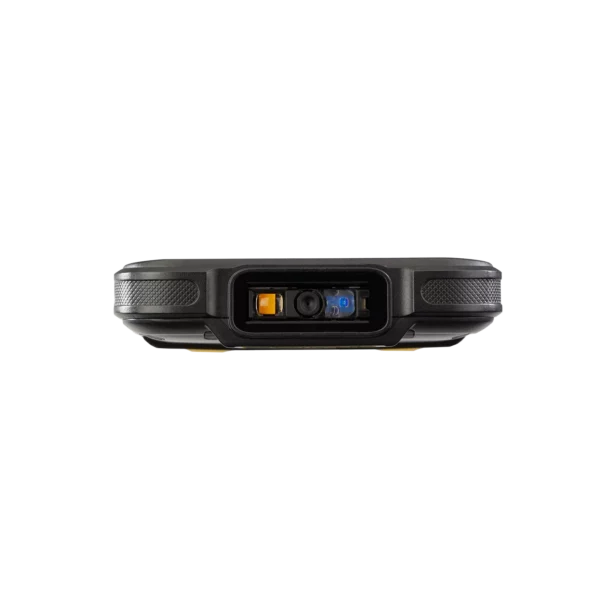

  • High performance Opticon scanner
  • Google Mobile Service (GMS)
  • High capacity battery of 4,420mAh
  • Protection rate at IP65

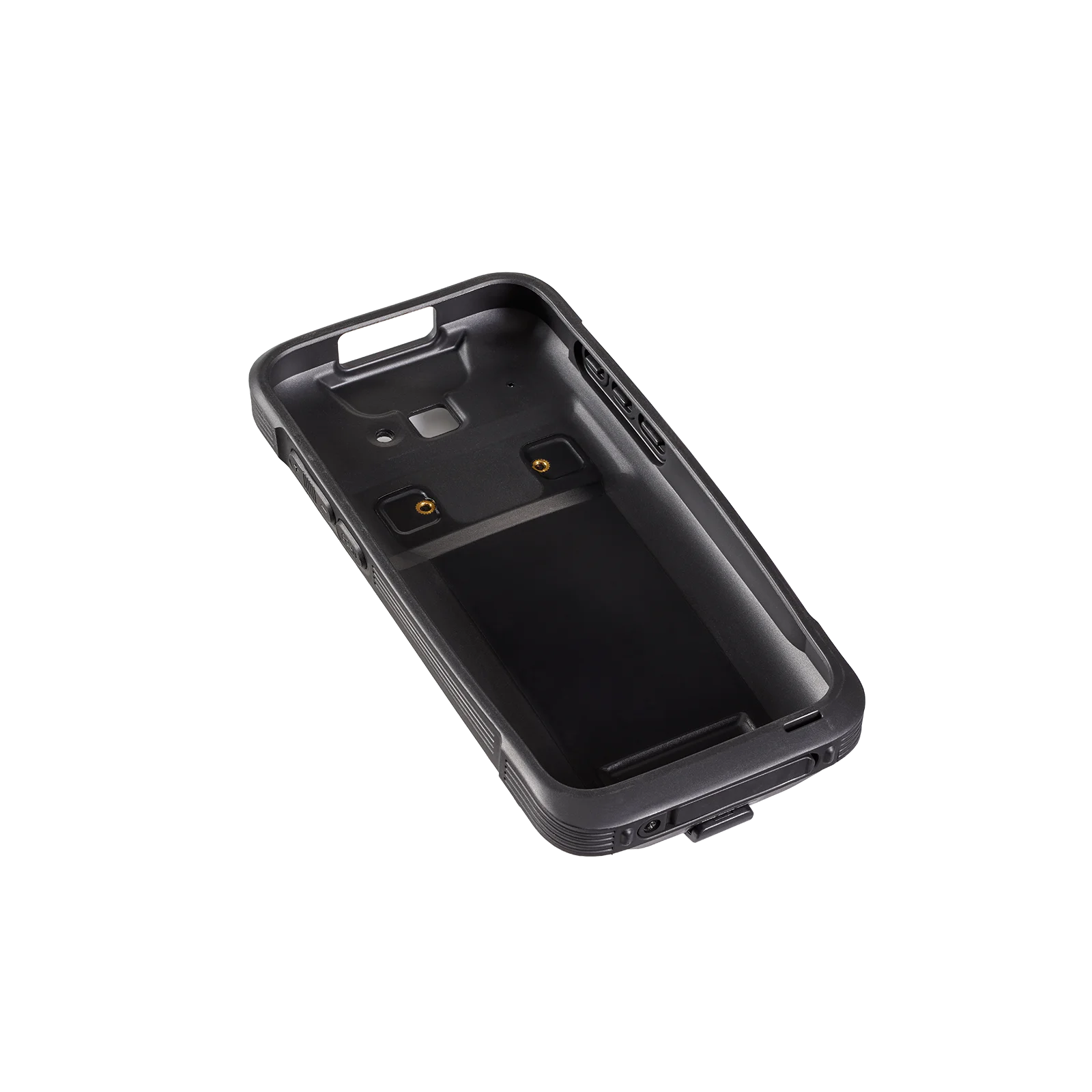

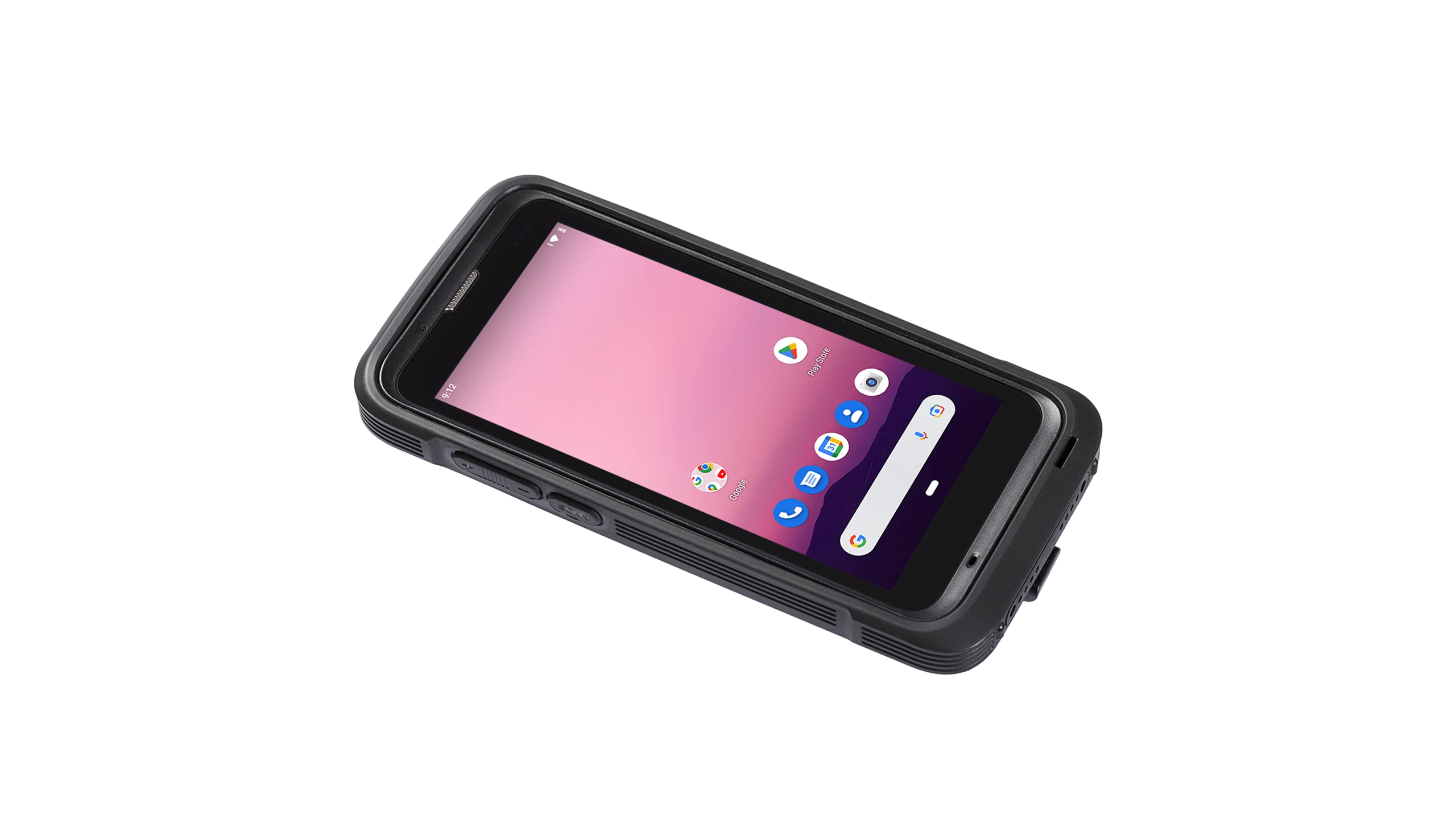

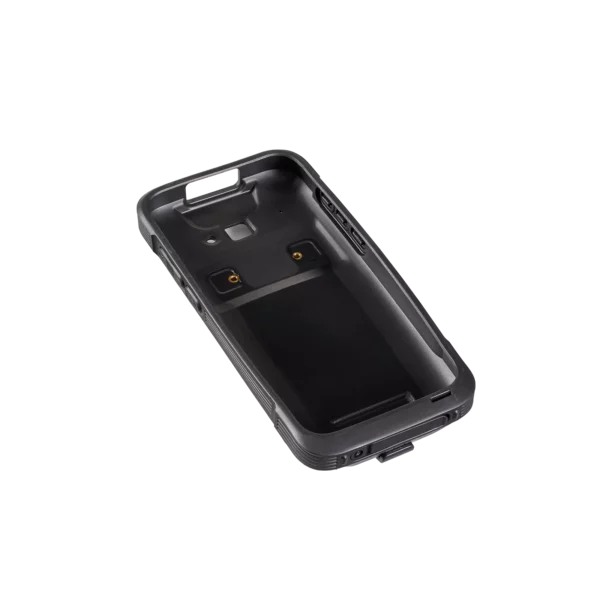

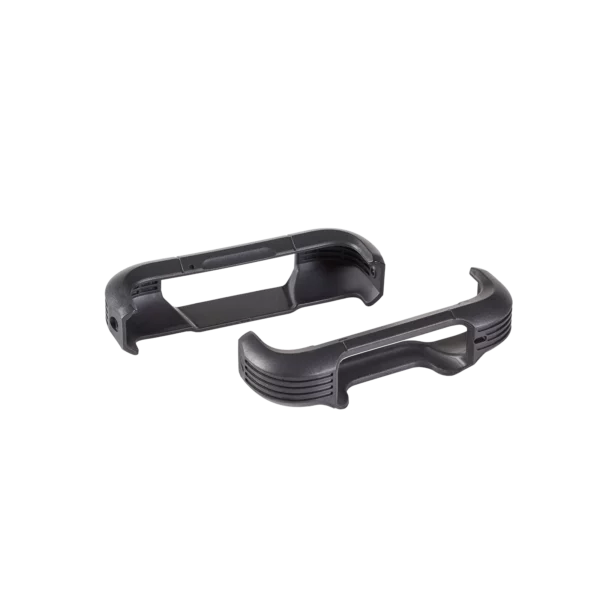

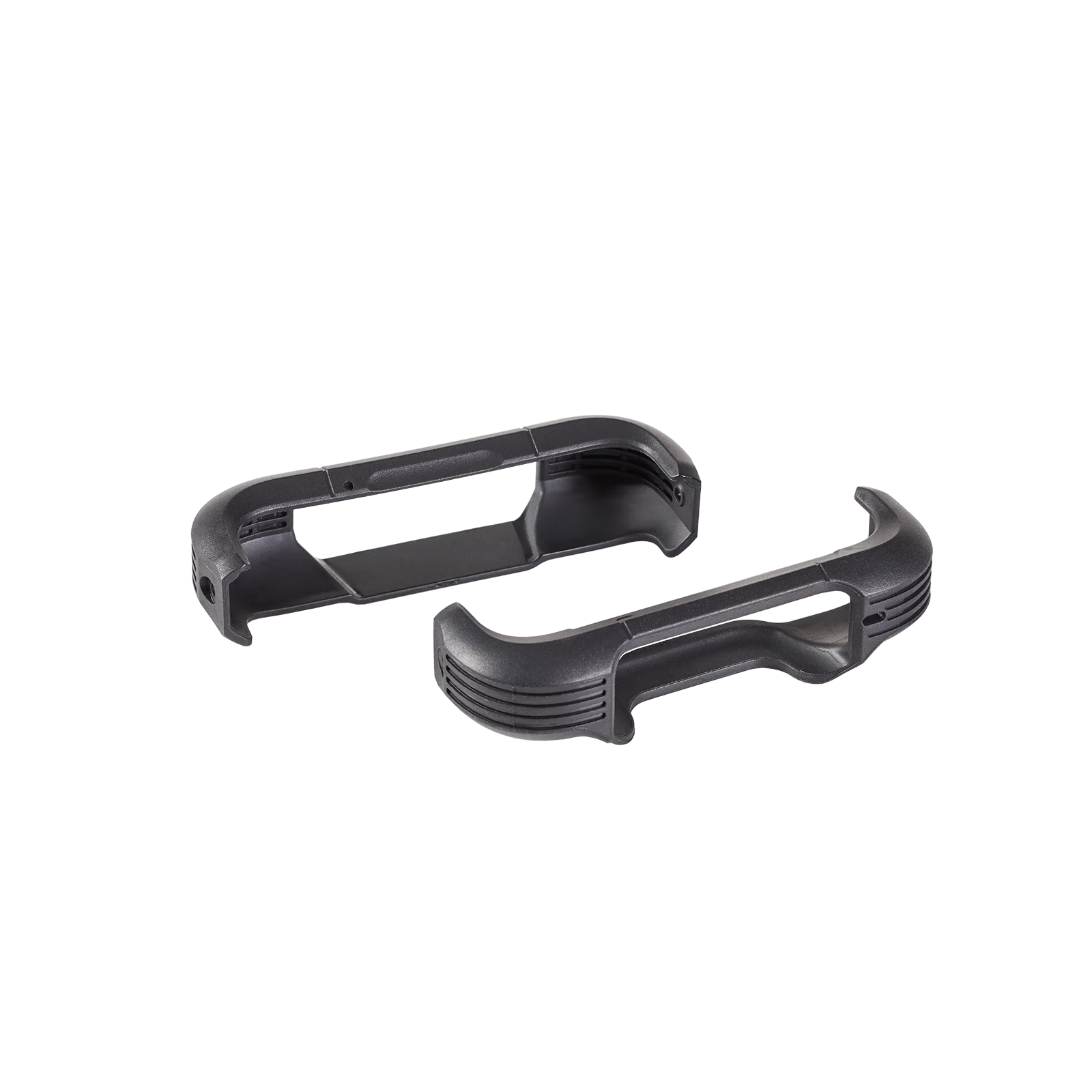

  • Optional rugged rubber boot for drop down protection

The H-35 is a mobile computer is used in a wide variety of markets such as LogisticsPostal, Services, HealthcareRetailIndustrial and Transportation. The H-35 is the perfect solution for optimizing the workflow in your field of business. This rugged mobile computer excels in improving efficiency on the work floor, data gathering and mobility. Due its various features, the H-35 provide an all-in-one solution that raises performance and efficiency to the next level, and optimizes communication among departments in complex work environments. Furthermore, Opticon provides full and immediate support via your local office. With the Opticon H-35 you are investing in a fully supported product including a two year warranty.

Additional information

Form factor

Reading type

Operating system

Display

5.5” FHD, capacitive multi touch panel (18:9), color screen, IPS LTPS 1440×720, Gorilla Glass 3

Communication interface

, , , ,

Bluetooth

GPS

GPS, GLONASS, Beidou, Galileo, internal antenna

NFC

ISO14443 (type A, B, Mifare, Felica), ISO15693

W-LAN

Wi-Fi, IEEE 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band

WAN

Europe/Asia version:
– WCDMA: 850/900/1900/2100MHz
– TD-SCDMA: A/F(B34/B39)
– 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41

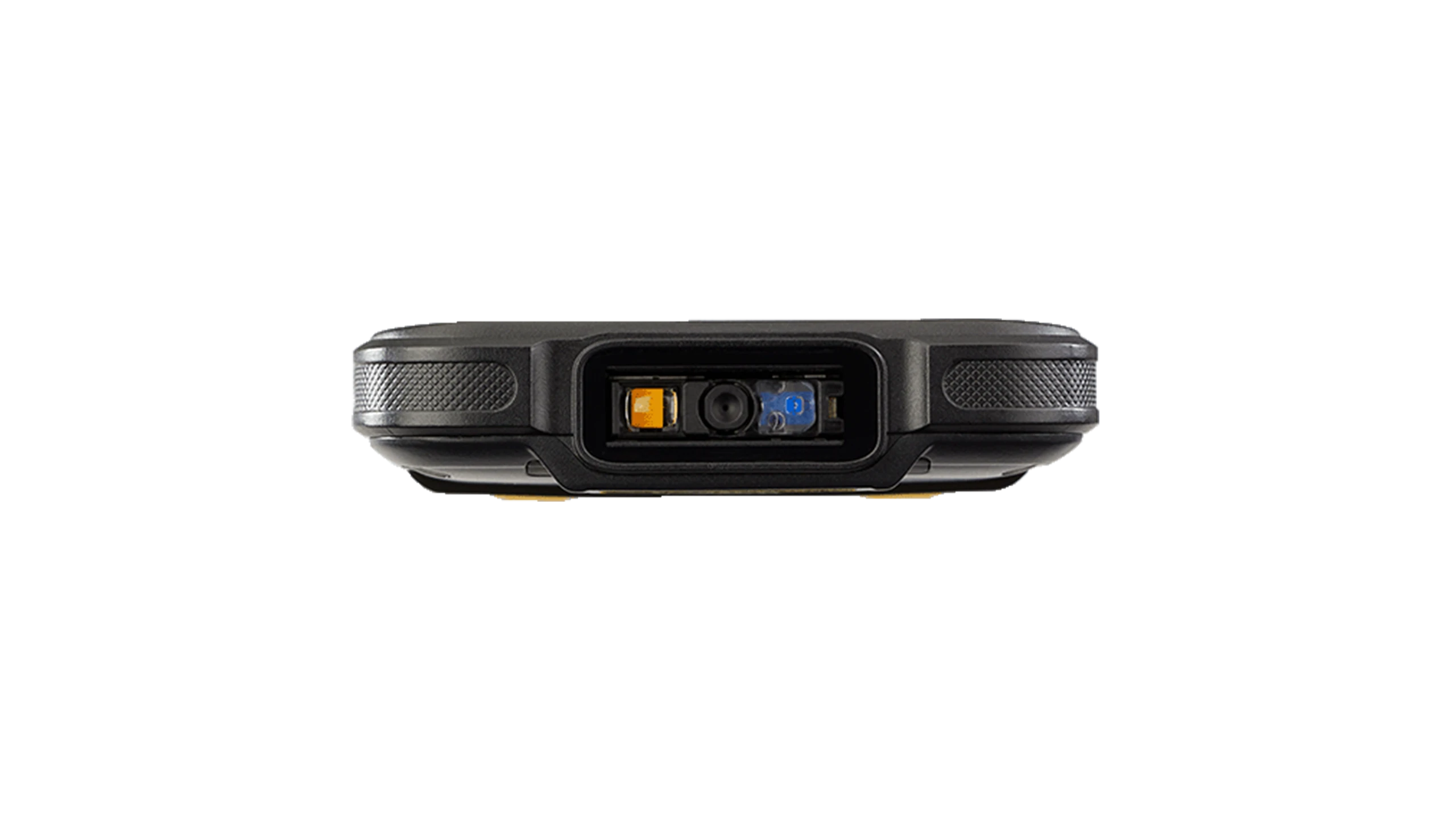

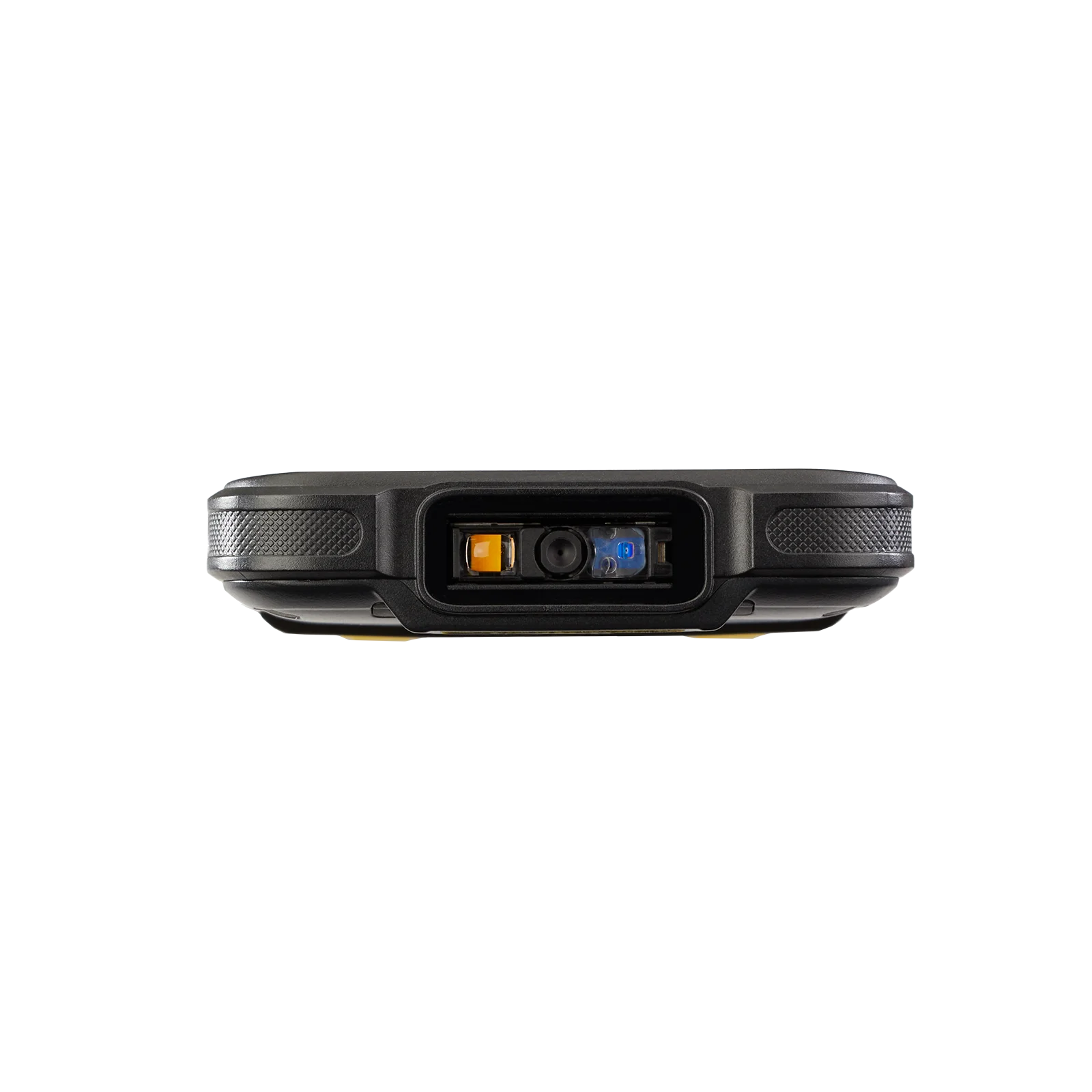

Light source

Red cross aiming laser and warm white illumination LED

Scan method

CMOS area sensor, 1280 x 800 pixels, black and white

Scan rate

Up to 120 fps

Drop test

2.4m / 7.87 ft drop onto concrete surface, with protective rugged rubber boot. 1.8m / 5.9 ft drop onto concrete surface without rugged rubber boot

IP rating

Battery

Lithium-Ion 3.8V 4,420mAh

Dimensions (WxHxD)

76 x 160 x 15.5 mm / 2.99 x 6.3 x 0.61 in

Weight body

Ca. 287 g / 10.1 oz (inc. battery)

Product compliance

CE, CB, FCC, VCCI, TELEC, RoHS, WEEE, REACH

Enclosed

Standard battery 4,420mAh, USB-C cable

Sold separately

H-35 TOF, rugged rubber boot, screen protector, holster,

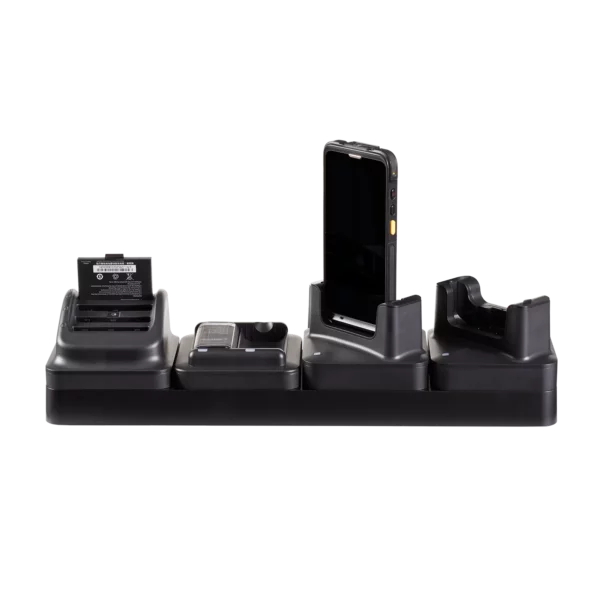

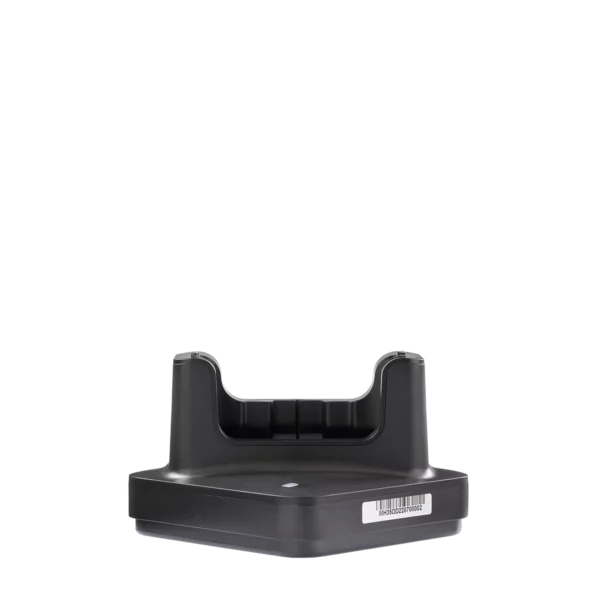

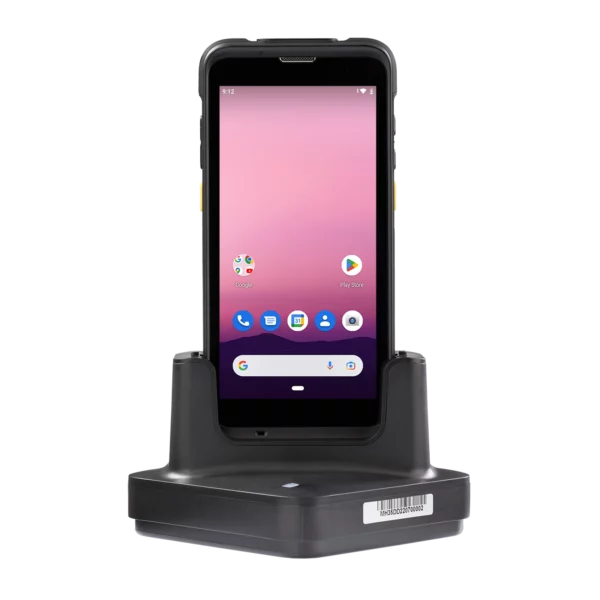

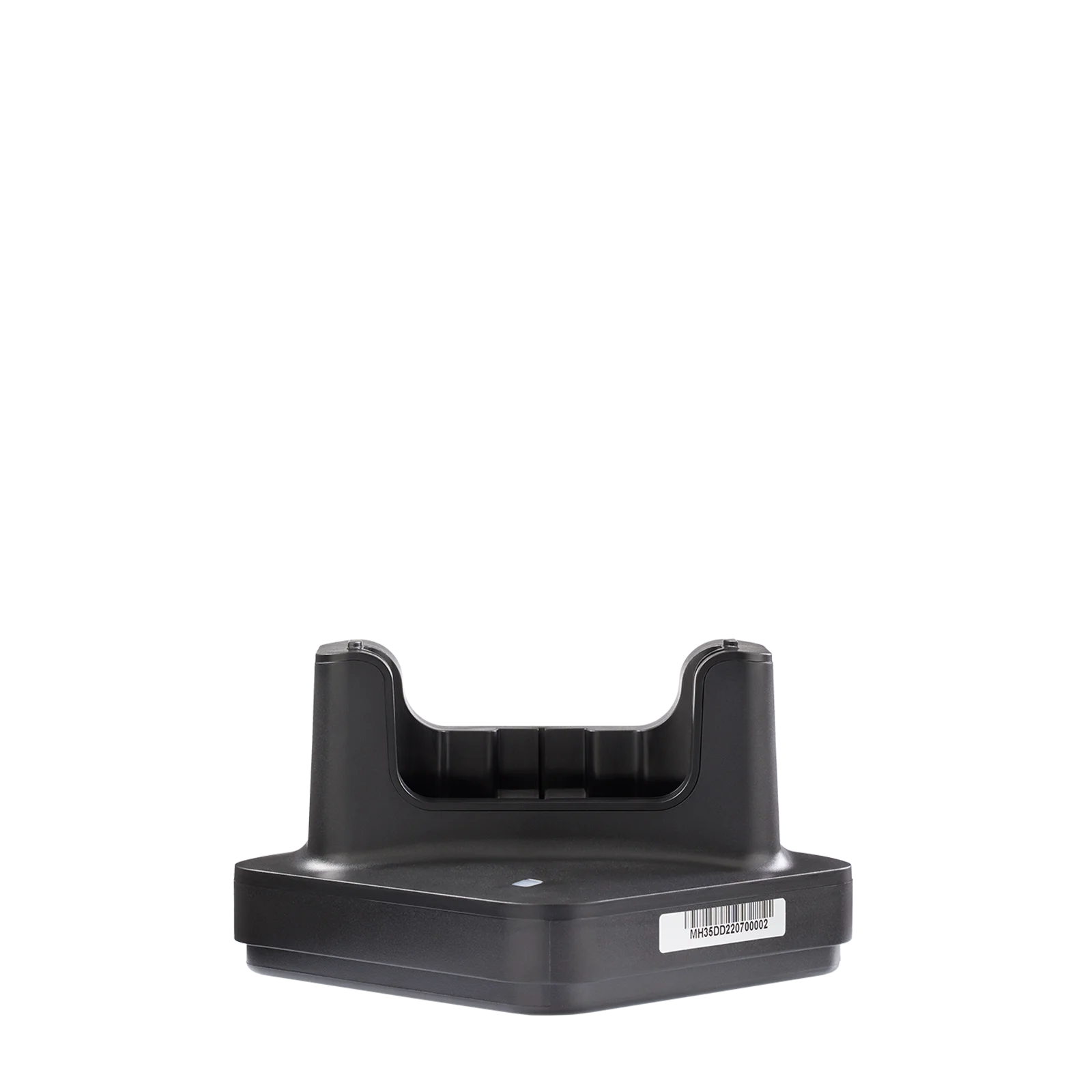

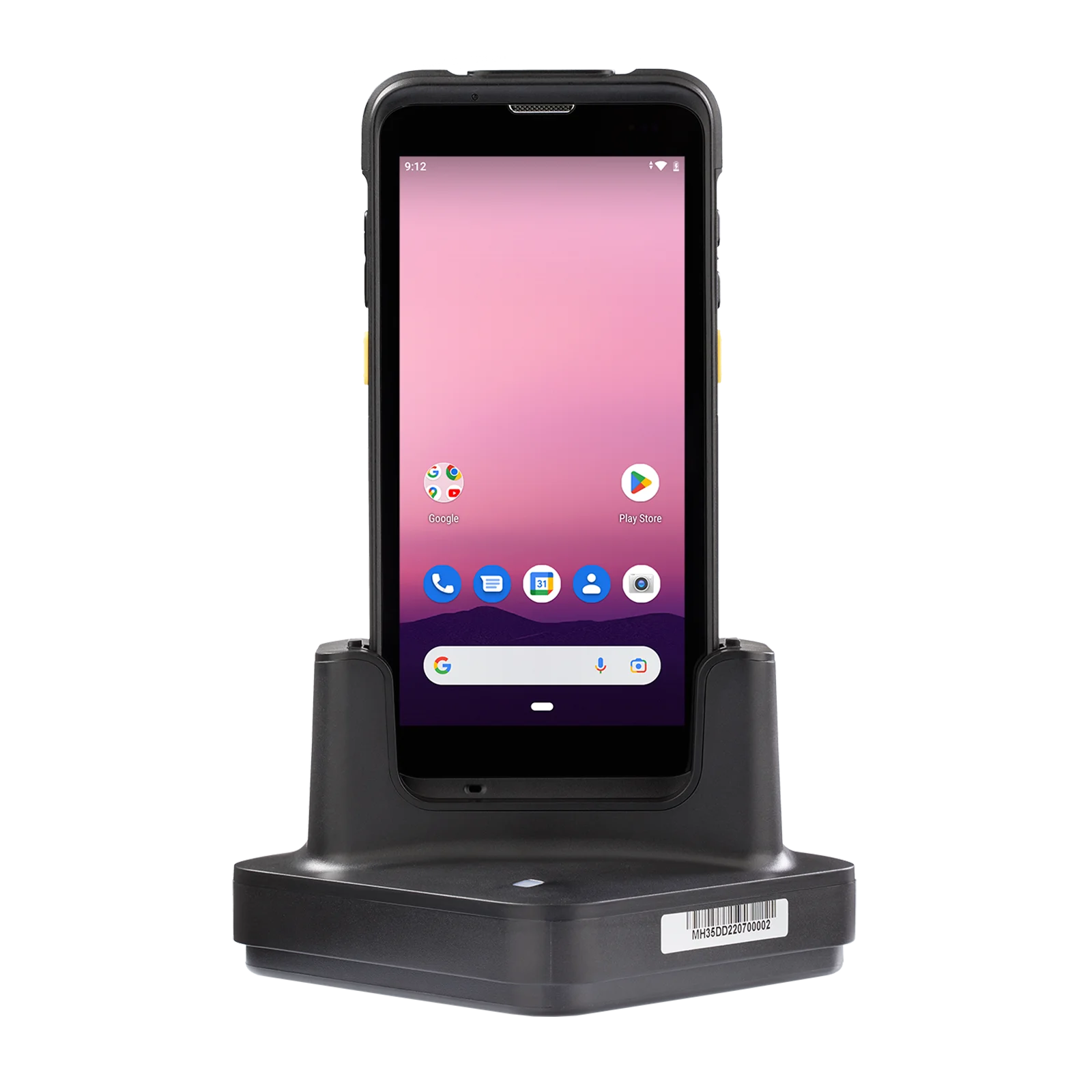

Cradles: single charging cradle, single charging cradle ethernet, power supply

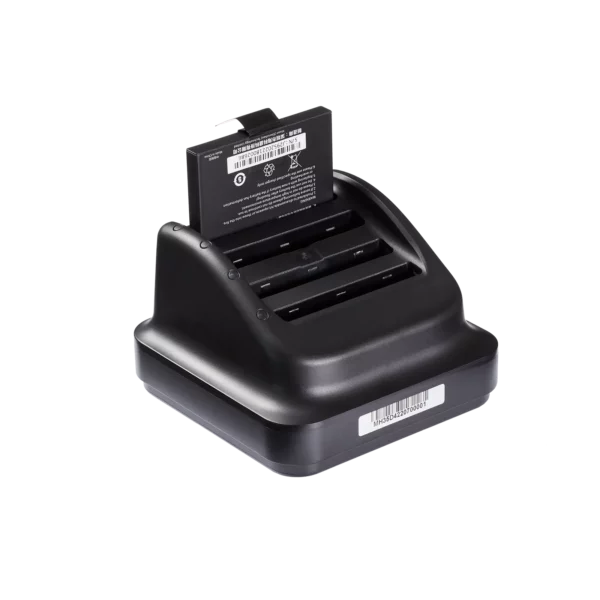

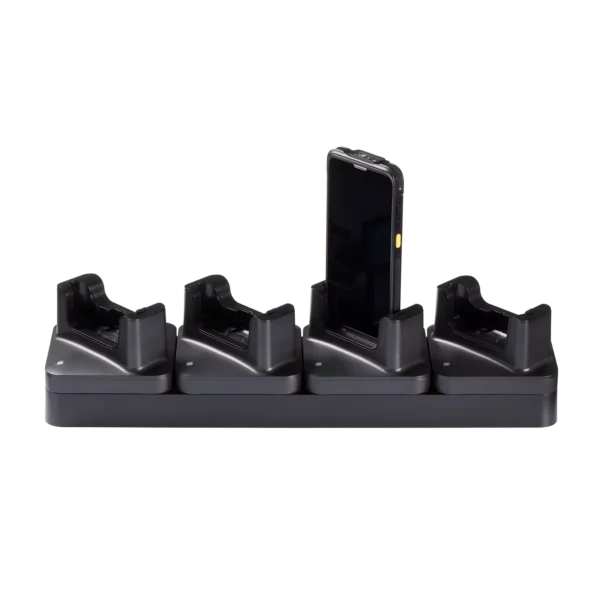

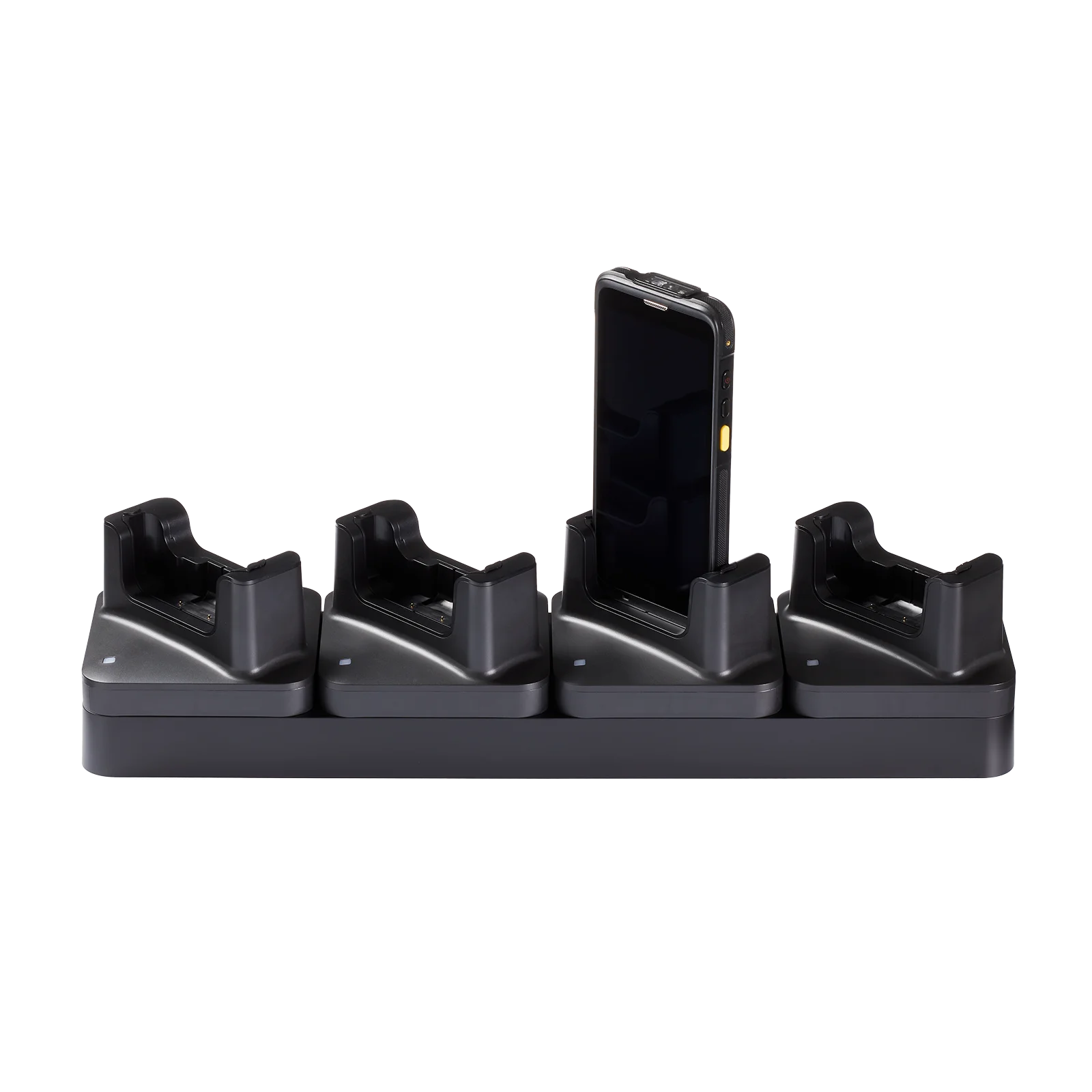

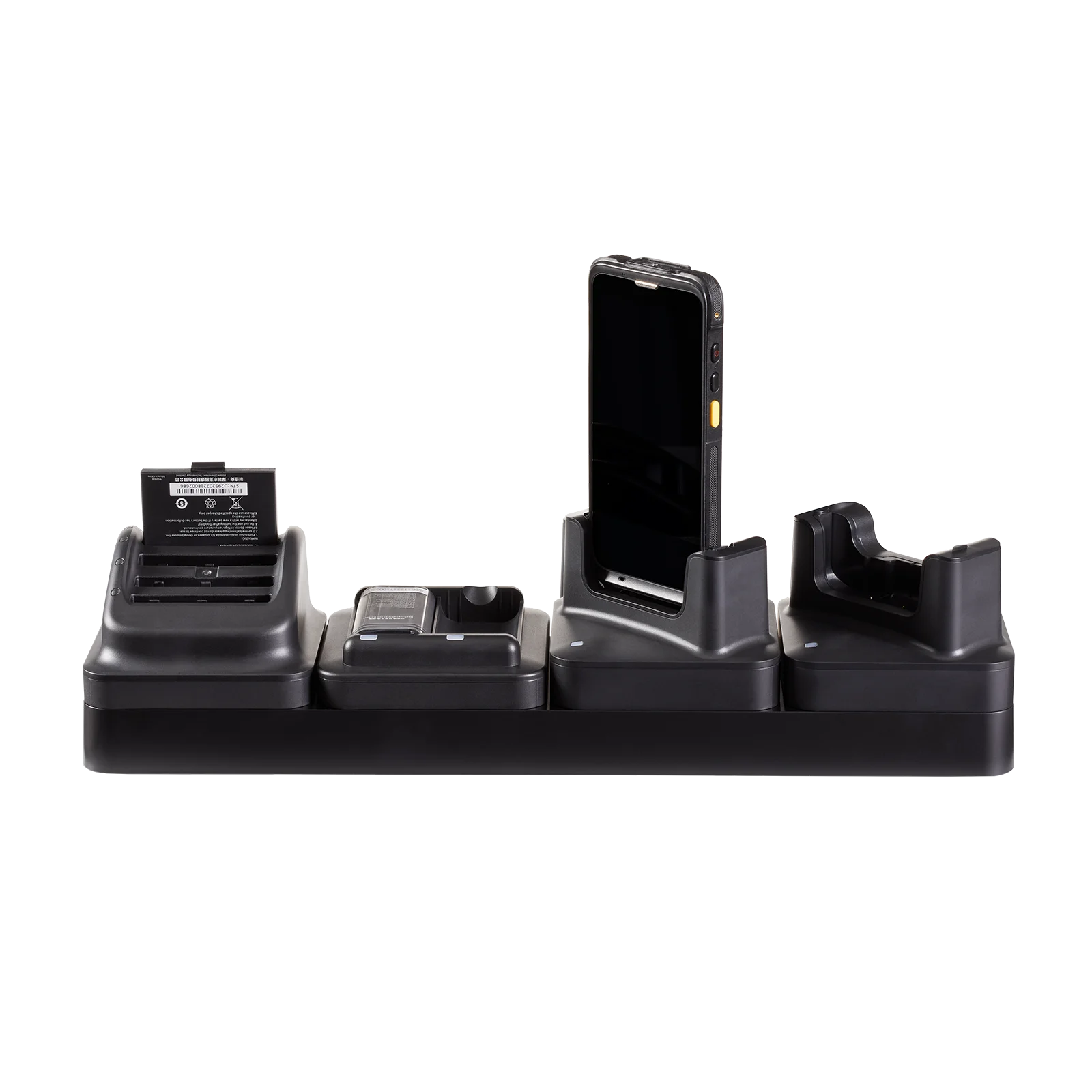

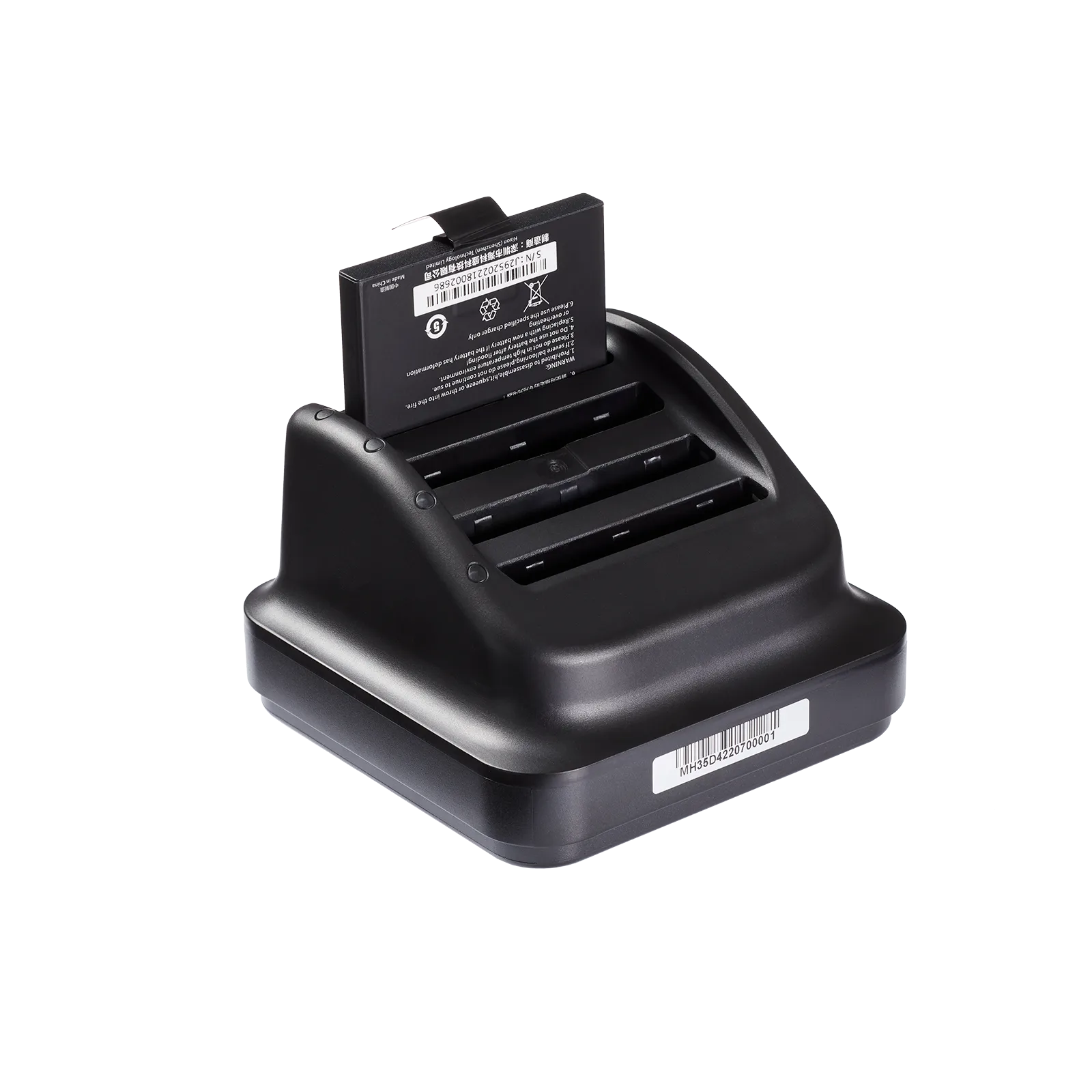

Multi cradles: 4-slot and 2-slot multi battery charger.

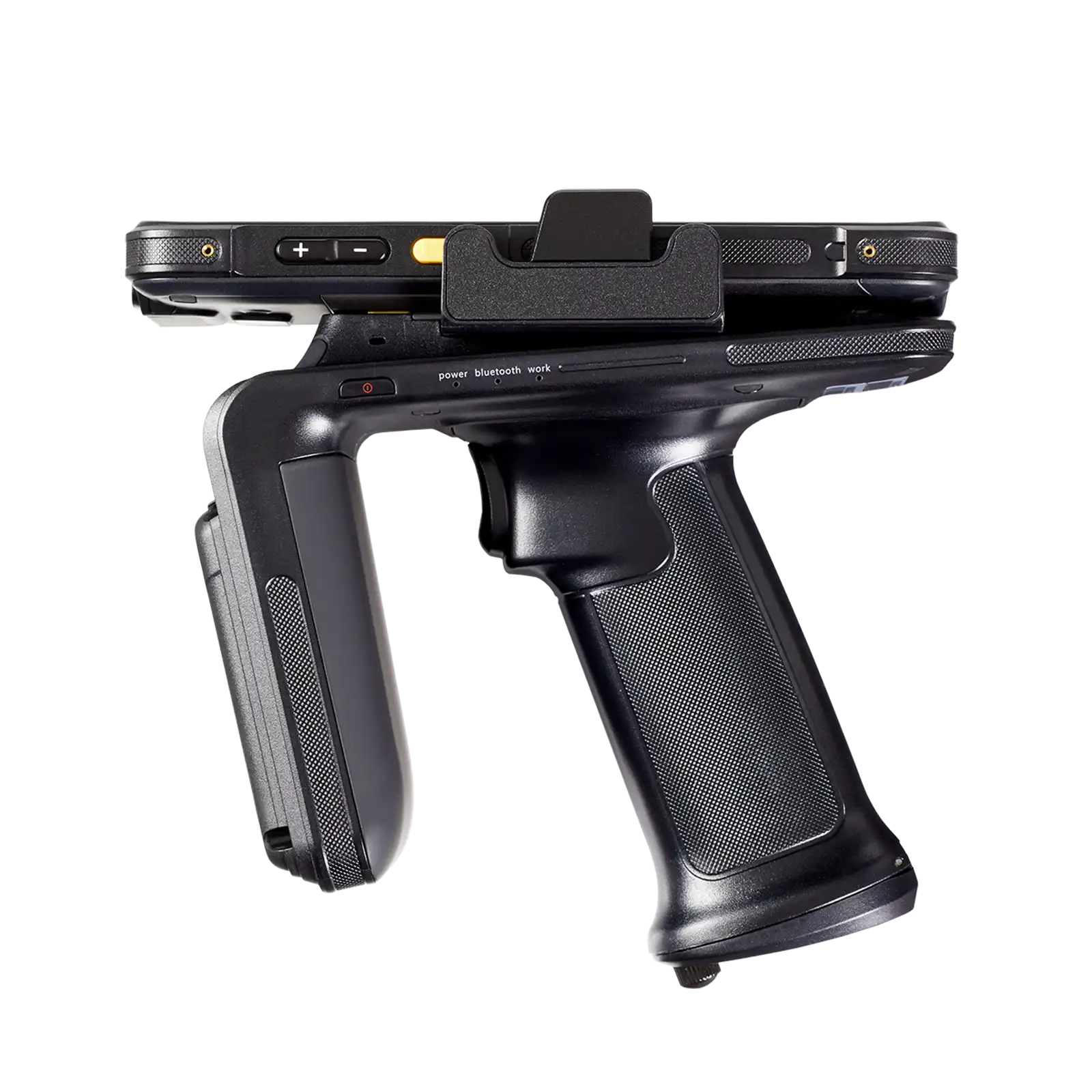

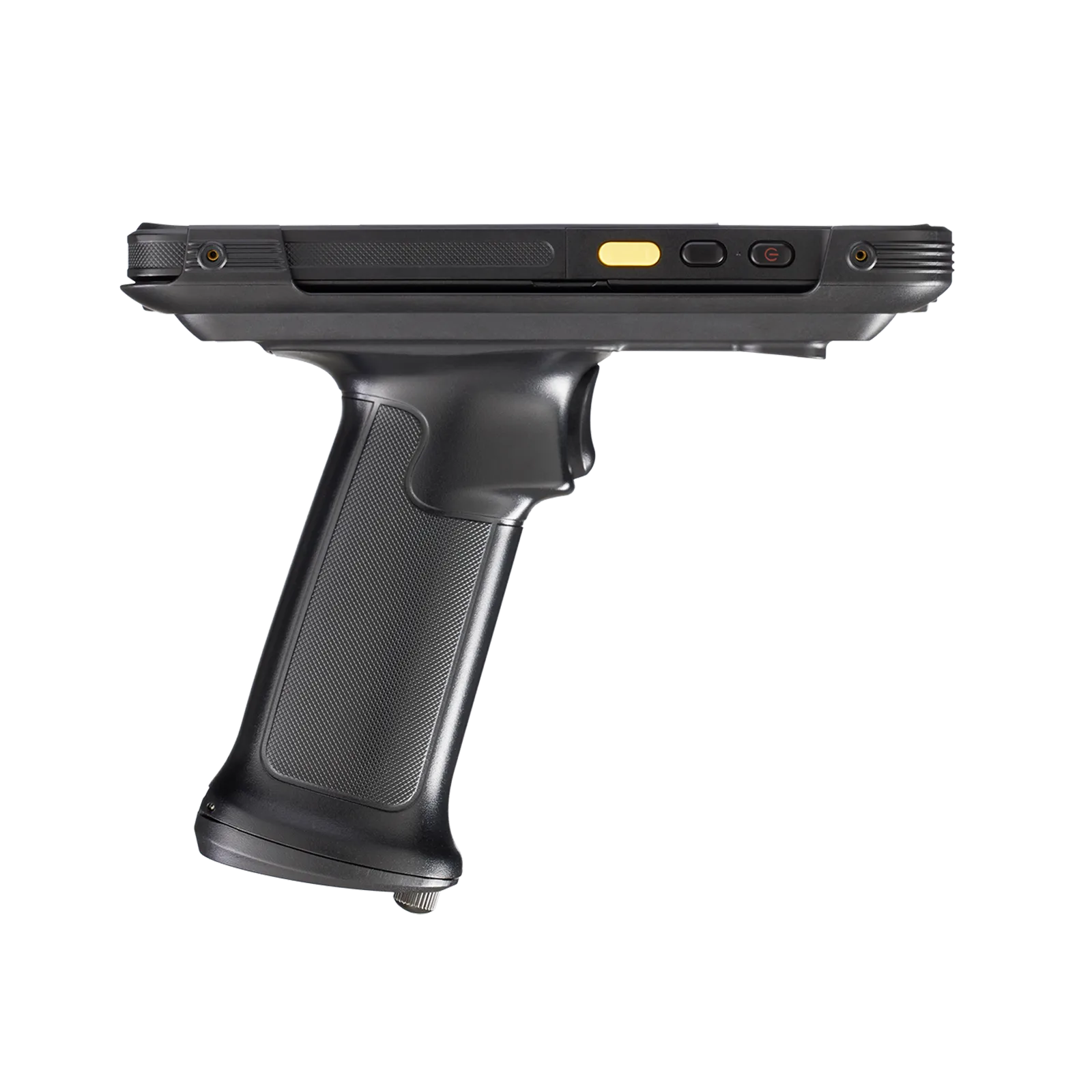

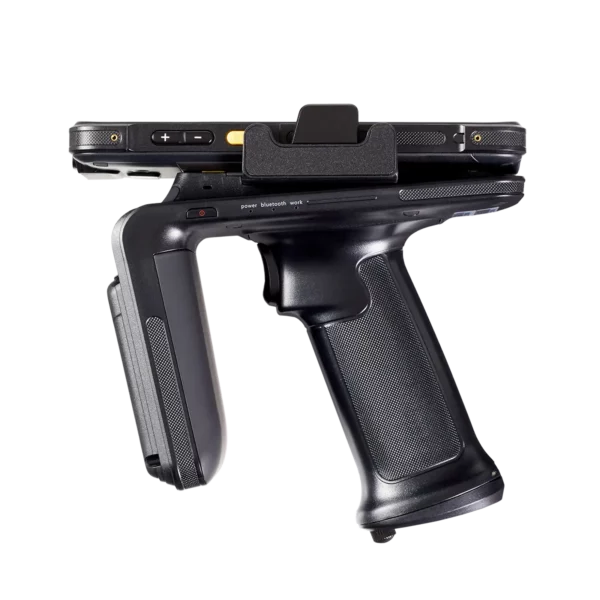

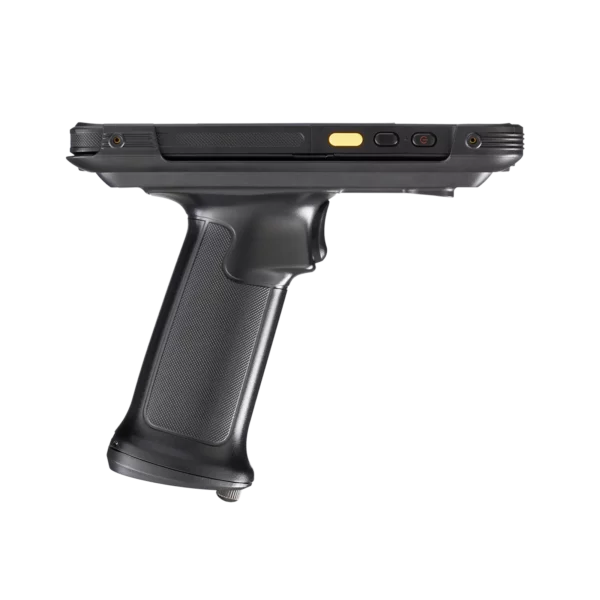

Pistol grip: Pistol grip, pistol grip with NFC and battery

ACCESSORIES / RELATED PRODUCTS

Mobile computers are used daily in environments like order picking, inventory, price checking, parcel delivery, etc. With Opticon’s H-35 you have all necessary functionalities in the palm of your hand – powerful scan engine, display, wifi, bluetooth, 4G, camera, Android operating system, virtual keyboard, power, etc.

  • Rugged mobile computer with a fully integrated, Opticon high speed 2D imager barcode scanner
  • Android 11 for familiar and convenient navigation
  • Qualcomm 2.0 GHz Octa-core
  • 5.5” brilliant color touchscreen display with Gorilla® Glass 3
  • Communications: Bluetooth 5.1, 4G WLAN, Wi-Fi, NFC, USB, GPS
  • Rear facing 13 MP auto-focus digital camera, LED flash with torch
  • IP65 rating against dust and moisture, survives multiple 2.4 m drops to concrete, with rugged rubber boot
  • Memory: 64GB EMMC, 4GB LPDDR4X RAM and MicroSD
  • 76 x 160 x 15.5 mm (W x H x D) and 287 grams
  • User/field-replaceable battery packs, 4,420mAh, no special tool needed
  • Supports Quick-Charge 3.0

Look for yourself how the H-35 is the ideal solution for today’s modern mobile workforce, by integrating barcode scanning, analytics, and service solutions for industries such as logistics, postal services, healthcare, merchandising, and transportation. The H-35 is equipped with a powerful Opticon 2D imager barcode scanner, Android 11, Bluetooth 5.1, NFC supported and IP65 rating.

Opticon offers a load of optional accessories for the H-35 to fit your needs. In this video all available accessories are shown and explained by Jurgen. There is also a version available that features a ToF (time-of-flight) camera. With these accessories you make the most out of your H-35 usage day by day.

In this H-35 unboxing video you see the product being taken out of the box and used for the first time by a real person. You get an untainted view of the product, check its quality and packaging. Further the hardware features are shown and how to install the battery.
