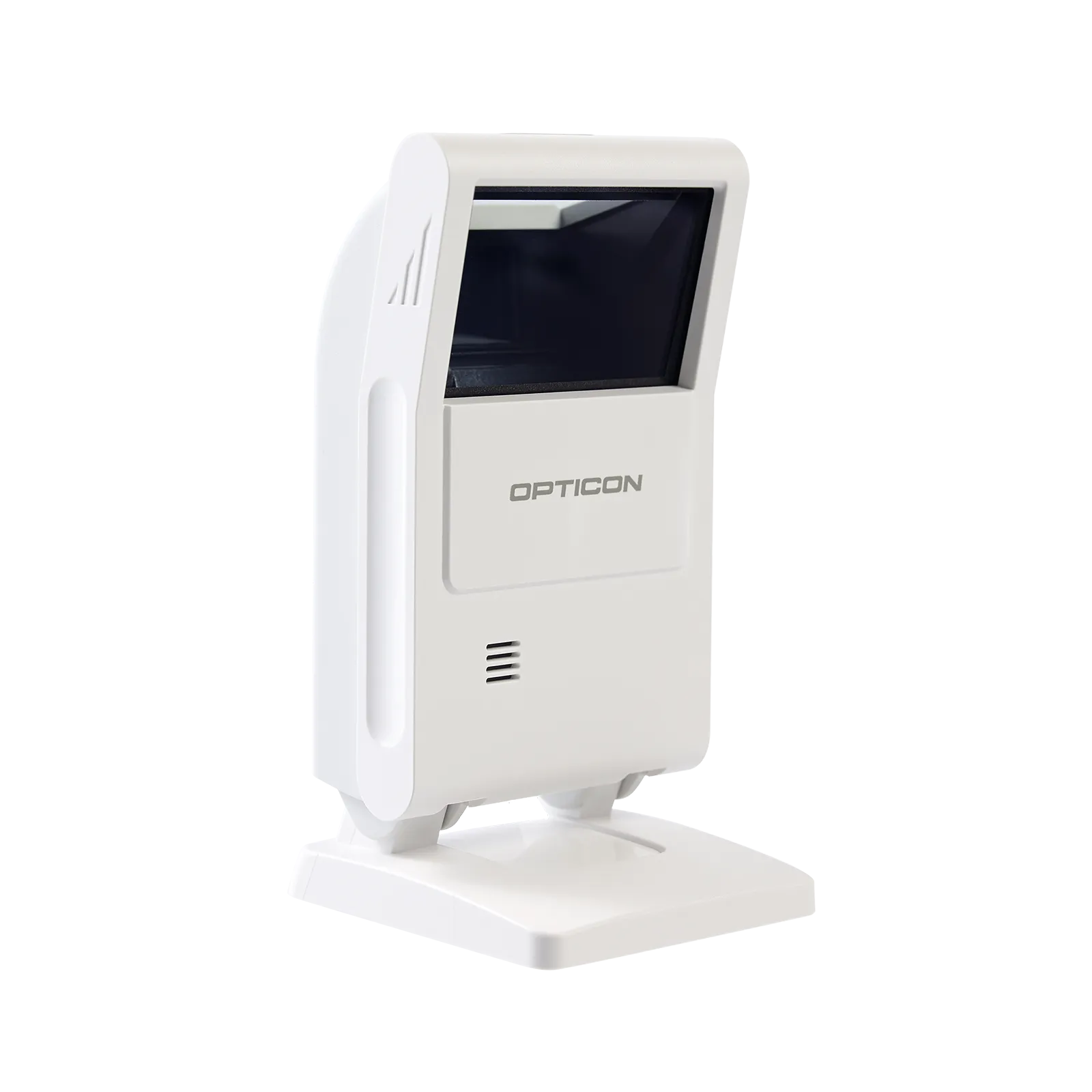

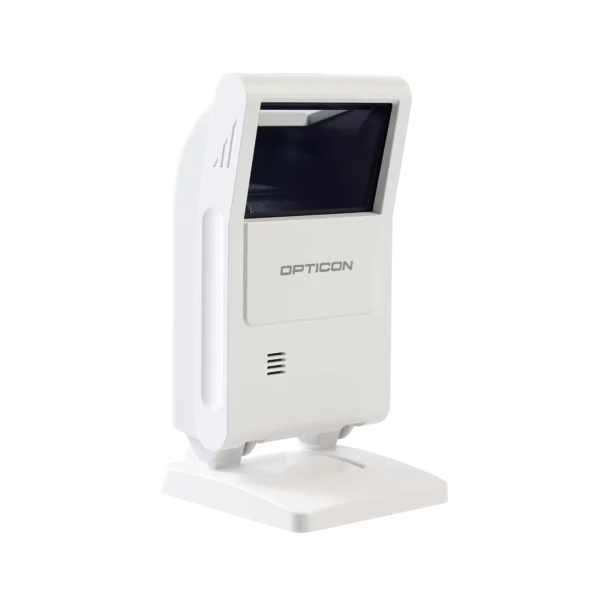

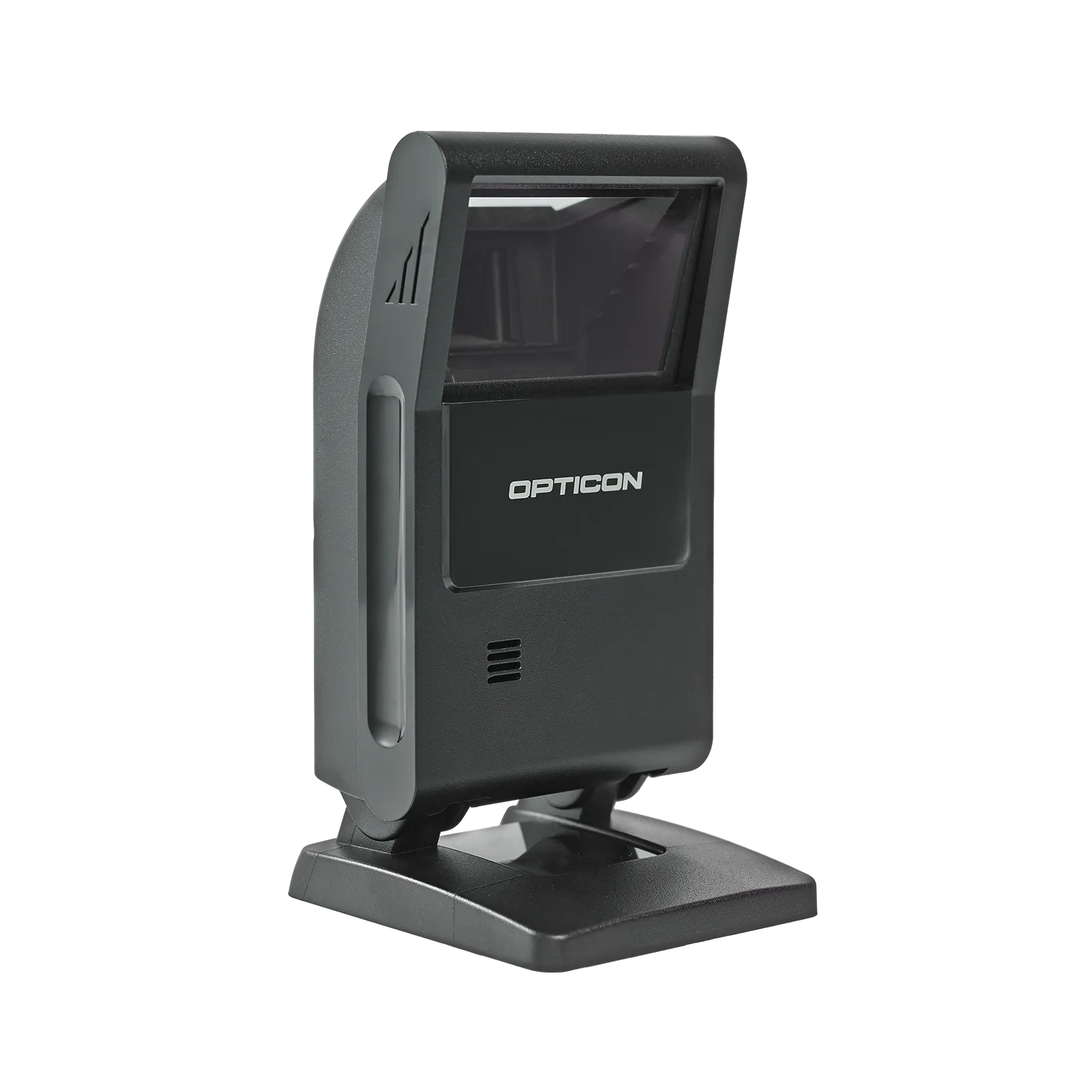

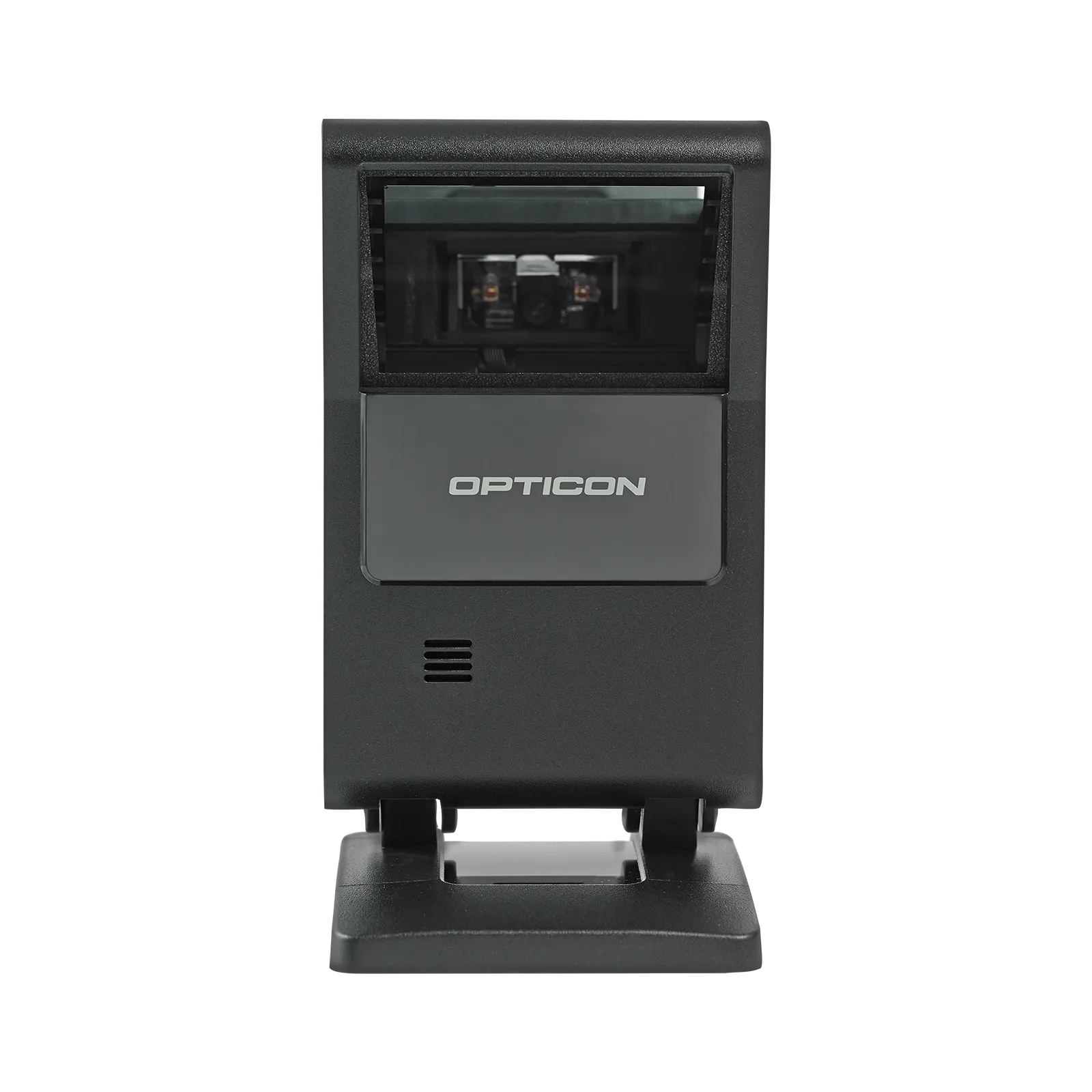

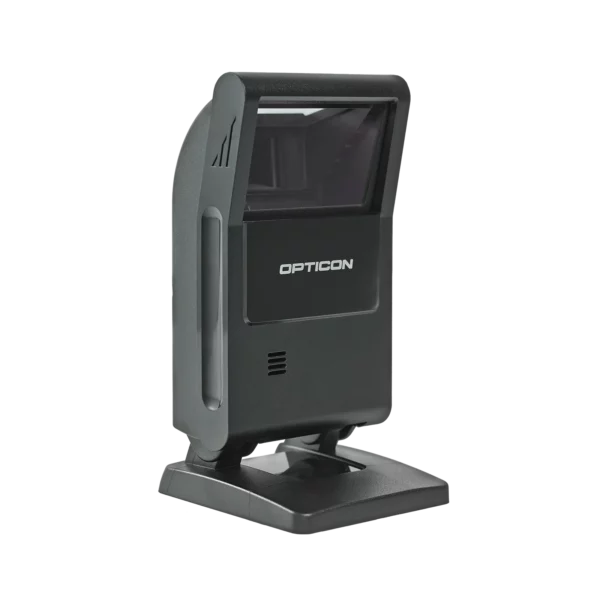

M-10

The omnidirectionial scanner

SKU: 13356 Categories: , ,

Description

The M-10 is an omnidirectional presentation barcode scanner, meaning that all barcodes are scanned no matter how you hold it in front of the scanner; upside down, downside up, it’s no problem for this presentation scanner. Offering our high-performance 2D CMOS Imager along with a well thought out ergonomic design, which allows the barcode scanner to be used in the hand or traditionally on a desk with its adjustable stand.

The M-10 is a unique product in Opticon’s range. The M-10 is one of the best presentation barcode scanner that we offer, combining a powerful 2D CMOS Imager with a stylish design and Omni-directional capabilities. The scanner can be triggered manually or automatically, scanning at a maximum speed of 60 fps. With this barcode scanner, you can scan hands-free, just position the scanner on your counter or desk and move the barcode in front of the laser. The barcode scanner will do the rest of the work.

The barcode scanner is also durable with a rating of IP52 and a drop resistance of 1.5m upon concrete. The communication is USB and the black color makes it suitable for any counter.

The M-10 comes with some incredible features:

  • Omni-directional scanning
  • Rapid performance; 60 fps
  • Stylish design
  • IP52

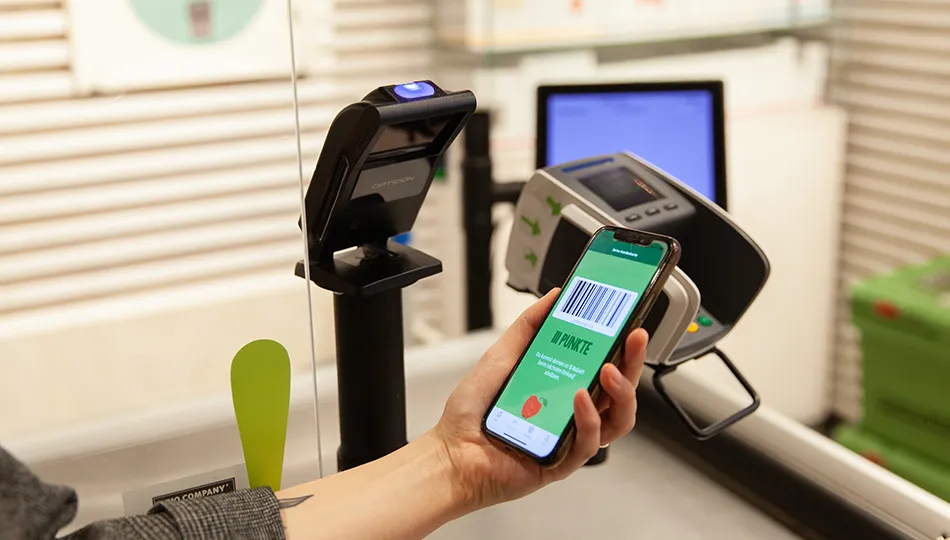

The combination of an impressive design, ease of use, and an excellent price-performance ratio makes the M-10 the ideal solution for point-of-sale (POS) check-out applications, reading barcodes from mobile phones in mobile marketing applications and document handling within banks and post offices.

Additional information

Form factor

Connection

Reading type

Communication interface

,

RS232

DB9 connector with external power supply, 300 bps ~115200 bps
USB

USB: Full-speed 12Mbps (HID/VCP)
Light source

2 red LEDs light source – 1 green aiming LED
Scan method

WVGA CMOS area sensor, 752 x 480 pixels
Scan rate

Up to 60 fps
Drop test

1.5 m / 5 ft drop onto concrete surface
IP rating

Dimensions (WxHxD)

72 x 70 x 139 mm / 2.83 x 2.76 x 5.47 in
Weight body

Ca. 250 g / 8.82 oz
Product compliance

CE, FCC, VCCI, IEC62471-1, EN55022, EN55024, RoHS

Reviews

There are no reviews yet.

Be the first to review “M-10”

Your email address will not be published. Required fields are marked *

Contact

Consent needed before watching Youtube

On this location is content wrapped that originates from YouTube. The showing of this can lead to YouTube collecting personal data like IP and/or places cookies on your device. You need to explicitly consent this before watching the video.

Open Cookie preferences Watch on YouTube

Opticon M-10: The perfect omnidirectional scanner

The M-10 is an omnidirectional presentation scanner, meaning that all barcodes are scanned no matter how you hold it in front of the scanner; upside down, downside up, it’s no problem for this presentation scanner.



Offering our high-performance 2D CMOS Imager along with a well thought out ergonomic design, which allows the scanner to be used in the hand or traditionally on a desk with its adjustable stand.
