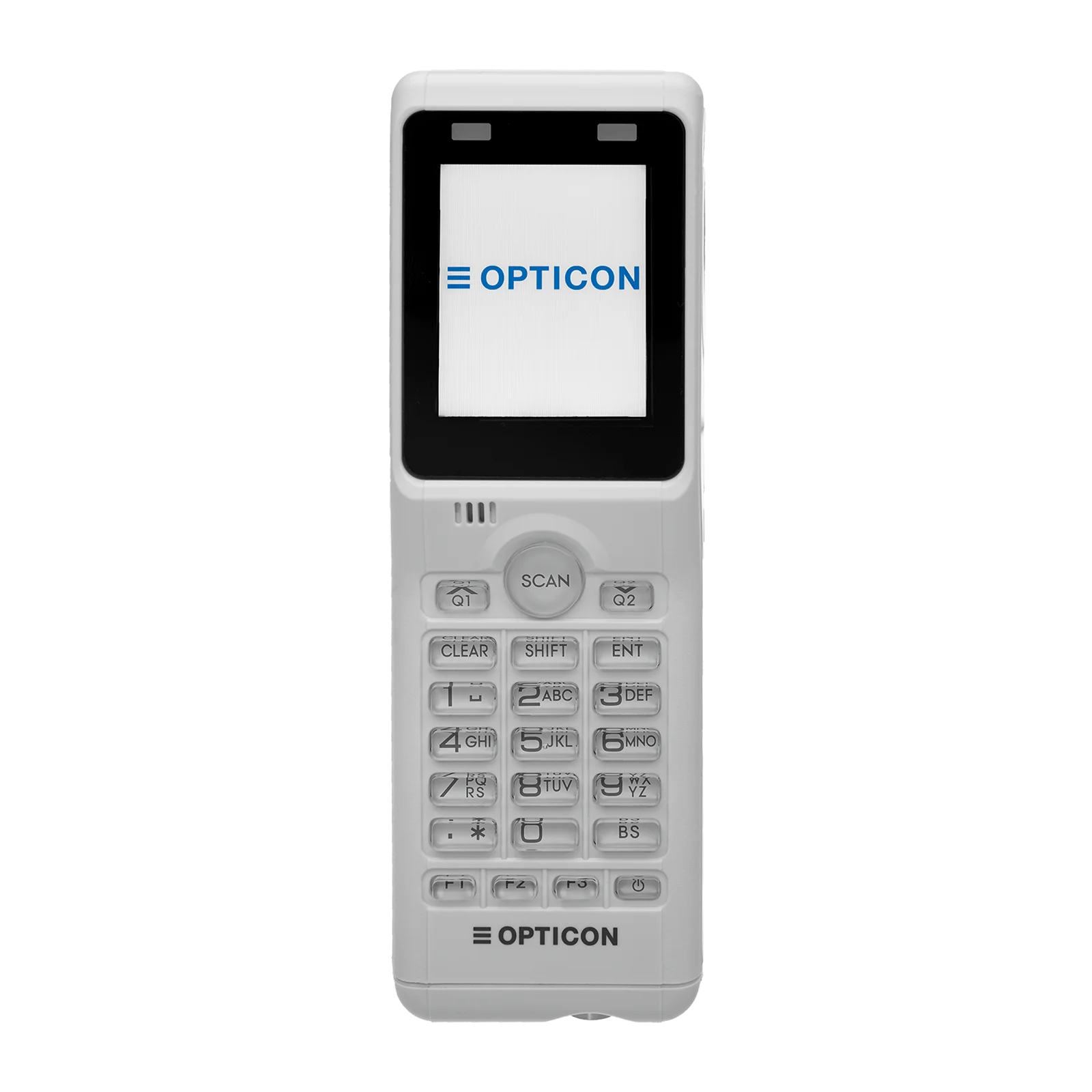

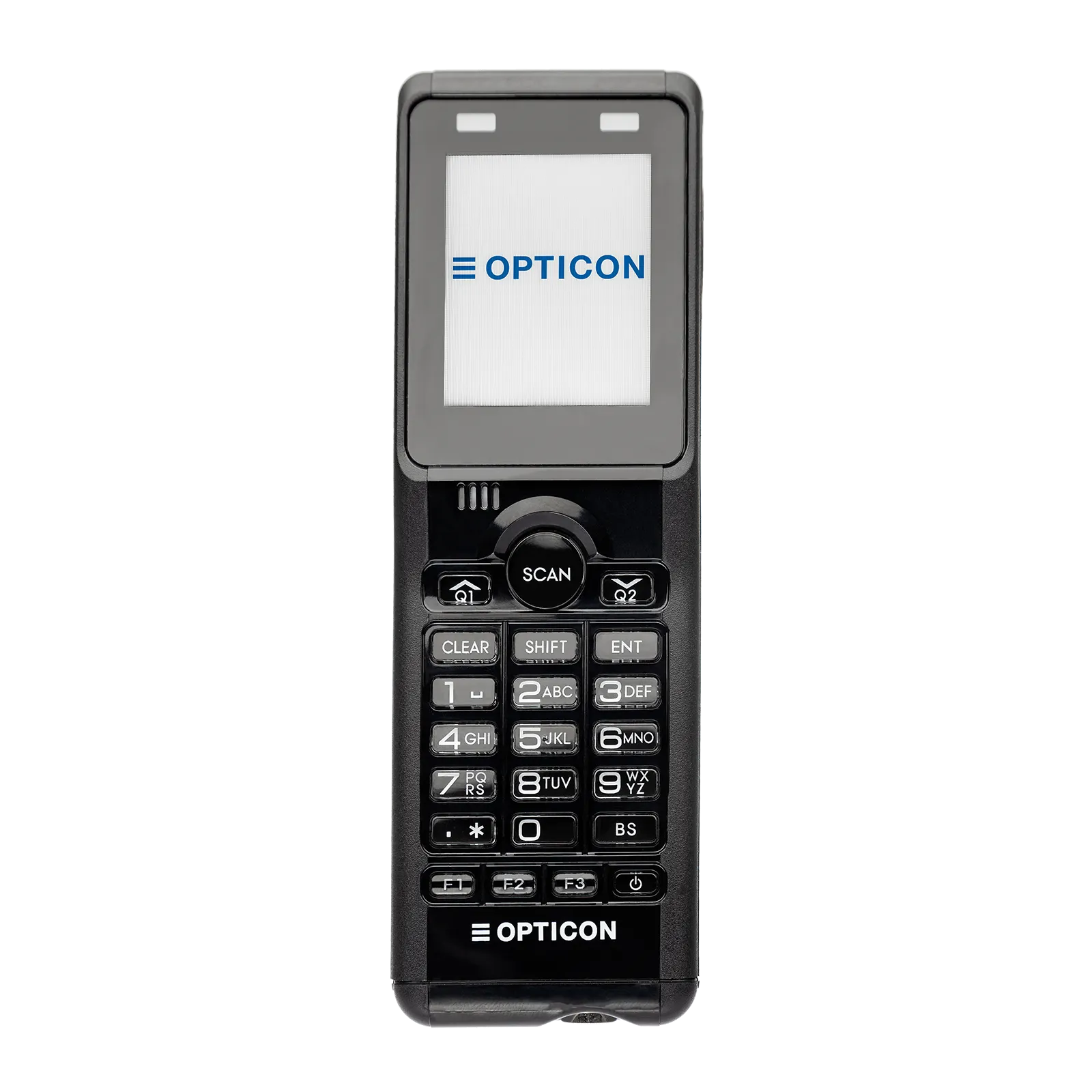

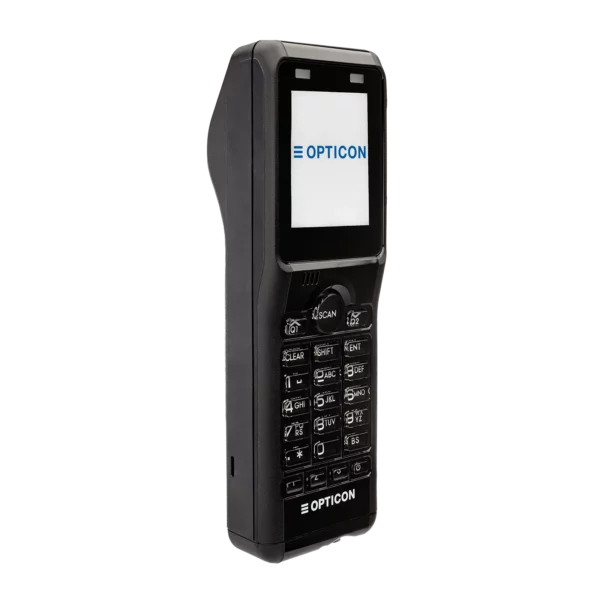

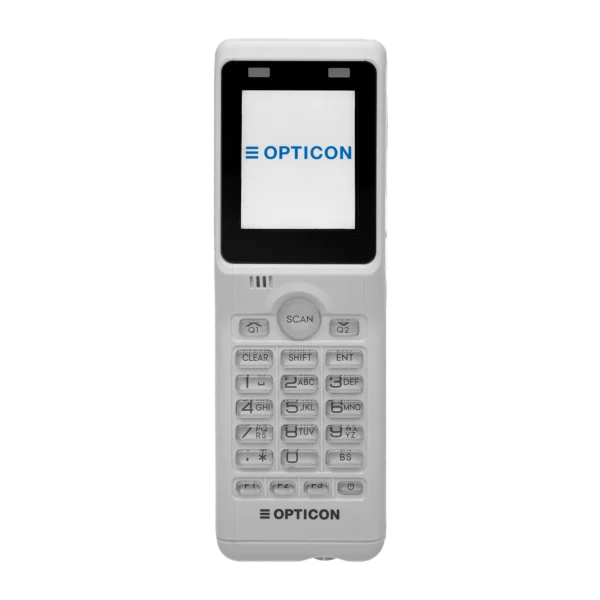

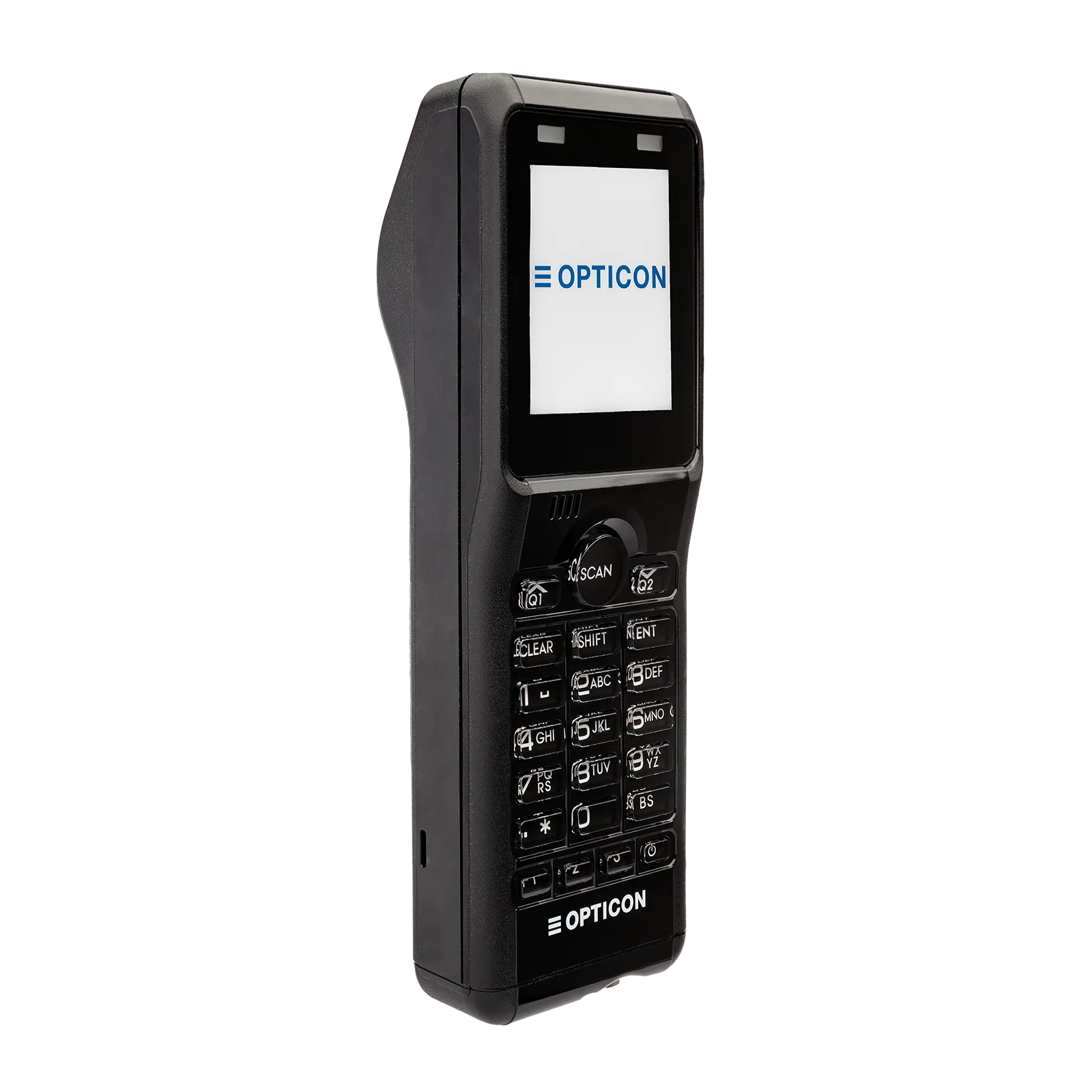

OPH-5000i

Reliable and durable proprietary mobile computer

Description

The OPH-5000i is a reliable and durable proprietary data terminal with wireless LAN connection and NFC capabilities. It features an elegant design with a high speed, integrated 2D scanner that quickly and accurately scans barcodes.

The handheld computer is a batch scanner that has a fast processor with a long operating time. The bright LCD screen is 128 x 160 pixels, thus, increasing the readability. The numeric keypad with a large scan key will make scanning and entering data easier. It is a lightweight scanner, weighing only 120 grams and has the size of a regular phone, making it convenient to carry while in use. The cradle makes it possible to charge wirelessly providing additional convenience.

Opticon also offers a special SDK providing the functionality to create customized user scanning solutions.

Features

A few highlights that make the OPH-5000i a smart buy:

  • Integrated high speed 2D imager barcode scanner
  • Intuitive 22-key keyboard
  • Compact size and weight
  • Bright LCD screen
  • Communication via wireless LAN, Bluetooth or USB interface

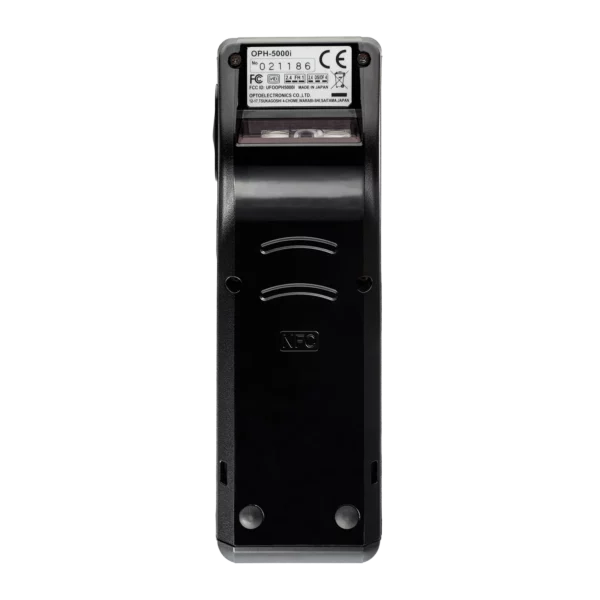

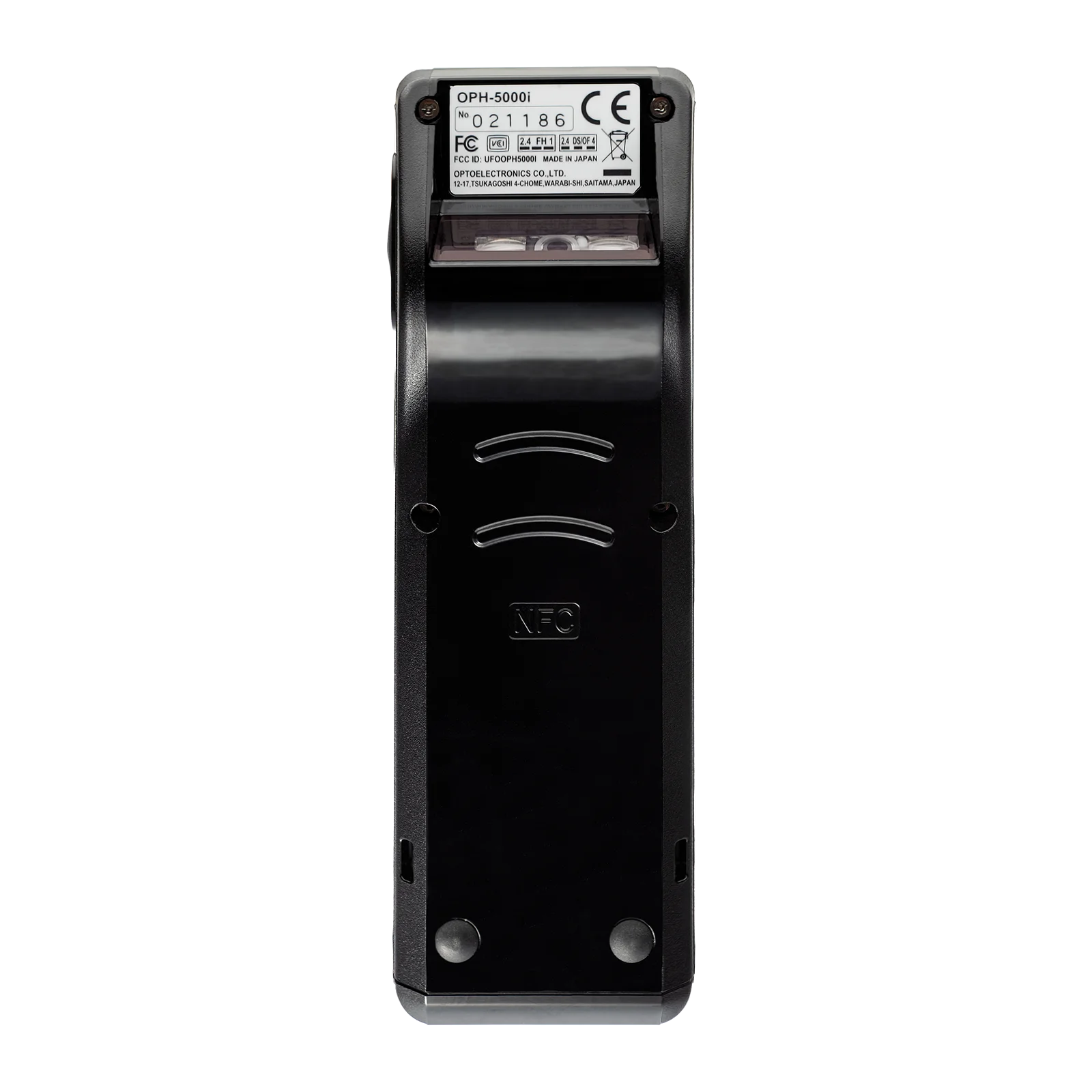

  • Built-in NFC tag for easy pairing
  • Supports Apple MFi, SPP and HID Bluetooth profiles for added flexibility
  • Features IP54 rating

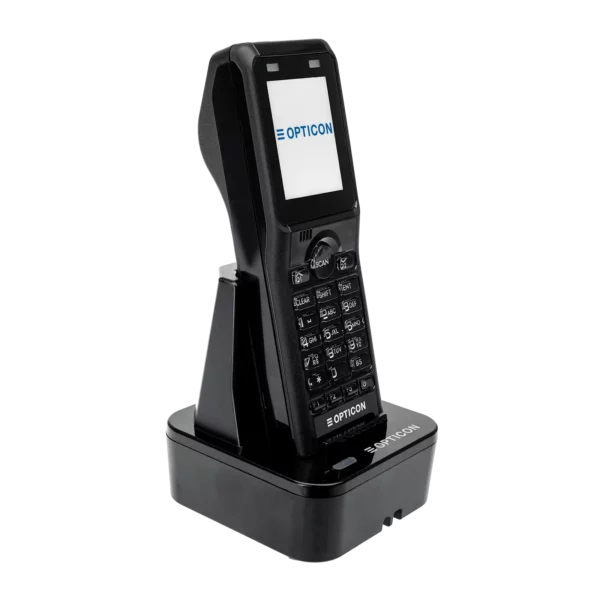

  • Dedicated cradle available for wireless charging

It is the ideal solution for asset management, inventory control and mobile sales automation because the device is rugged, fast, long battery life providing a very versatile device. The OPH-5000i is fully programable suiting many supply chain environments. A powerful device with a bright screen providing user feedback after scanning. Additional complex applications for specialized tasks can be developed using the free SDK facilitated by Opticon.

Additional information

Form factor

Reading type

Operating system

Display

1.77”, 128 x 160 pixels, TFT color LCD with backlight

Keypad

Communication interface

, , ,

Bluetooth

Ver 2.1

NFC

ISO14443 (type A & B), JISX6319-4

USB

MicroUSB, ver. 2.1, HID / COM

W-LAN

Wi-Fi, IEEE 802.11 b/g/n

Light source

Aiming green LED, warm white LED

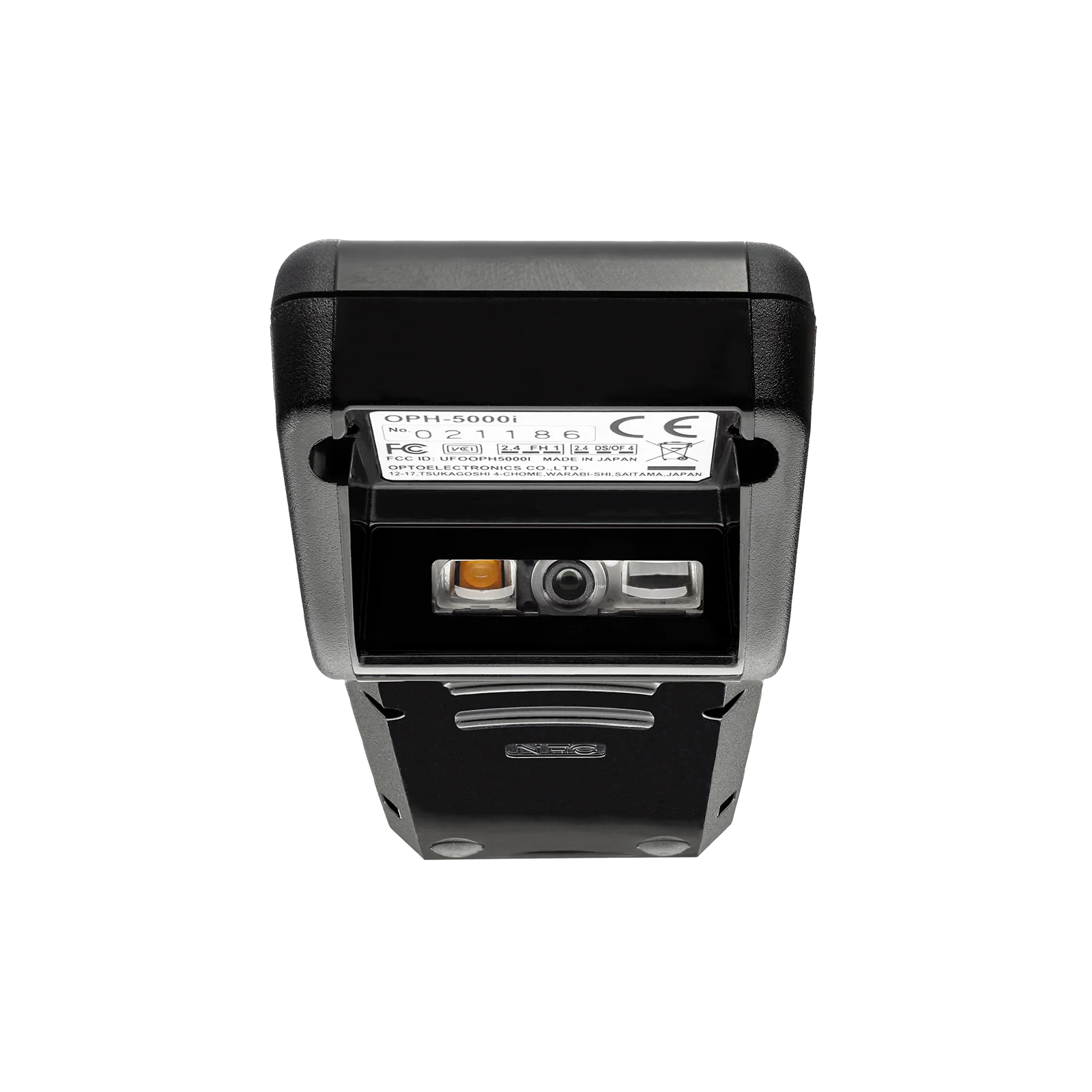

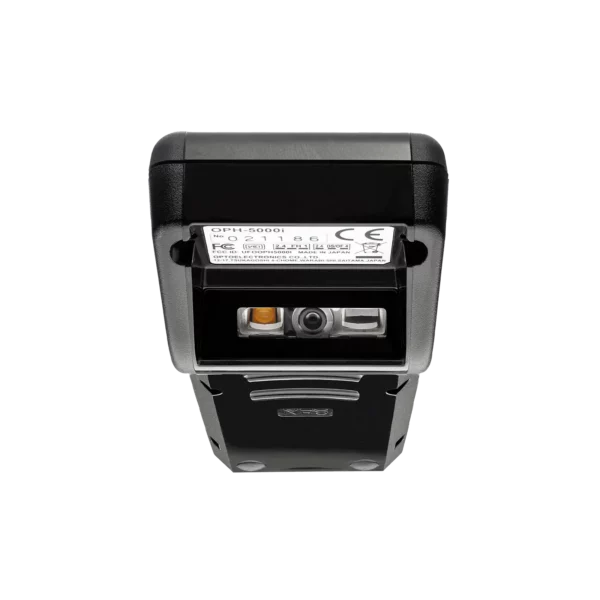

Scan method

CMOS area sensor, 640 x 480 pixels

Scan rate

Up to 100 fps

Drop test

1.5 m / 5 ft drop onto concrete surface

IP rating

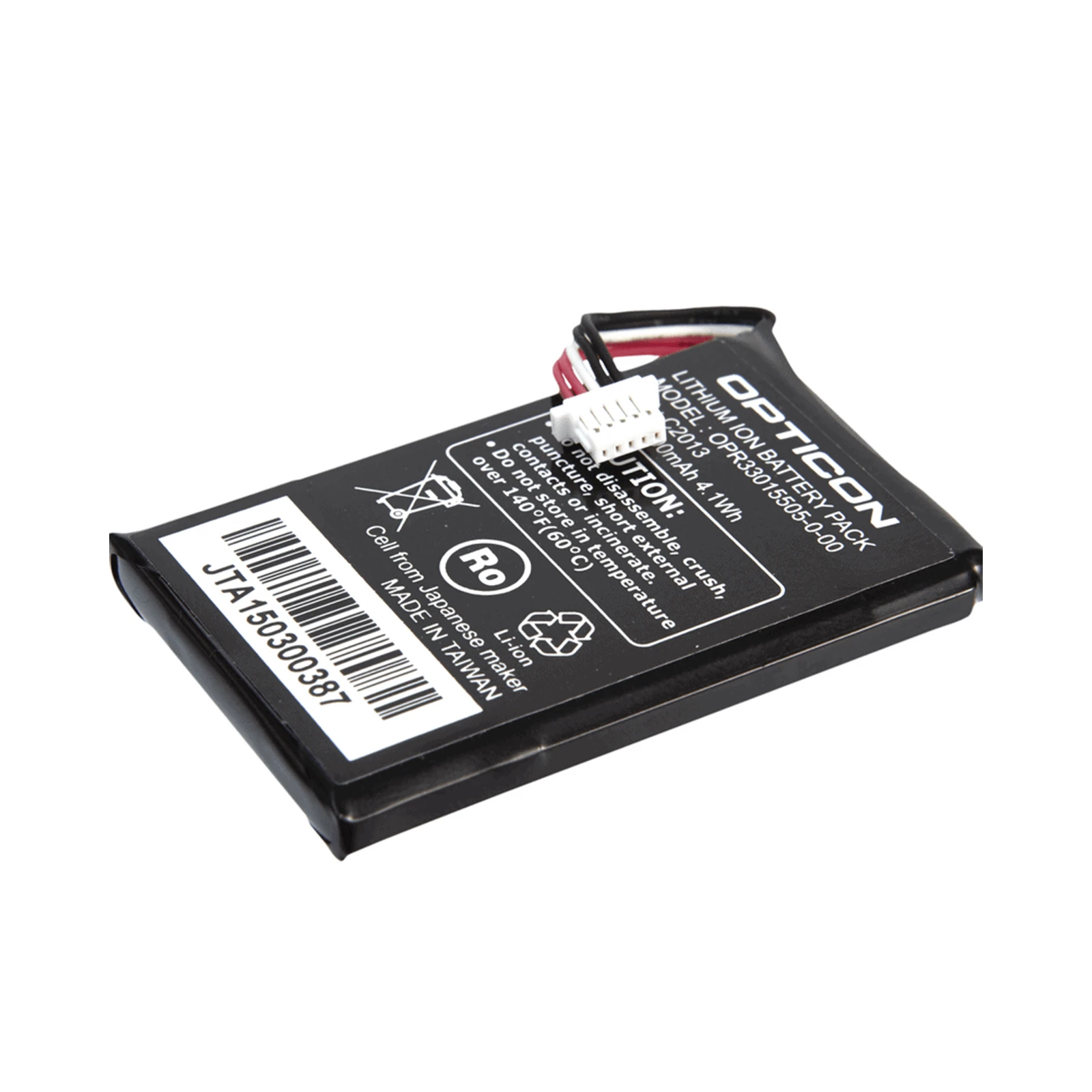

Battery

Lithium-Ion 3.7V 1100 mAh

Dimensions (WxHxD)

44 x 136 x 30.3 mm / 1.7 x 5.35 x 1.19 in

Weight body

Ca. 120 g / 4.2 oz (incl. battery)

Product compliance

CE, FCC, RoHS, VCCI, IEC 62471:2006, IEC 60950, EN60950-1, EMC, EN300 328, EN301 489-1, EN301 489-17, EN62479, EN55024, EN55032 Class A

Enclosed

Neck strap, MicroUSB cable, battery

Sold separately

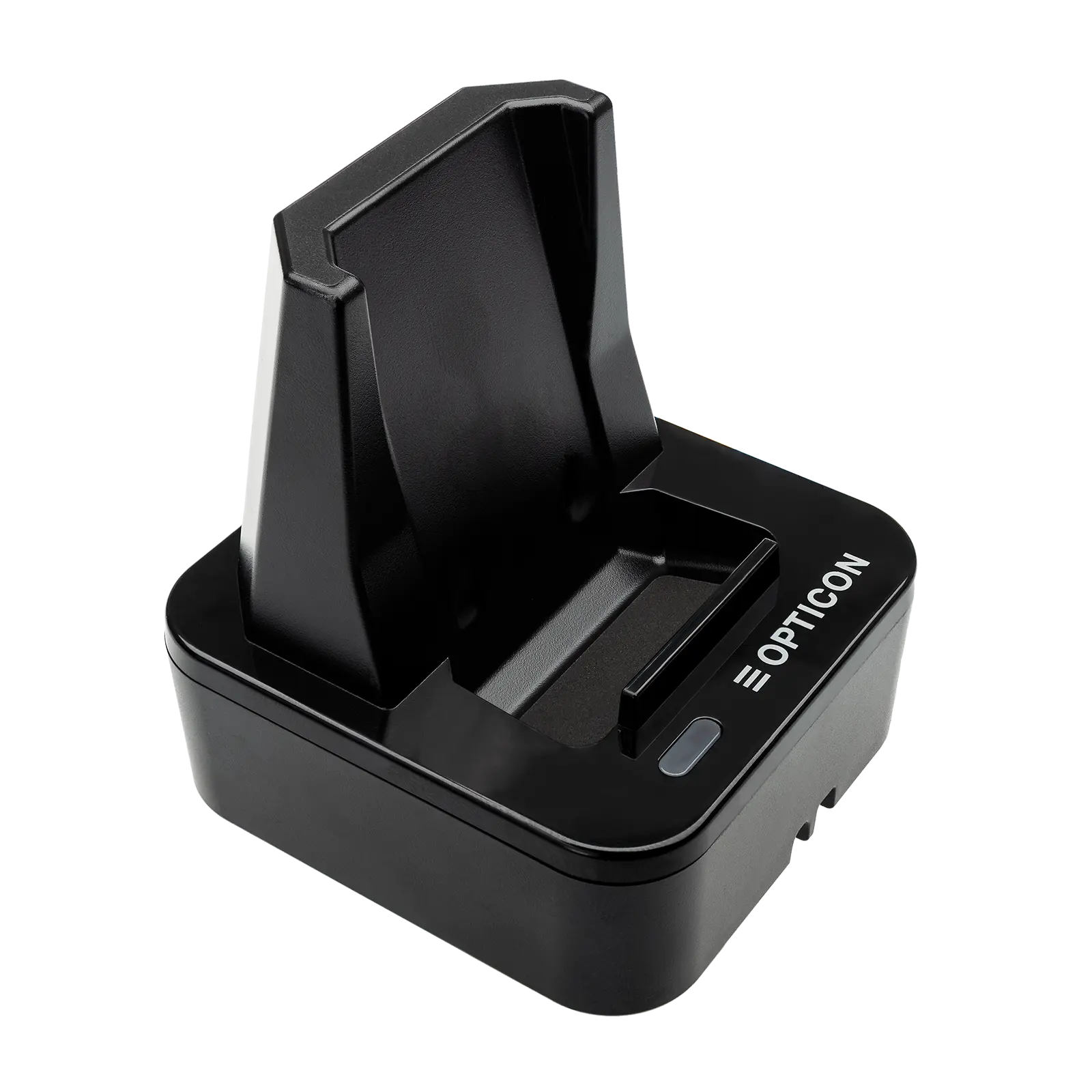

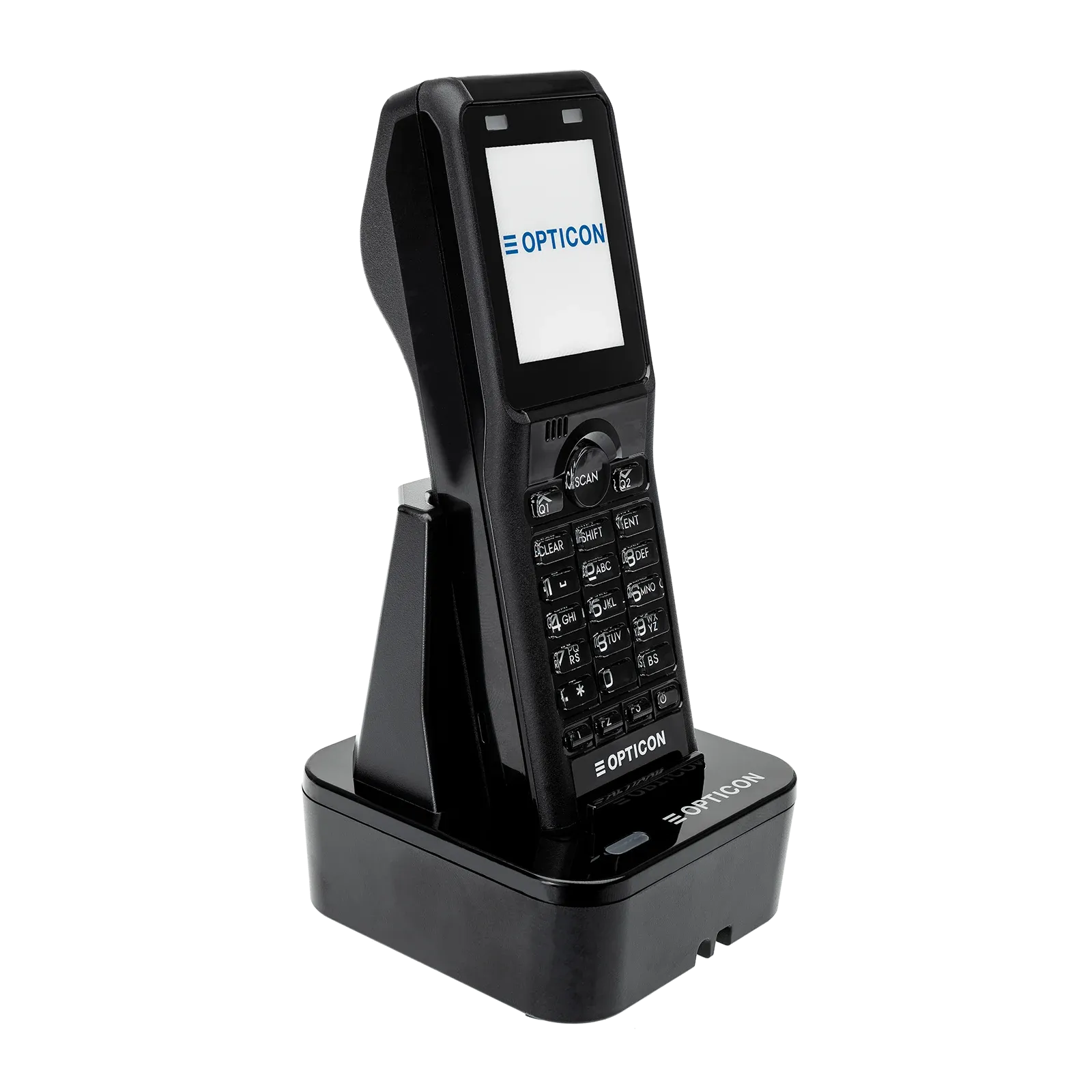

CRD-5000 cradle
