Rugged and comfortable use


This barcode data collector with Bluetooth and integrated GPS module allows registration of the actual time and geographical position together with the barcode data. The numeric keypad makes it easy to add information to the identified data. The OPL-9815 scans fast and accurate and can easily manage a large amount of registrations. The identified barcode data with the actual time and location is stored on the on-board memory.

The handheld mobile computer has everything on board to ensure an optimal ease of use. A fast 32-bit processor, integrated barcode laser scanner, clear (alpha) numeric keypad, easy to read LCD display (with backlight) and a powerful, rechargeable, Li-Ion battery provide fast and highly efficient data entry and -processing in many applications. Combine three types of registration at once; barcode data, time stamp and position tracking.

Comfortable use of the OPL-9815

The shape of the product provides a convenient fit and enables comfortable single-hand scanning. The LCD display allows easy readability of as many as 10 lines of information. The numeric keypad enables the user to navigate through the loaded application and add information to the scanned data.


The OPL-9815 is sealed up to IP54 standards and withstands drops of 1.5 meter.

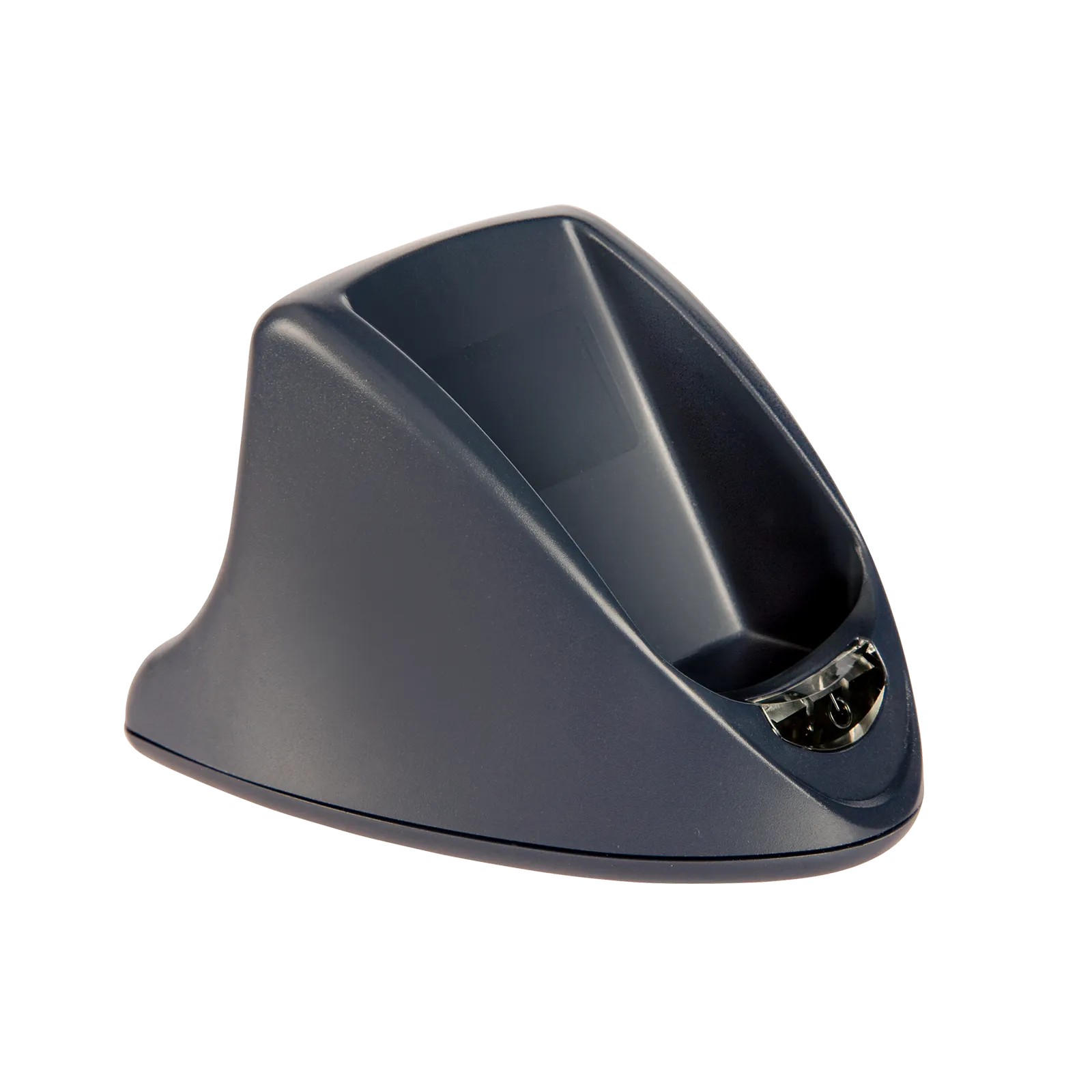

Various cradles are available providing communication and charging options. The IrDA interface within the cradle allows data transfer when the scanner is inserted for charging. The multiple station cradle permits charging of up to 5 terminals simultaneously.

The OPL-9815 is often used in data collection intensive jobs that require feedback on the LCD display and where GPS is required. This includes applications for warehouses, inventory management, asset management, and postal applications.

Additional information

Form factor

Reading type

Operating system


112 x 64 pixels, Graphic monochrome LCD with backlight


Communication interface

, ,


Ver. 2.1, class 2, SPP and HID


NMEA 0183


Ver 1.2 physical layer, baurate 2400 bps – 115.2 kbps

Light source

650 nm visable laser diode

Scan rate

100 scans / seconds

Drop test

1.5m / 5 ft drop onto concrete surface

IP rating

Dimensions (WxHxD)

44 x 140 x 22 mm / 1.73 x 5.51 x 0.87 in

Weight body

Ca. 115 g / 4.1 oz (excl. battery)

Product compliance

CE, FCC, RoHS, IEC60825-1 Class 2, FDA CDRH Class II


Wrist strap, standard battery

Sold separately

Rechargeable battery, Cradle (serial communication, charging)
