OPN-6000

New generation companion scanner

Categories: , ,

Description

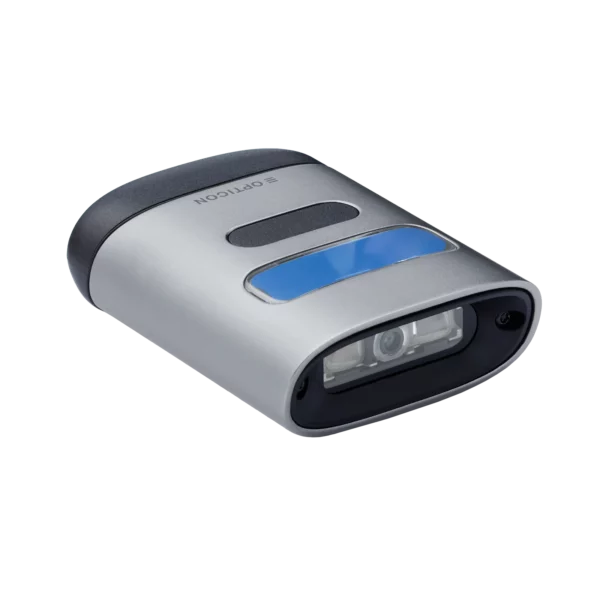

The all new OPN-6000, Opticon’s latest companion scanner. The OPN-6000 is a very compact battery powered data collector with a built-in Opticon 2D barcode scanner. Due to its compact size and its Bluetooth 5.4 (BLE) and USB capabilities, the OPN-6000 is the ideal companion scanner for mobile devices like the iPhone/iPad and Android phones and tablets. Configure and collect barcode data on Mobile devices using the OptiConnect-app or use its batch functionality to configure and retrieve data by using USB on PC’s and laptops. It is so small that it easily fits into your pocket. Due to its extremely low power usage the battery life is unprecedented and its wired and wireless charging support makes it easy to recharge.

The key features of the OPN-6000 are the following:

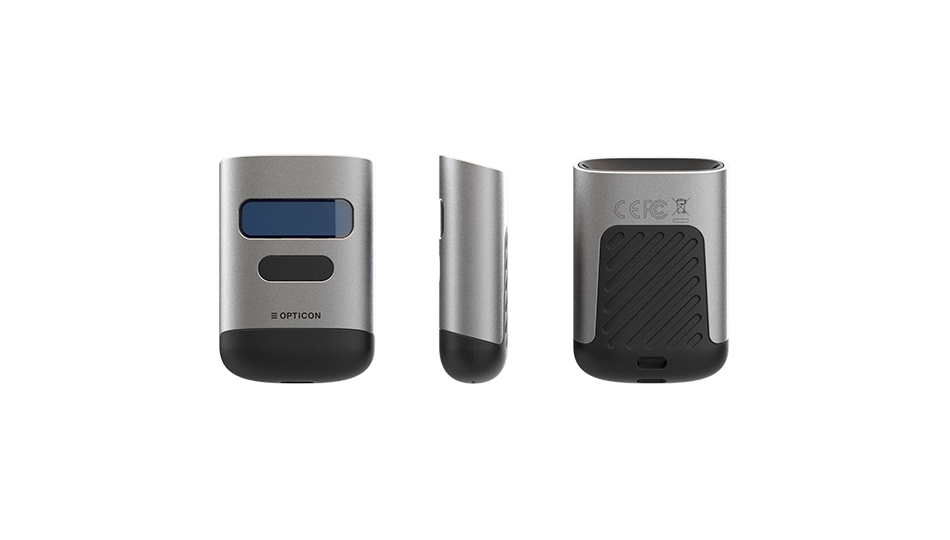

  • High-end design, the in the industry: The standard OPN-6000 is crafted out of an aluminum housing that measures just 64.4 x 19.5 x 44 mm (LxWxH).
  • Configurable and programmable: The OPN-6000 is built onto the proven technology used in previous data collectors such as the OPN-2006 and the RS-3000. All applications such as the OPN-2001 simulation app, batch application and Bluetooth application are supported.

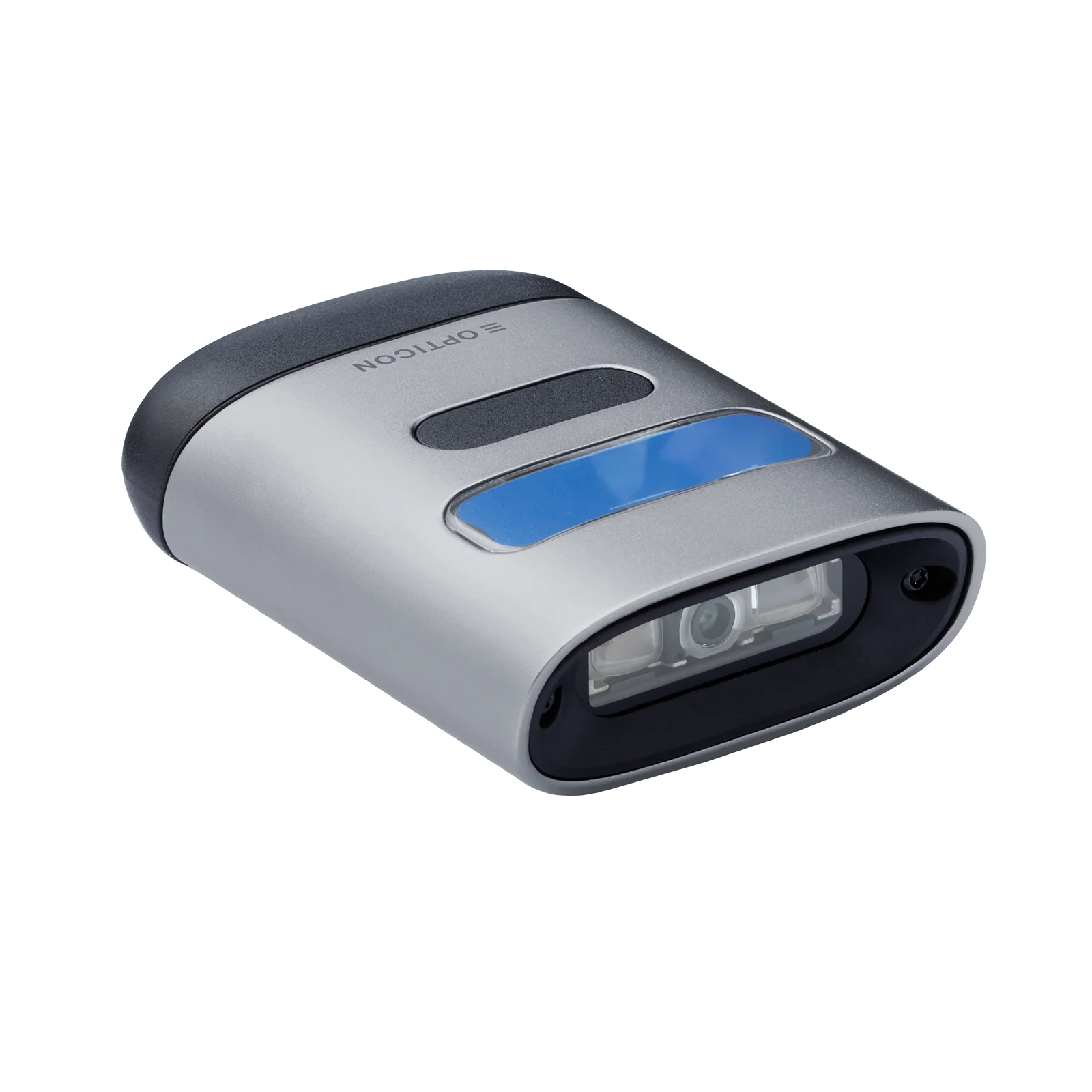

  • High-speed scanning: The extreme high-performance scan engine in the OPN-6000 ensures stress-free scanning and fast response, even in the case of poor-quality barcodes. It features a high-speed CMOS image sensor that captures images at a speed of up to 100 fps, which when combined with the fastest global shutter speed in the industry, enables fast and accurate scanning.
  • Accurate battery monitoring: With the build-in battery gas-gauge, the OPN-6000 can accurately monitor the remaining charge level and therefore it can prevent surprise resets.

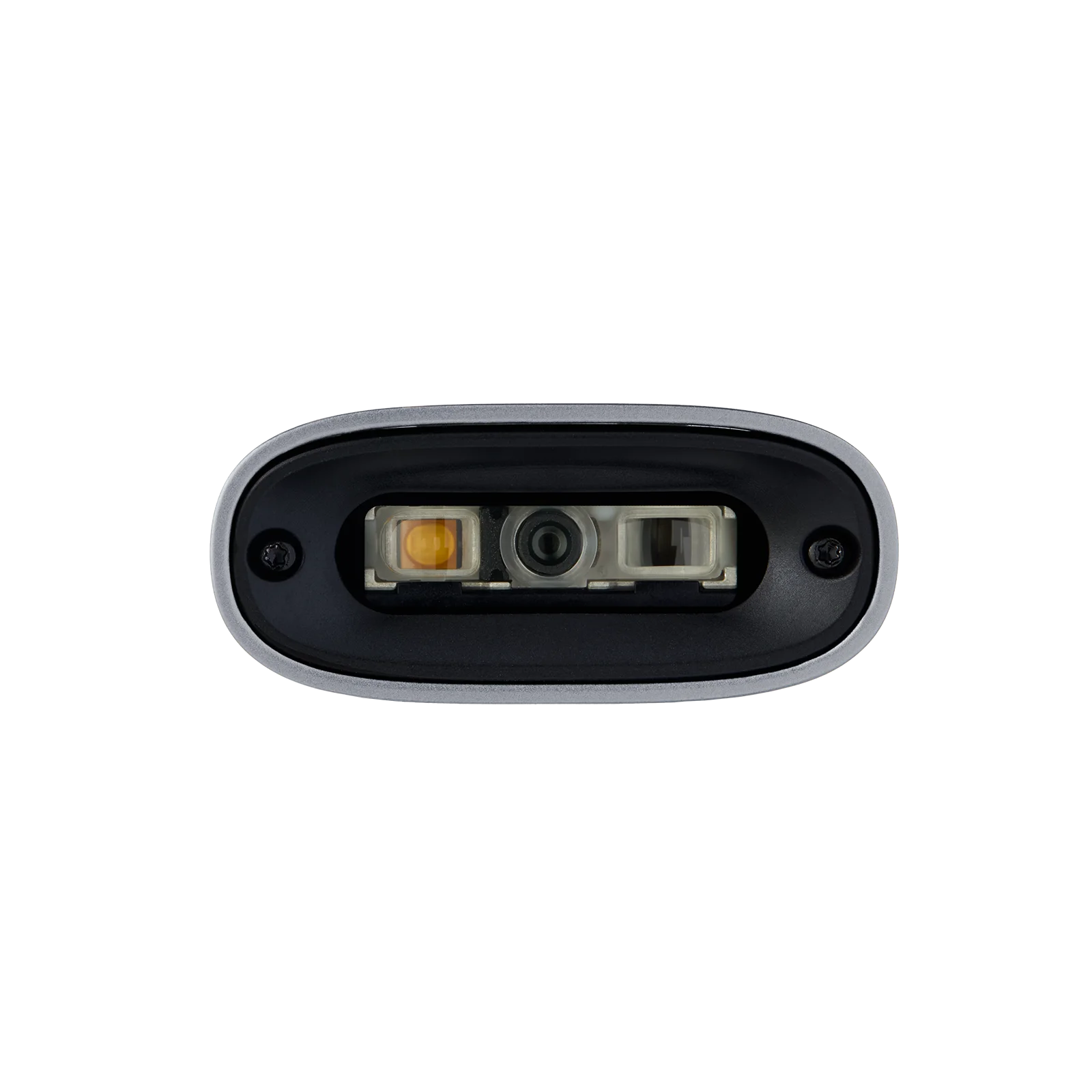

  • Green LED aiming and Warm-White LED Illumination: A well-defined, single line of green LED light and efficient warm-white LED illumination makes it easy to aim the scanner while providing safety and long life.
  • Designed from the start as a durable and user-friendly device: The OPN-6000 is a durable scanner that is designed with a focus on the user. This makes the OPN-6000 one of the most user-friendly scanners in het industry.

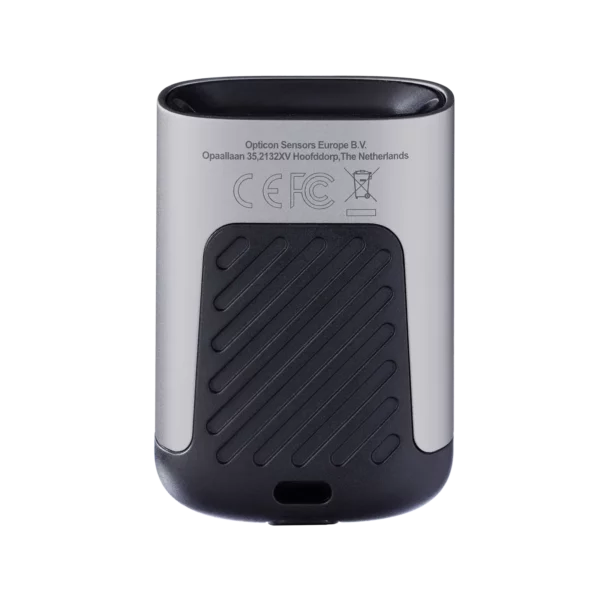

  • Wireless charging: The OPN-6000 can be charged wirelessly with any Qi compatible charging pad. Of course, it is also possible to charge it via the USB-C port.
  • Bluetooth Low Energy: The OPN-6000 features a modern Bluetooth 5.4 compliant chip that supports Bluetooth low energy (BLE) with following services: HID (Human Interface Device), DFU (Device firmware update), UART (Serial port emulation), BAS (Battery service), OptiConnect service
  • OptiConnect: OptiConnect is a mobile application that helps you to configure and manage your device(s) and process your barcode data. For more information check https://opticon.com/opticonnect/

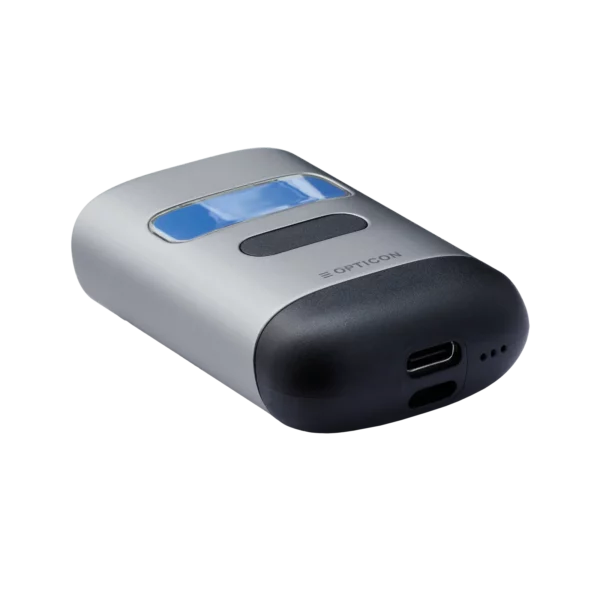

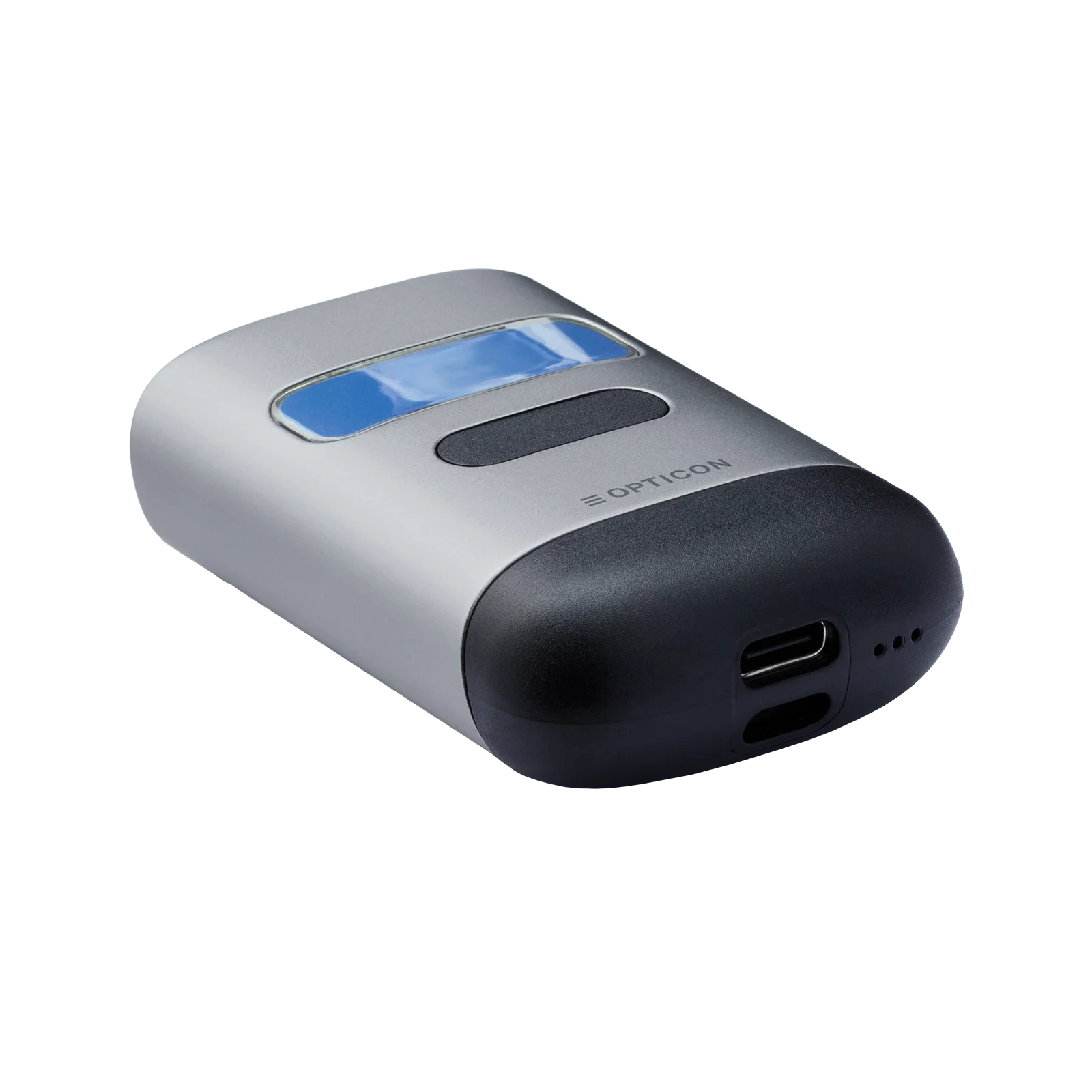

  • USB-C: The OPN-6000 comes with a USB-C charging/communications port. It supports USB-HID (keyboard), USB-COM (serial port profiles: USB-CDC and USB-VCP) and USB-MSD (hard disk)

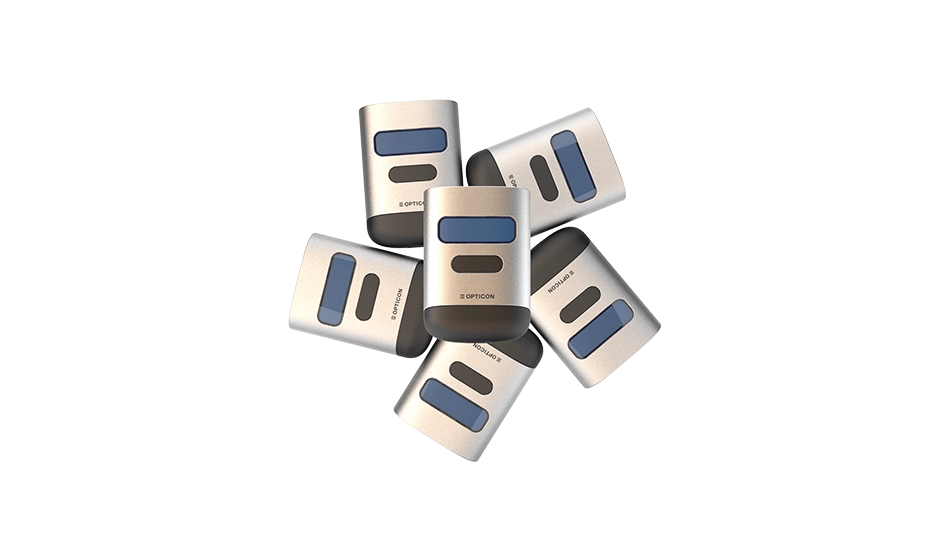

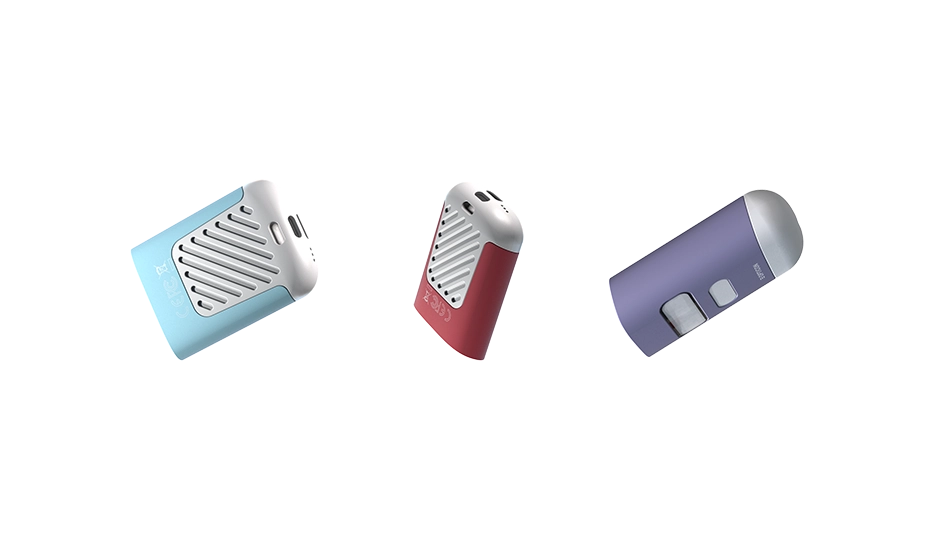

  • Customizability: The OPN-6000 offers a high degree of customizability in various ways. This is made possible, for instance, by integrating your bespoke software or features. With a minimum order quantity, you can tailor the appearance of the OPN-6000 to align with your brand identity. This includes options such as incorporating your logo onto the housing or selecting customized housing colours.



Compact and Powerful:

  • The OPN-6000 is Opticon’s latest companion scanner, featuring a compact design and a built-in 2D barcode scanner.
  • Battery-powered and ideal for mobile devices like iPhone/iPad and Android phones/tablets.
  • Bluetooth 5.4 (BLE) and USB capabilities for seamless integration.

Versatile Data Collection:

  • Configure and collect barcode data on mobile devices using the OptiConnect app.
  • Batch functionality allows easy configuration and data retrieval via USB on PCs and laptops.

High-End Design:

  • Crafted from aluminium housing measuring just 3.2 x 4.8 x 2.0 cm.
  • High-speed scanning with an advanced CMOS image sensor for fast and accurate scanning.

User-Friendly and Durable:

  • Accurate battery monitoring with a built-in battery gas-gauge to prevent unexpected resets.
  • Green LED aiming and warm-white LED illumination for easy and efficient scanning.
  • Designed for durability and user-friendliness, making it one of the most user-friendly scanners in the industry.

Advanced Technology:

  • Wireless charging capability with any Qi-compatible charging pad.
  • Bluetooth Low Energy with various services: HID, DFU, UART, BAS, OptiConnect service.
  • USB-C charging/communications port supporting USB-HID, USB-COM, and USB-MSD.

OPN-6000 Customizability:

  • High degree of customizability, including integration of bespoke software or features.
  • Customize the appearance to align with brand identity, incorporating logos or choosing customized housing colors.

OptiConnect App:

  • OptiConnect is a mobile application for configuring and managing devices and processing barcode data.
  • For more information, visit opticon.com/opticonnect.

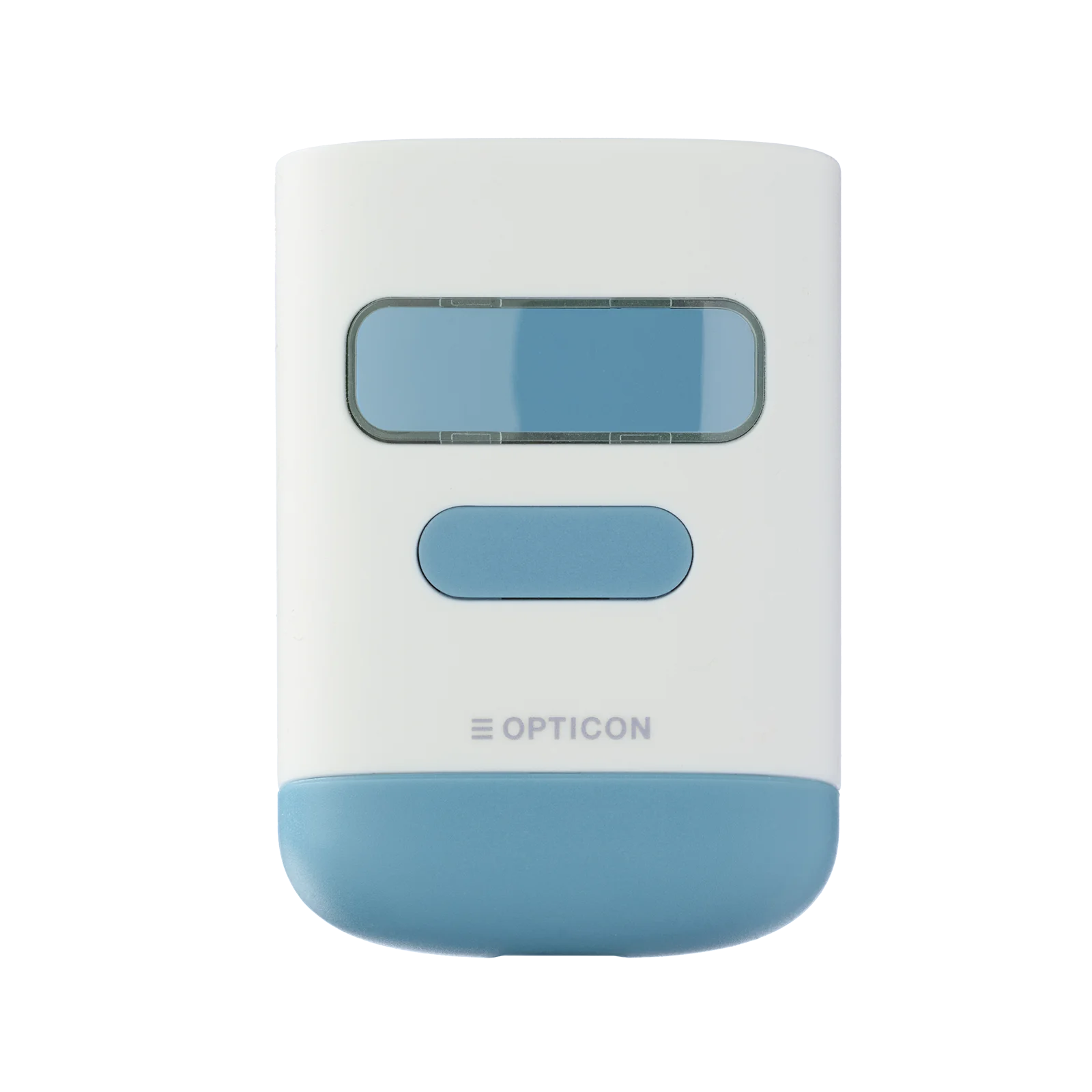

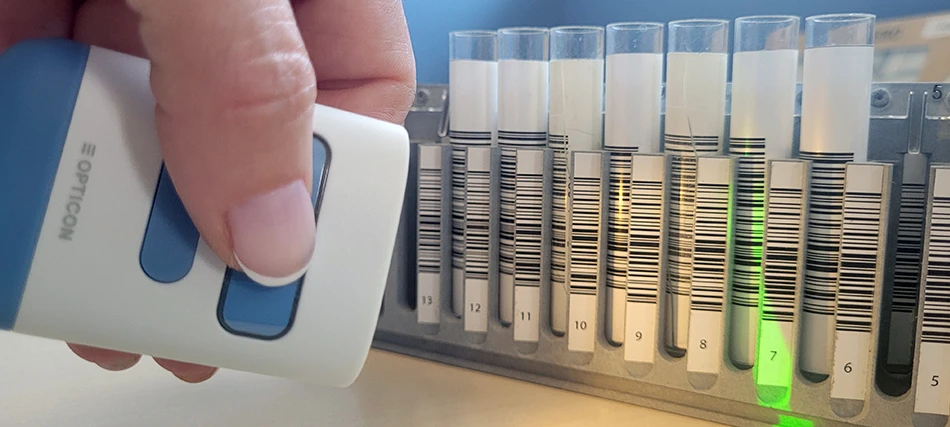

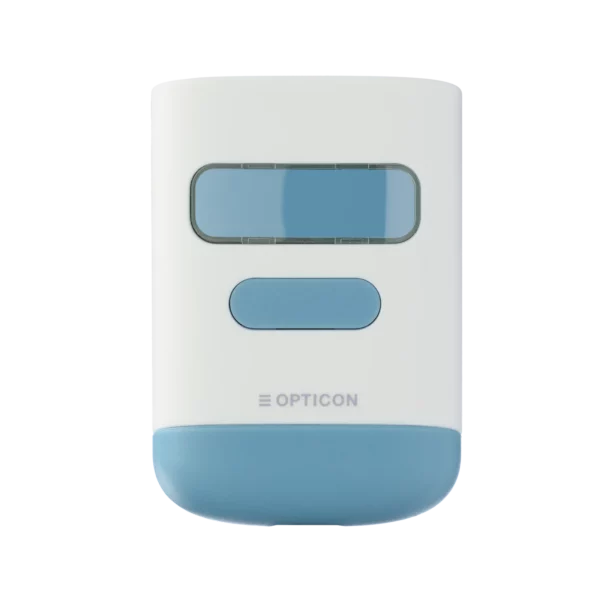

OPN-6000 is a very versatile product and its uses vary from small stores to bigger companies for their inventory management, asset tracking, visitor registration, and much more. The companion scanner can be used to register visitors at a festival entrance and provides feedback if the barcode is legit or it may be used by at a point-of-sale to keep track of their inventory. This scanner is straightforward and therefore it is suitable for a wide audience. There is also a Healthcare version available which is anti-microbial.

Additional information

Form factor

Connection

Reading type

Communication interface

,

Bluetooth

Ver. 5.4 Bluetooth Low Energy, HID (Human Interface Device), DFU (Device firmware update), UART (Serial port emulation), BAS (Battery service), OptiConnect service
USB

USB-C, USB VCP/CDC (Virtual COM port), HID (Human Interface Device), MSD (Mass Storage Device), OPN2001 mode (Companion application)
Non-visual

Buzzer
Light source

Aiming green LED, warm white illumination LED
Scan method

CMOS area sensor, 640 x 480 pixels, black and white
Scan rate

Up to 100 fps
Drop test

1.5 m / 5 ft drop onto concrete surface
IP rating

Dimensions (WxHxD)

64.4 x 44 x 19.4 mm / 2.54 x 1.73 x 0.76 in
Weight body

Ca. 52 g / 1.8 oz
Product compliance

CE, FCC, RoHS, IEC/EN 62471, EN IEC 62368, EN 55032, EN 55035
Enclosed

USB-C cable, Neckstrap
Contact

Related Products

Consent needed before watching Youtube

On this location is content wrapped that originates from YouTube. The showing of this can lead to YouTube collecting personal data like IP and/or places cookies on your device. You need to explicitly consent this before watching the video.

Open Cookie preferences Watch on YouTube

OPN-6000 – Unlock the potential of efficient scanning and data collection

Increase your workers productivity and mobility by using the accurate 2D companion scanner OPN-6000. The OPN-6000 is a very compact battery powered data collector with a built-in Opticon 2D barcode scanner. Due to its compact size and its Bluetooth 5.4 (BLE) and USB capabilities, the OPN-6000 is the ideal companion scanner for mobile devices like the iPhone/iPad and Android phones and tablets. Configure and collect barcode data on Mobile devices using the OptiConnect-app or use its batch functionality to configure and retrieve data by using USB on PC’s and laptops. It is so small that it easily fits into your pocket. Due to its extremely low power usage the battery life is unprecedented and its wired and wireless charging support makes it easy to recharge.

OptiConnect

Use the free OptiConnect app on your mobile to manage your Opticon Bluetooth barcode scanner effortlessly. With its user-friendly design and integration with Opticon’s scanners, elevate your efficiency and productivity. Some key features:



  • Simplified scanner setup and configuration:
    Adjust settings, modify scan modes, and fine-tune scanner behavior with intuitive controls.
  • Effortless Bluetooth connection:
    Establish a seamless Bluetooth connection. OptiConnect ensures a stable link with your smartphone.
  • Seamless barcode scanning and data management:
    OptiConnect offers a user-friendly interface for data management, boosting your productivity.
  • CSV file import:
    Integrate existing CSV data directly into the app, streamlining your scanning operations.
  • Data storage and export:
    Safely store and easily export your scanned data. Your valuable information is always accessible.

Download it now in the Google Playstore or App Store.

Durable, sustainable, user-friendly

Developed for durability, user-friendliness
and crafted out of an aluminium housing the
OPN-6000 is the strongest companion scanner we
ever developed at Opticon.

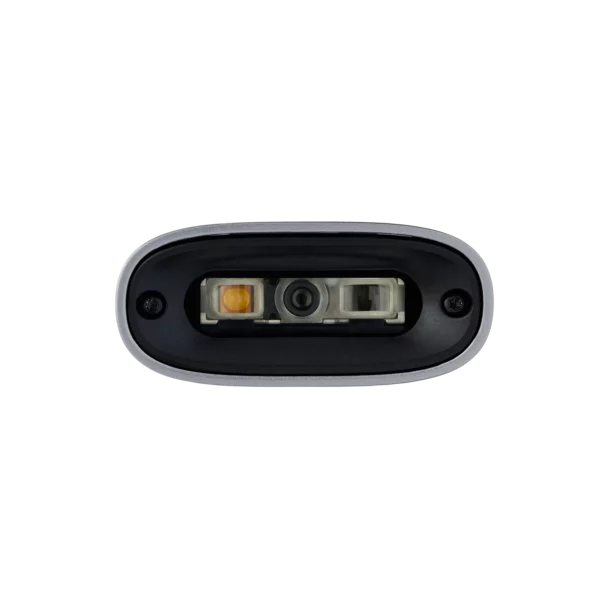

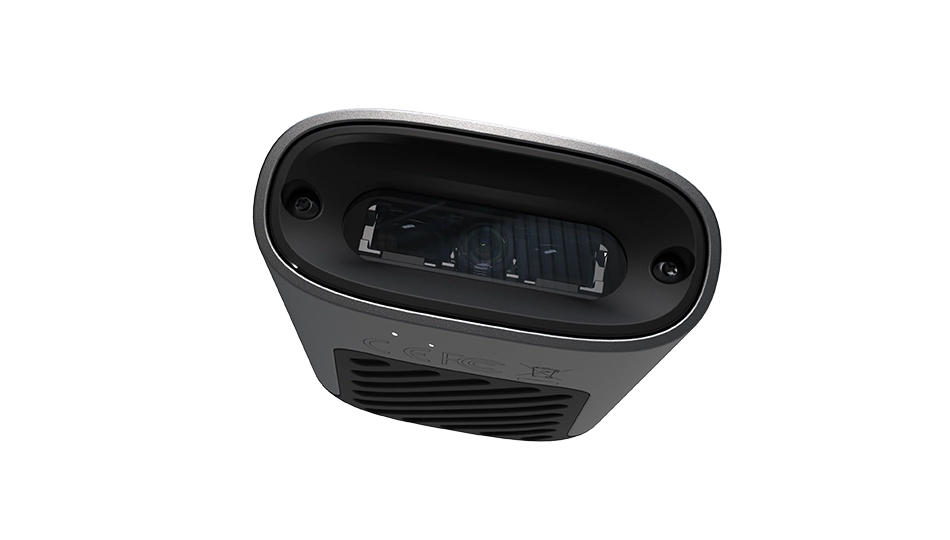

Powered by

Opticons long proven MDI-4150 series 2D scan
engine. This reliable engine scans extremely fast
with 100 frames per second, is very accurate and
scans all kinds of barcodes, even damaged ones.

With a Focus on Design

High end, sleek, and ruggedized design with the
option of an aluminum crafted or a plastic housing
measuring less than 20 mm in thickness.

Designed for all kinds of markets such as hospitality, retail, logistics and healthcare

Customizable in terms of visual appearance, integration of bespoke software and features to excel your business
