Quick and efficient

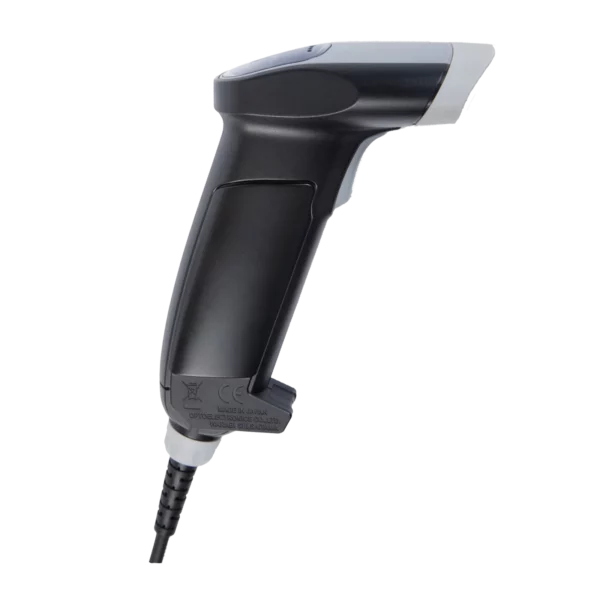

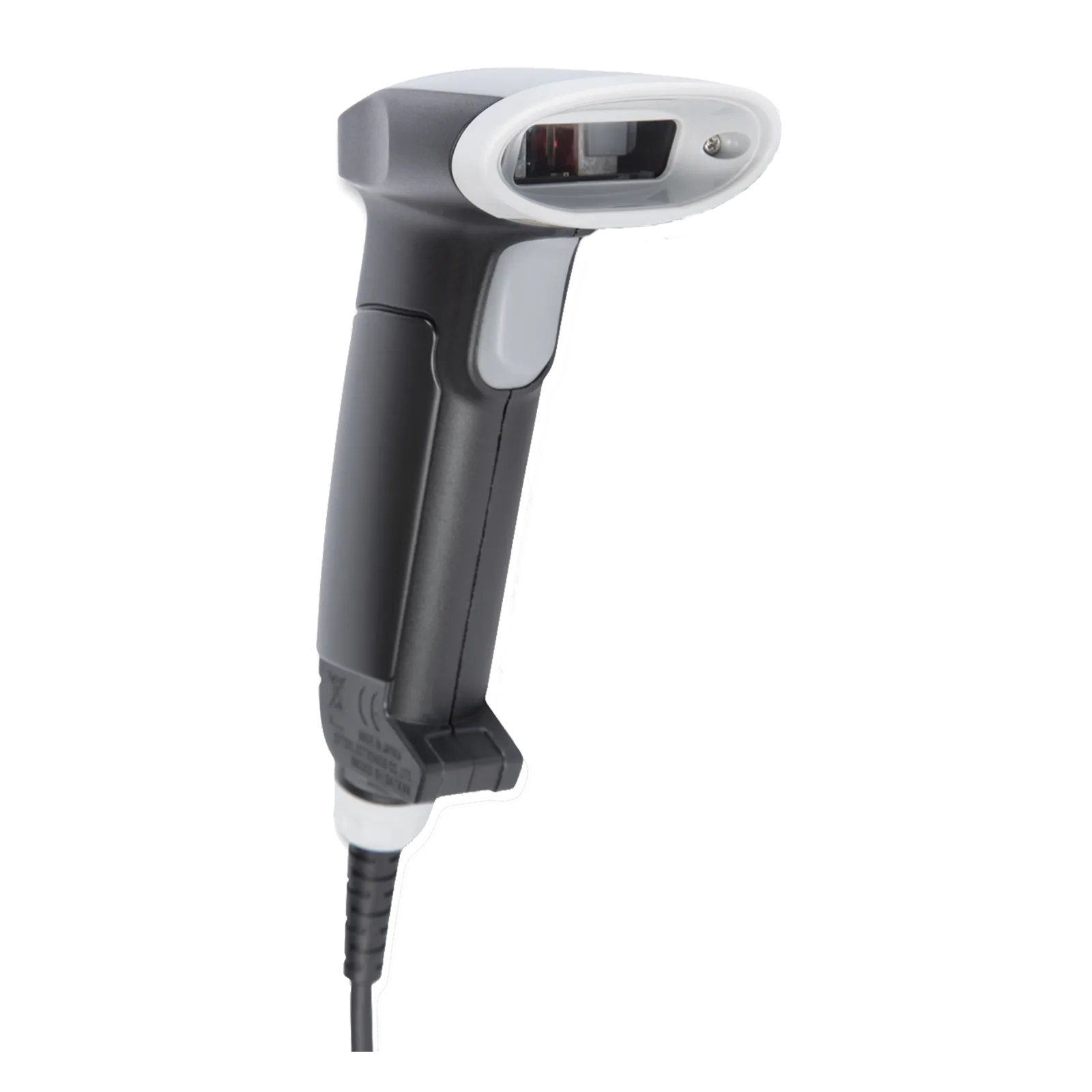

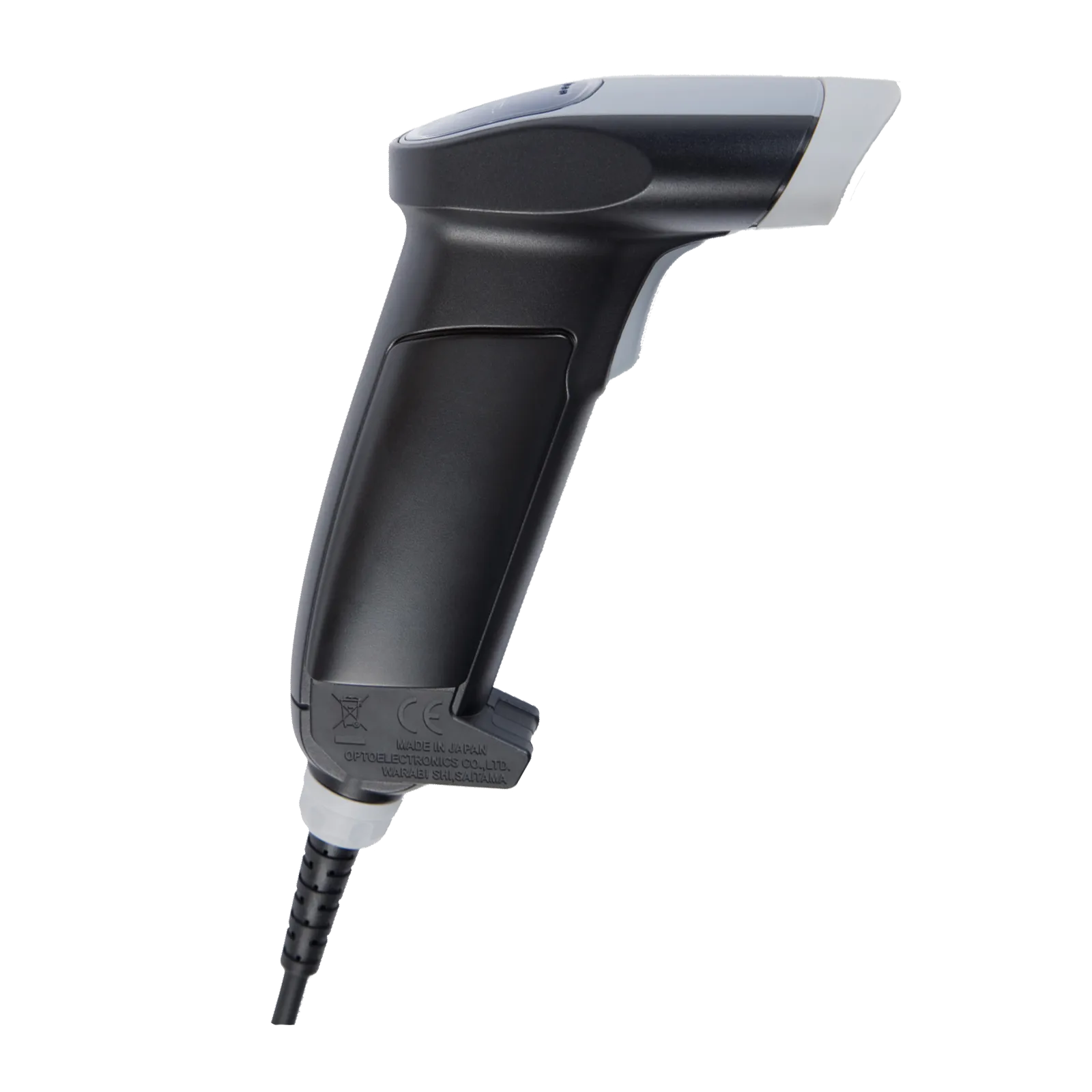

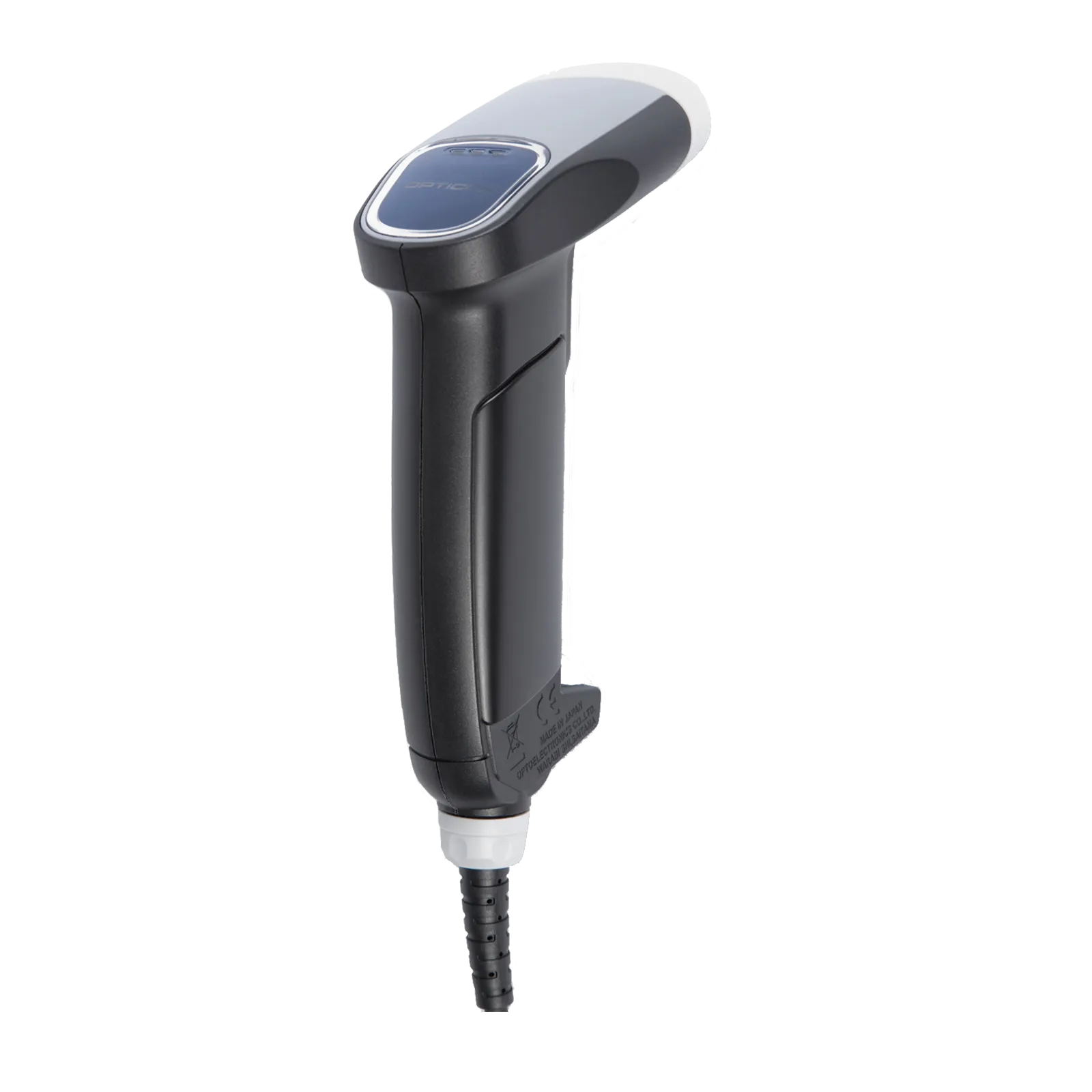

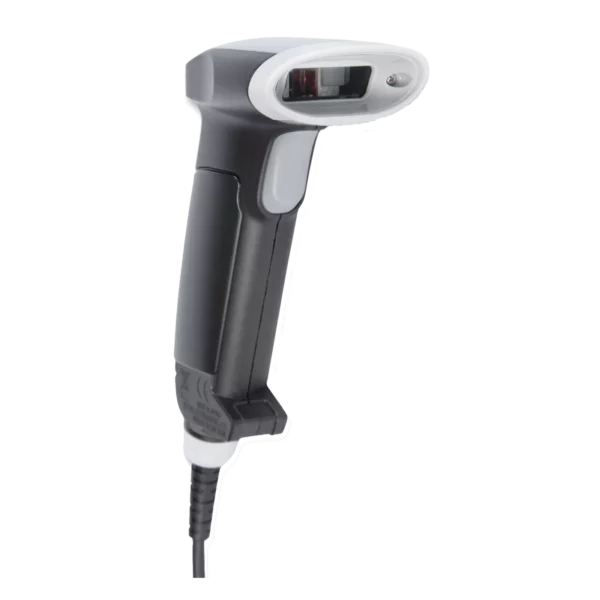

The OPR-3201Z is a true performer with a high plug- and play factor. The handheld laser scanner has an auto-trigger function, making hands free operating a possibility. The large pistol grip makes aiming at barcodes easy and comfortable, enabling the user to focus fully on the task at hand.

The OPR-3201Z is an auto-trigger, handheld scanner with plug and play functionality that speeds up the workforce. It comes with an USB cable. The scanner can be ordered in black or optional white. The complementing stand initiates the auto-trigger making hands free scanning a viable option. The larger grip of the device provides easy targeting and the ingenious placement of the scanning components in the device assures the right balance when holding. It can be plugged into any device with a USB port and it is ready to start scanning. The OPR-3201Z is also lightweight with only 80 grams and can withstand drops up to 1.5 meters onto concrete.

The OPR-3201Z does not require any technical know-how to set it up and the set-up only takes a few minutes, which makes this device a quick scanner that makes life easier.

A few highlights why the OPR-3201Z should be in your hands:

  • Auto-trigger option
  • Comfortable grip
  • Lightweight
  • Plug and play

The OPR-3201Z is often used in service-related tasks such as product scanning in shops, administrative tasks, or ticket control at the entrance of an event. These examples are of course just the tip of the iceberg because this scanner is one of Opticons most popular products since its birth over a decade ago.

Additional information

Form factor


Reading type

Communication interface


ver. 1.1, HID/VCP, USB-A connector

Light source

650 nm visible laser diode

Scan method

Bi-directional scanning

Scan rate

Up to 100 scans / second

Drop test

1.5 m / 5 ft drop onto concrete surface

IP rating

Dimension (WxHxD)

56 x 149 x 109 mm / 2.20 x 5.87 x 4.29 in

Dimension stand (WxHxD)

146 x 106 x 295 mm / 5.75 x 4.17 x 11.61 in (excl. scanner)

Weight body

Ca. 90 g / 3.2 oz (excl. cable)

Weight stand

Ca. 390 g / 3.76 oz

Product compliance

CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC60825-1 Class 2, FDA CDRH Class II, EN55022, EN55024
