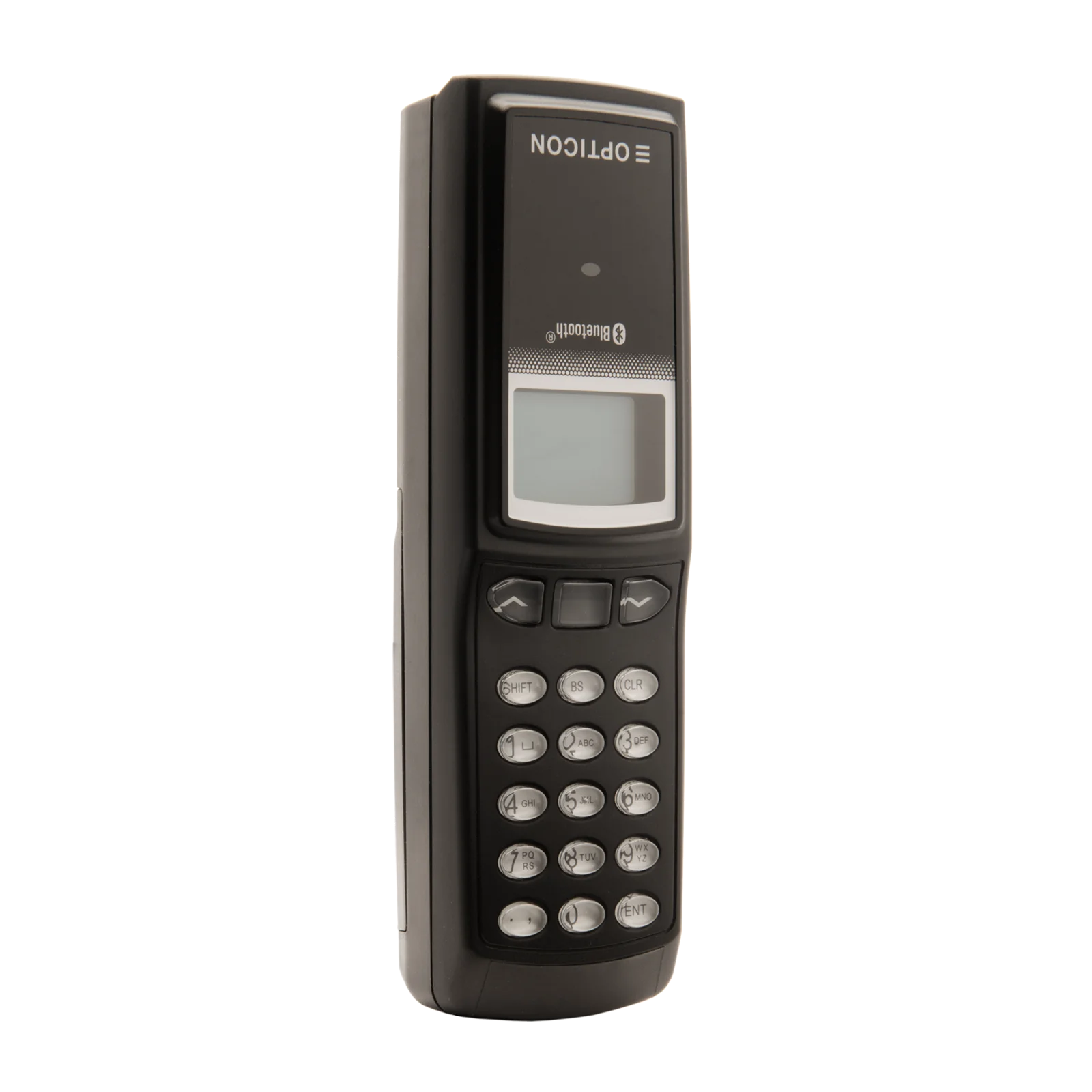

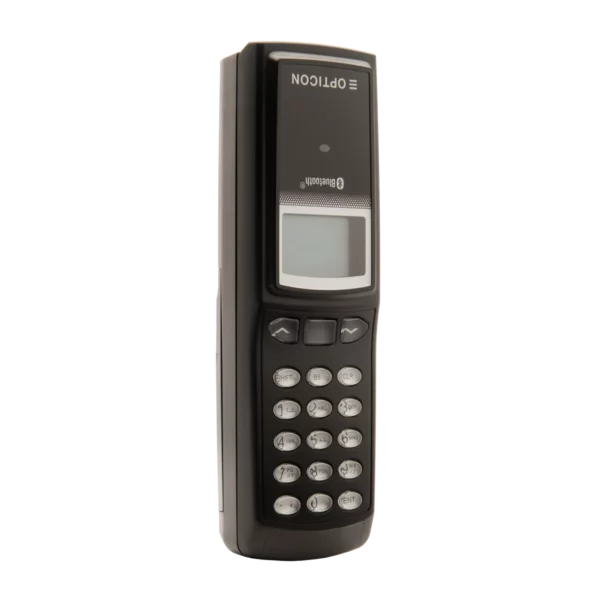

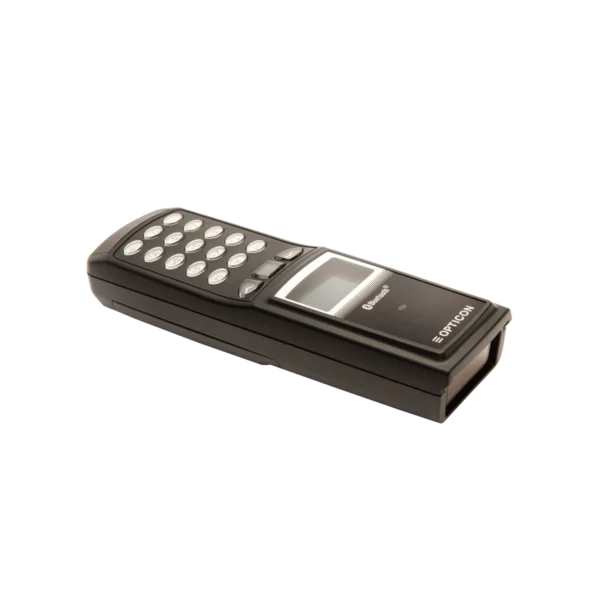

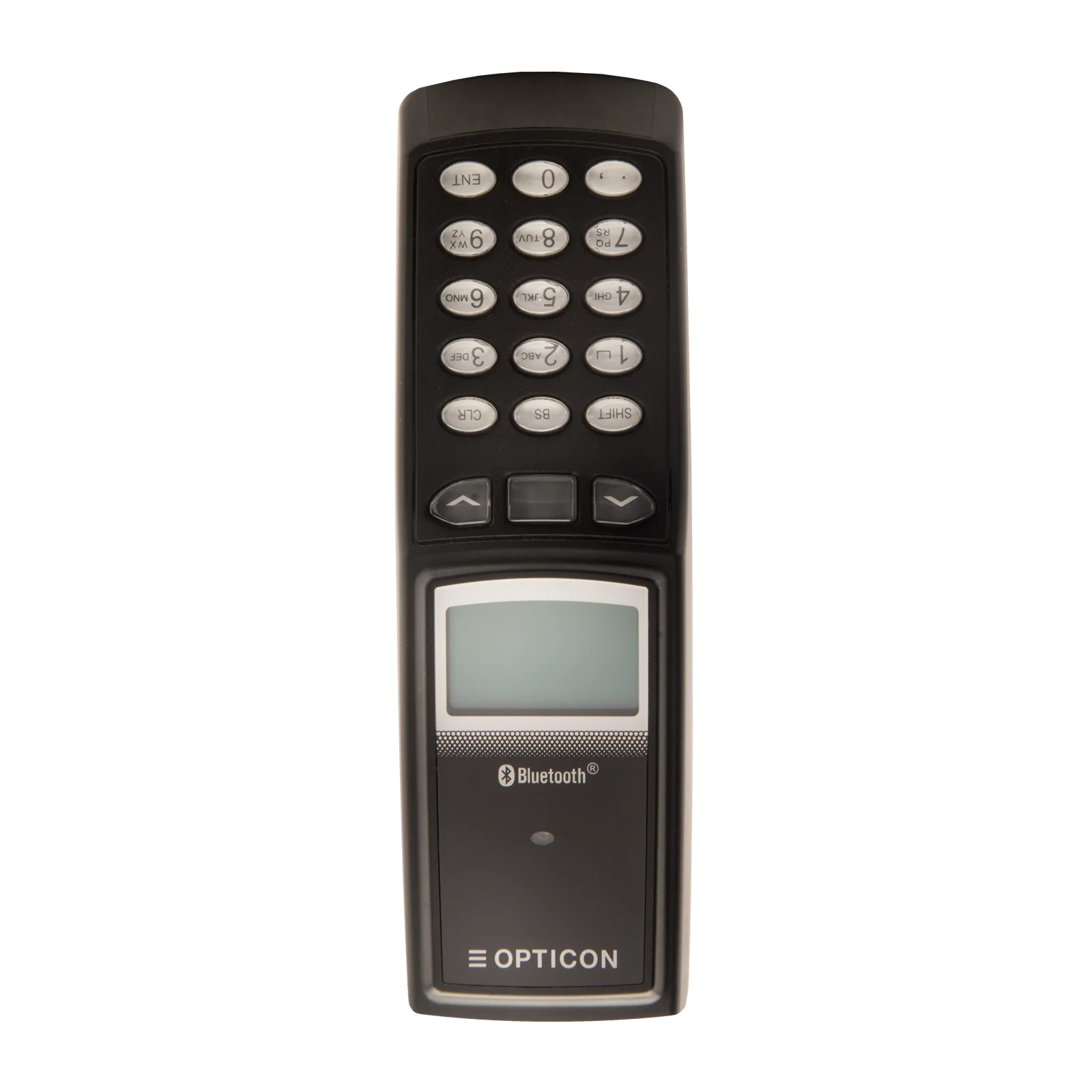

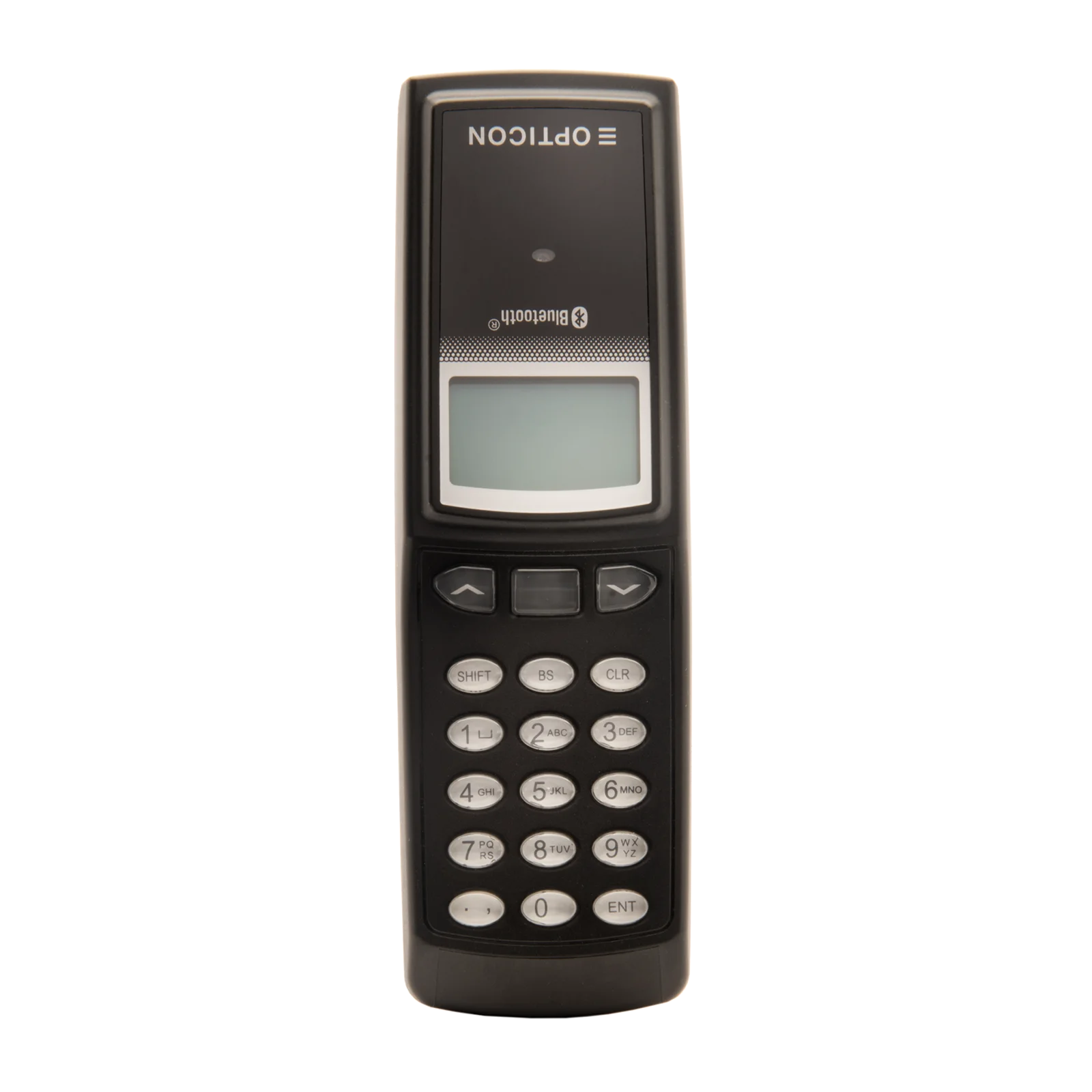

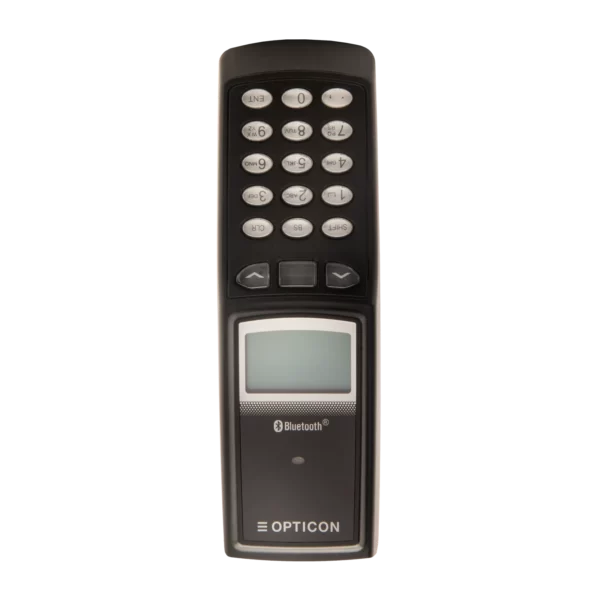

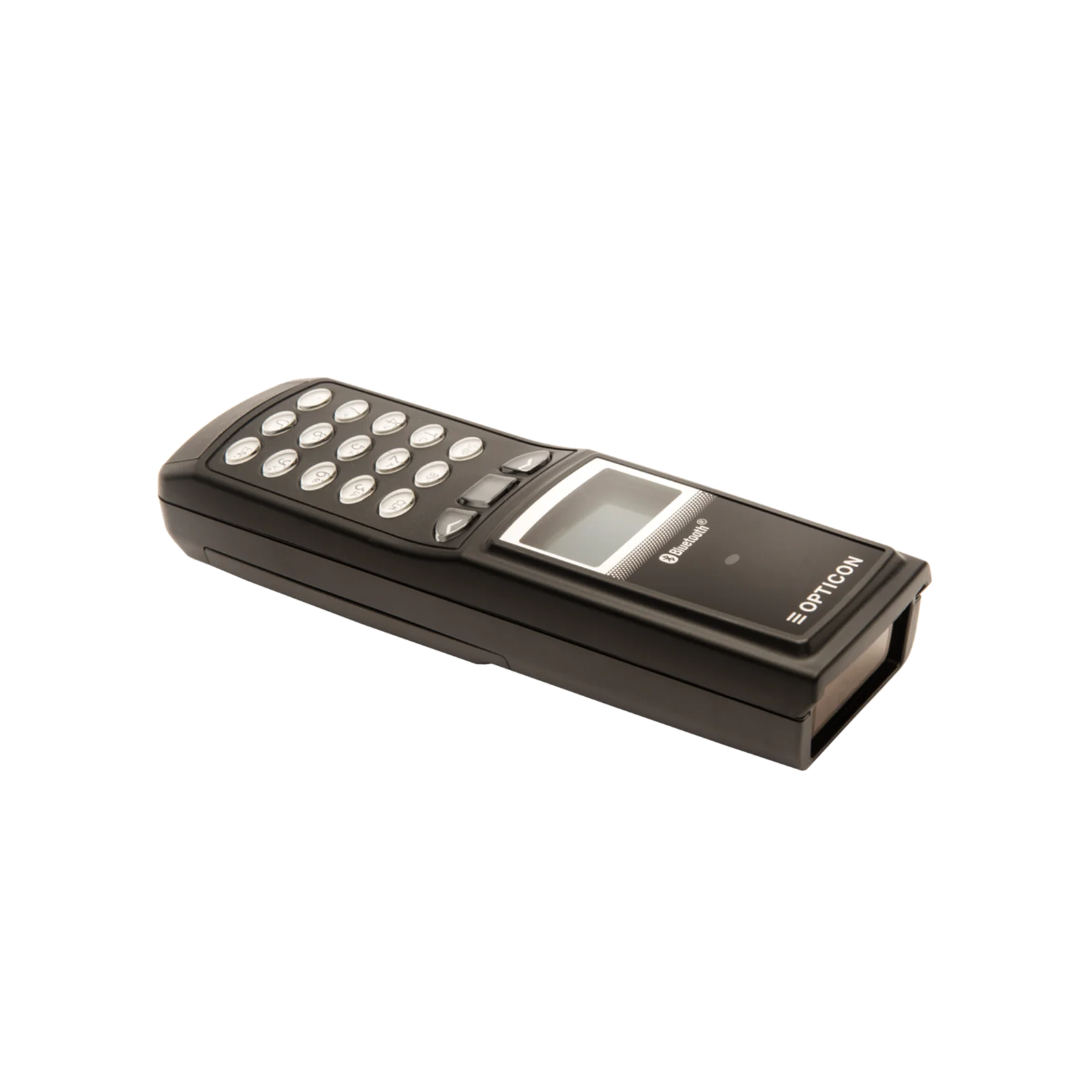

PX-36

Proprietary mobile computer

Description

This straight forward barcode scanner makes sure that data is transferred in real-time and that the user enjoys a good experience while scanning. The PX-36 is a 2D CMOS imager with the capability of scanning at 60 FPS. Additionally, this is a rugged scanner equipped with an LCD display and a powerful battery. You will want to have this scanner!

How we describe the PX-36

The PX-36 is a barcode scanner with a powerful 2D CMOS Imager, high capacity battery, and rugged seal with IP42. The LCD display is bright and provides good readability while scanning and can show the scanned barcode data on the spot. It is a single-handed barcode scanner with a numeric keypad and a fast 32-bit processor. The PX-36 can be used as a batch barcode scanner by storing the data on the local memory or the Bluetooth connection can be utilized to create real-time data transfer so that the data is always as up-to-date as possible.

In addition, various cradles are available providing communication and charging options. The IrDA interface within the cradle allows data transfer when the scanner is inserted for charging. The multiple station cradle permits charging of up to 5 terminals simultaneously.

Features

A few highlights why the PX-36 is the next scanner you should buy:

  • Real-time data transfer
  • Feedback by bright LCD display
  • Powerful 2D Imager
  • Up to 60 FPS

The PX-36 is often used in data collection intensive jobs that require feedback on the LCD display. This includes, but is not limited to, warehouse activities, inventory management, asset management, and postal applications.

Additional information

Form factor

Reading type

Operating system

Display

112 x 64 pixels, Graphic monochrome LCD with backlight

Keypad

Communication interface

,

Bluetooth

Ver. 2.1, class 2, SPP and HID

IrDA

Ver 1.2 physical layer, baurate 2400 bps – 115.2 kbps

Light source

Green aiming LED, 2 illumination red LEDs

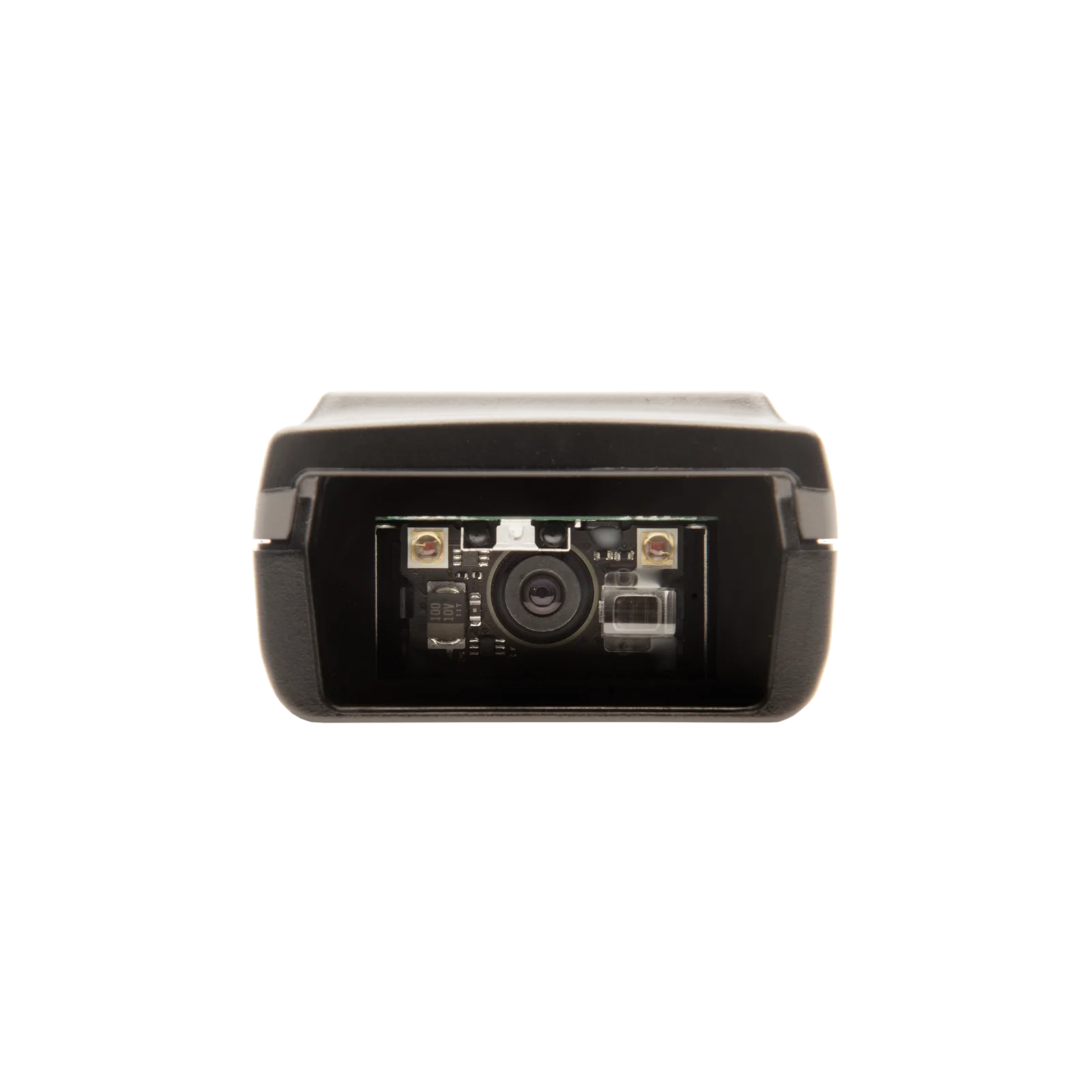

Scan method

CMOS area sensor, 752 x 480 pixels

Scan rate

up to 60 fps

Drop test

1.5 m / 5 ft drop onto concrete surface

IP rating

Battery

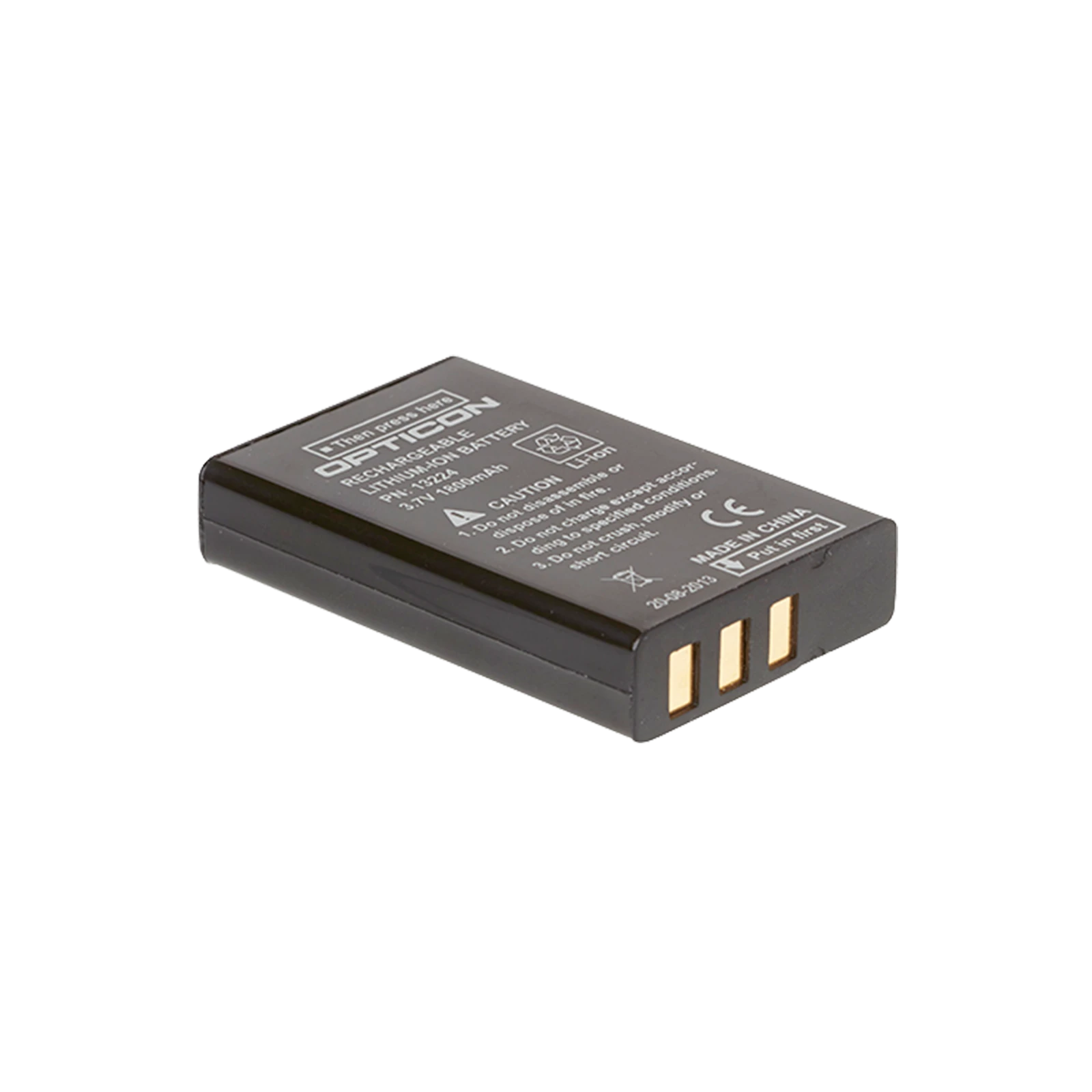

Lithium-Ion 3.7V 1800 mAh

Dimensions (WxHxD)

44 x 140 x 25 mm / 1.73 x 5.51 x 0.98 in

Weight body

Ca. 115 g / 4.1 oz (excl. battery)

Product compliance

CE, FCC, RoHS, IEC62471

Enclosed

Wrist strap, standard battery

Sold separately

Rechargeable battery, CRD-9723RU cradle (serial communication, charging), power supply for cradle
