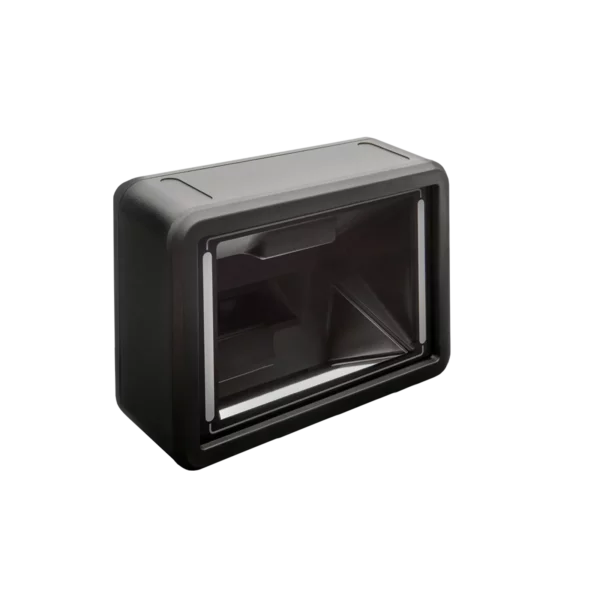

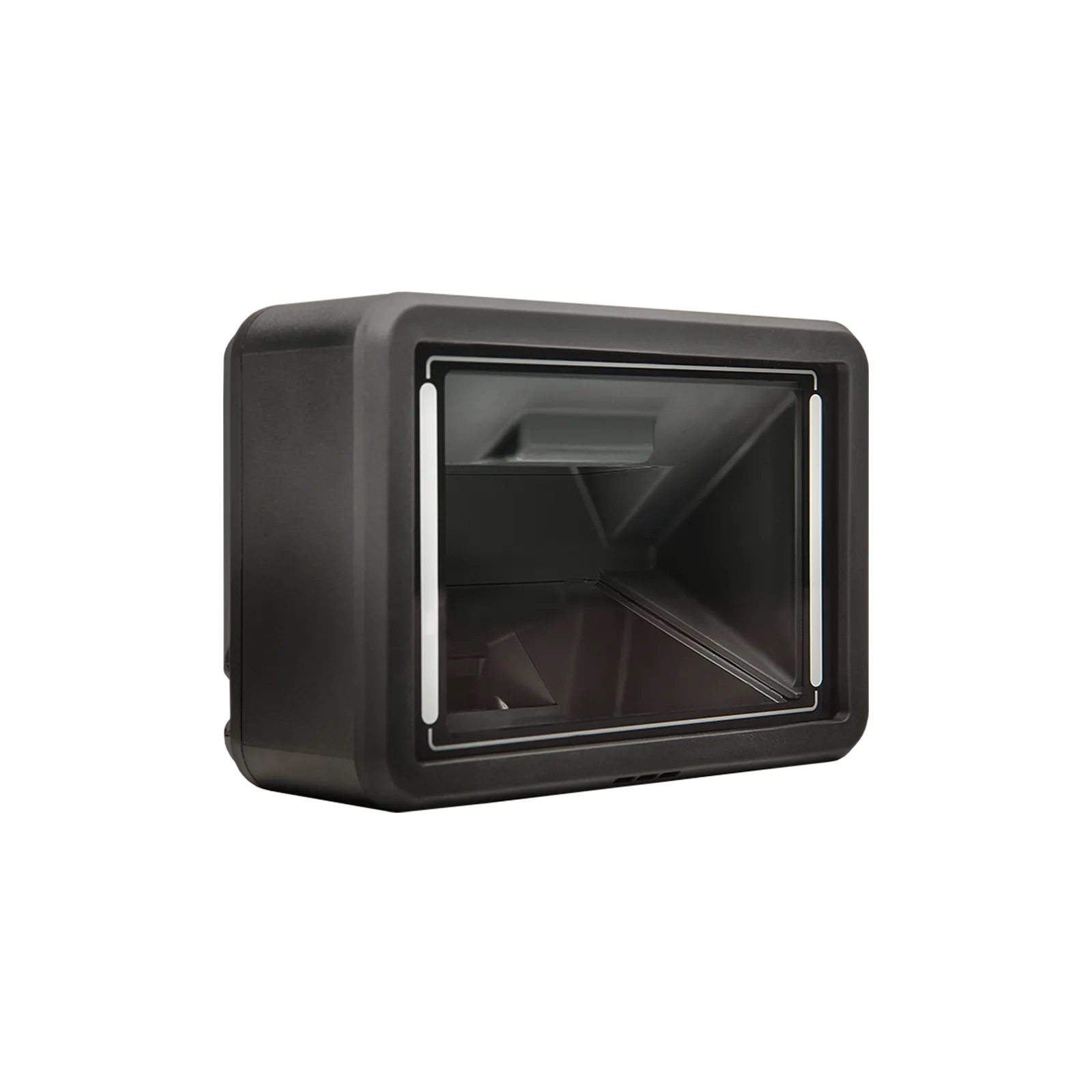

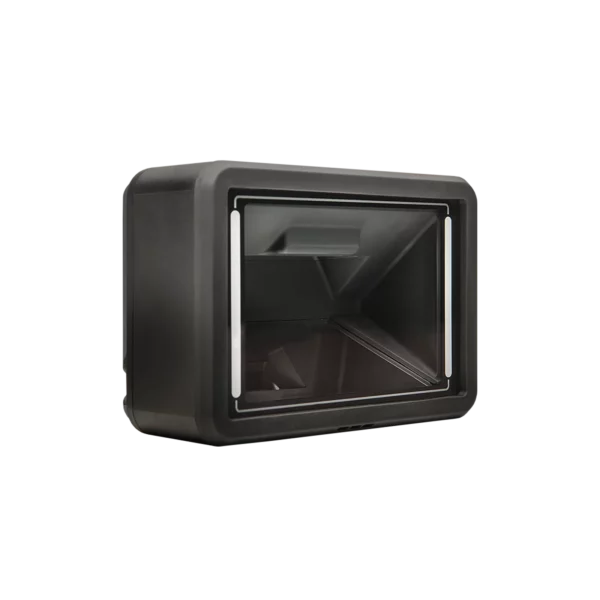

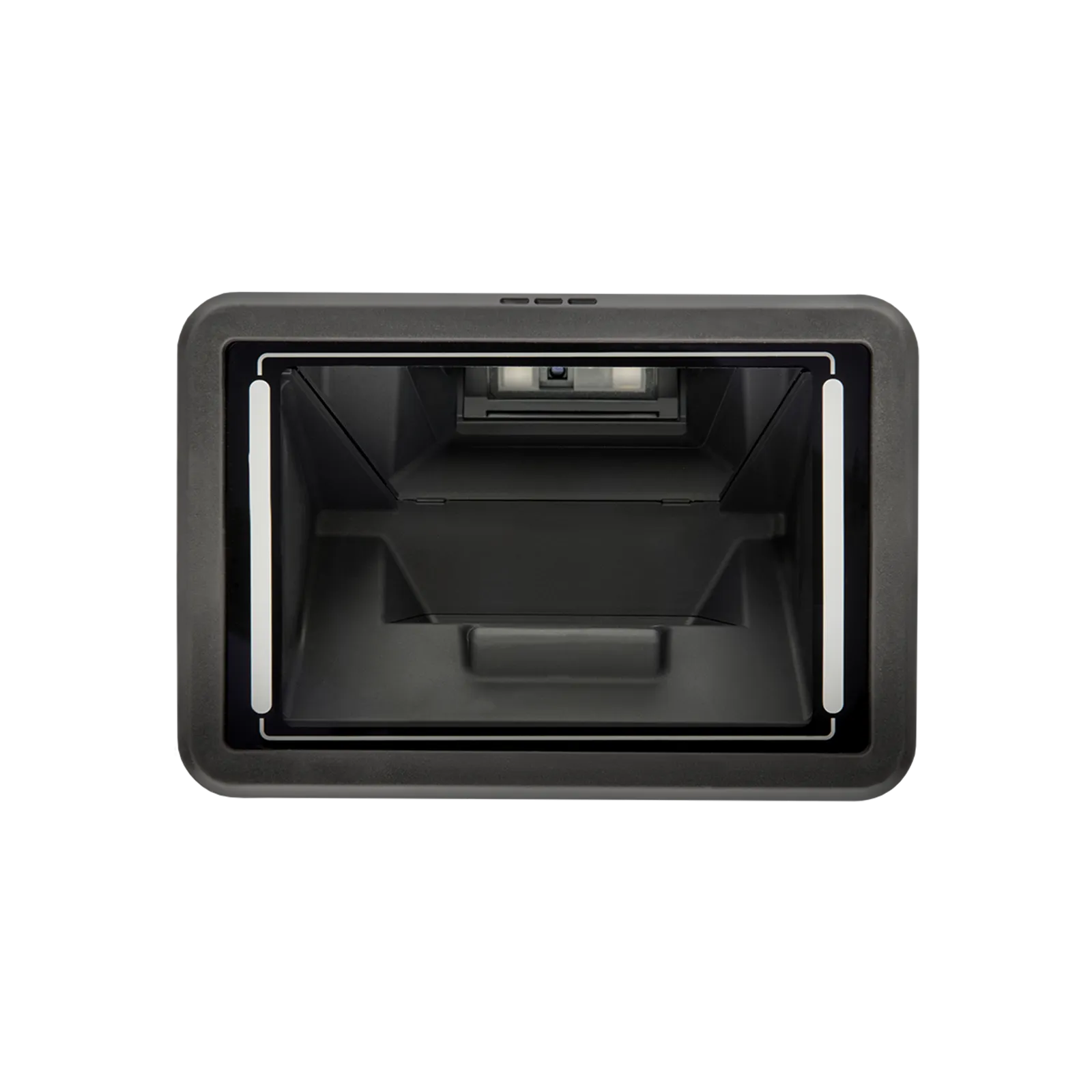

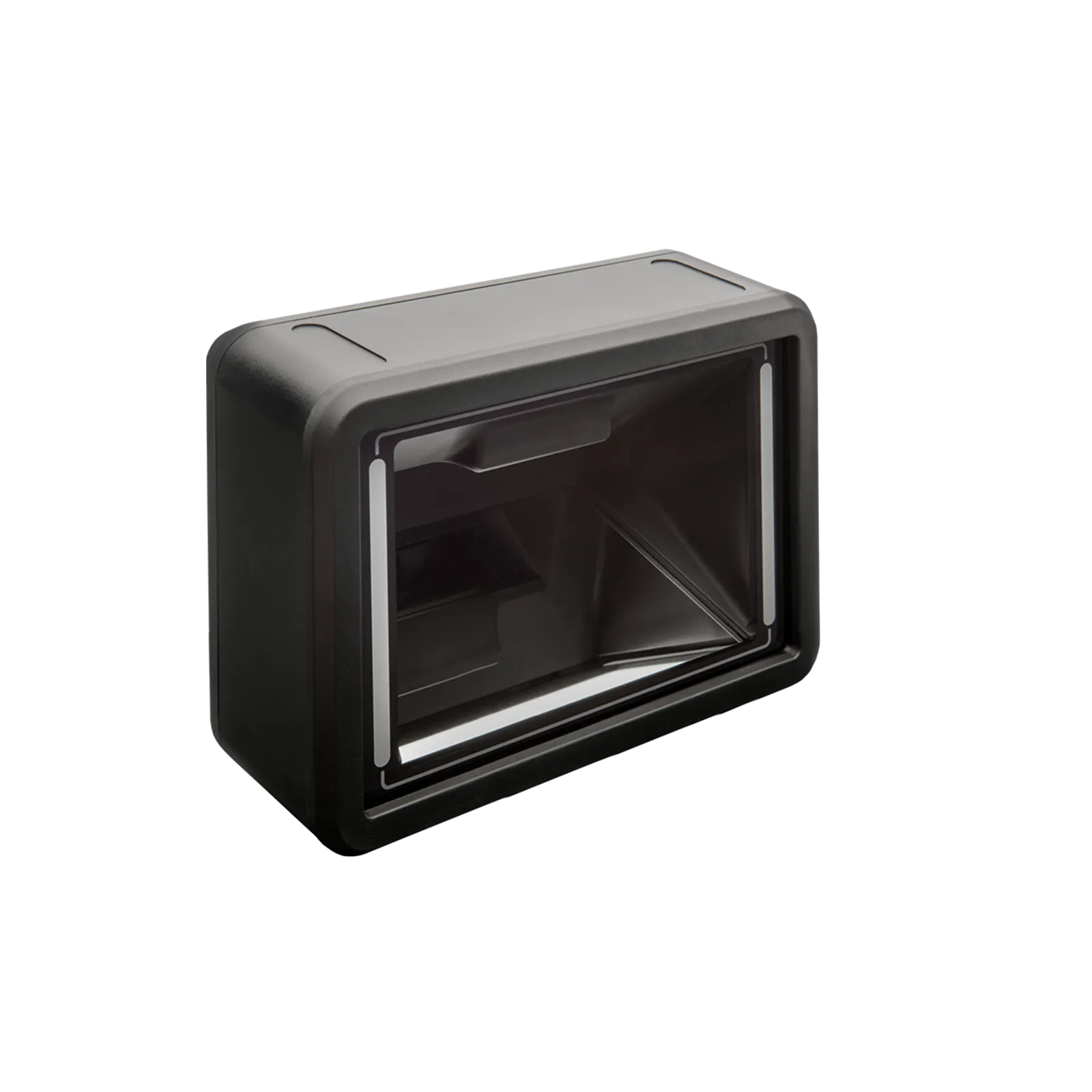

High speed, omnidirectional scanner


The M-11 is an omnidirectional scanner for on top of the counter as built-in. This scanner comes with high performance 2D CMOS Imager along with a well thought out design. The M-11 can be used as built in scanner in parking areas or as a stationary scanner on the counter in retail. Because the M-11 can be embedded into your built in scanning solution, the M-11 is perfectly suited for scanning passports and ID as well. Of course these are just examples as the M-11 can bring a scanning solution to any business. The M-11 is an omnidirectional presentation scanner, which means the scanner will scan the product or ticket from any direction. This enables an easy and efficient transaction, because the barcodes are scanned whichever way you hold them in front of the scanner.

The M-11 is an extraordinary product in Opticon’s range. The M-11 is the presentation scanner, combining a powerful 2D CMOS Imager with a stylish design and omnidirectional capabilities. The scanner can be triggered manually or automatically, scanning at a maximum speed of 120 fps. With this scanner you can scan hands-free, just position the scanner on you counter or desk and move the barcode in front of the imager. The scanner will do the rest of the work.

The scanner is also durable with a rating of IP42 and a drop resistance of 1.5m upon concrete. The communication is USB and the black color makes it suitable for any counter or embedded in your scanning solutions for ticketing or passport and ID scanning at customs, gates, schools, prisons and so on!

The M-11 comes with the following features:

  • Supports all common 1D & 2D codes
  • Omnidirectional scanning
  • Imaging for mobile coupons
  • 360° high speed reading
  • High speed scanning; 120 fps
  • Several trigger options

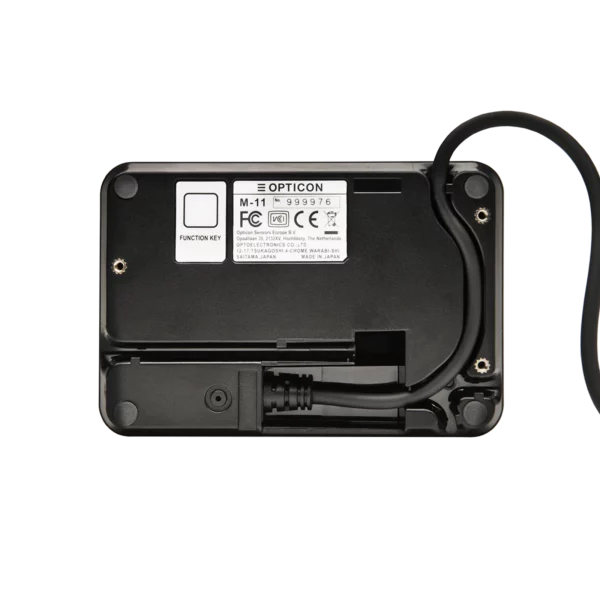

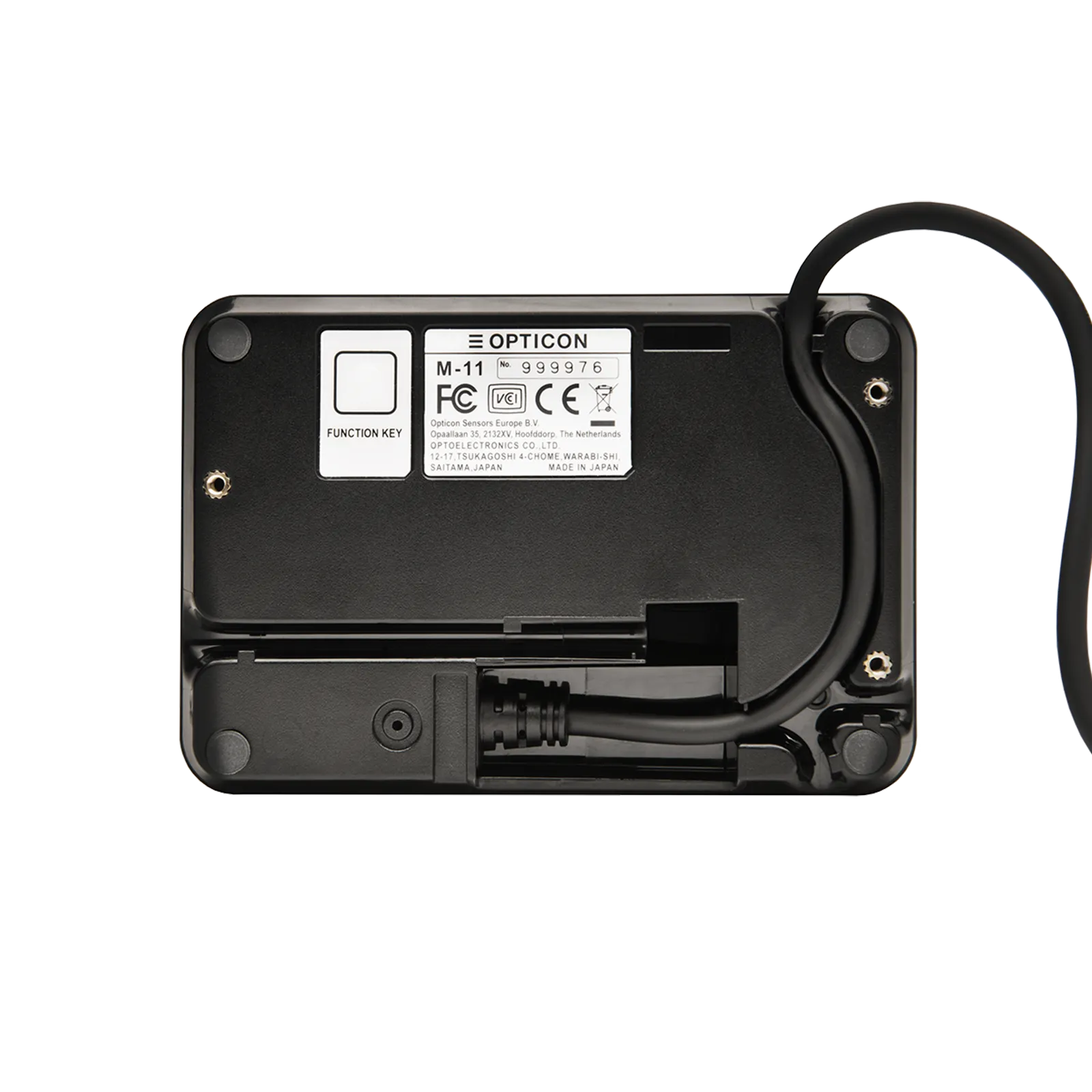

  • Flexible cable outlet – 4 directions

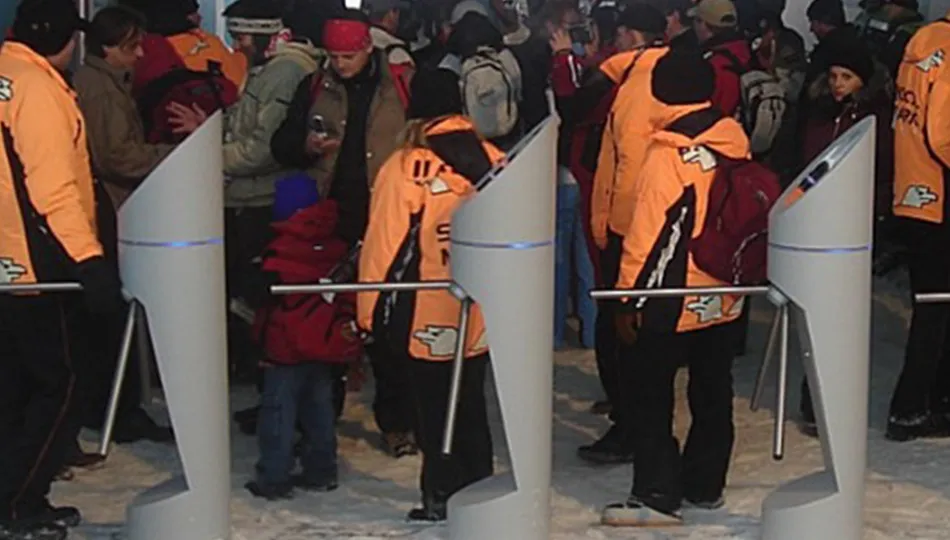

The M-11 is perfectly suitable for parking areas and ticketing among other applications. The combination of an impressive design, ease of use and an excellent price-performance ratio makes the M-11 the ideal solution for point-of sales (POS) check-out applications, reading barcodes from mobile phones in mobile marketing applications and document handling within banks and post offices.

Additional information

Form factor


Reading type

Communication interface



D-Sub 9 pin connector with external power
supply, 300 bps ~115200 bps


Full-speed 12Mbps (HID/COM)

Light source

2 warm white aiming LEDs

Scan method

Monochrome CMOS area sensor, 1280 x 800 pixels

Scan rate

Up to 120 fps

Drop test

1.5 m / 5 ft drop onto concrete surface

IP rating

Dimensions (WxHxD)

84.4 x 48 x 124.4 mm / 3.32 x 1.89 x 4.9 in.

Weight body

Ca. 220 g / 7.44 oz

Product compliance

CE, FCC, VCCI, IEC62471:2006, EN55032, EN55024, RoHS
